Yamaha DT175D 1992 Factory Service Manual (P/N 3FJ-ME1)

Yamaha DT175D 1992 factory service manual, P/N 3FJ-ME1, 1st Edition (August 1991), for model code 3FJ5. Covers scheduled maintenance, engine overhaul, carburetion, chassis repair, electrical testing, and troubleshooting.

Printable PDF, Chapter Bookmarks and Diagram Detail

Search, navigation and wiring detail: PDF text search is unavailable. Four embedded bookmarks open paired chapter groups. Small labels in the main circuit diagram are readable when enlarged, but dark banding obscures some details in the repeated system diagrams.

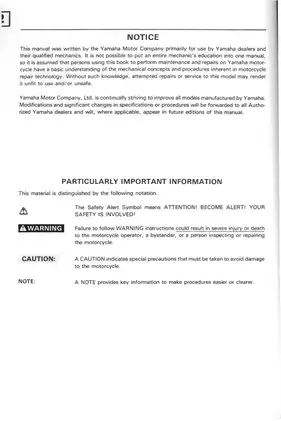

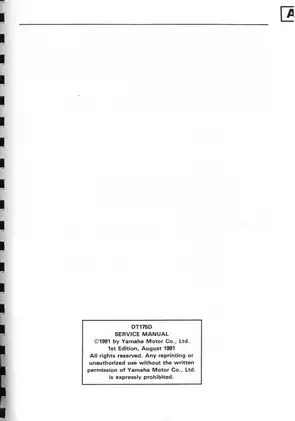

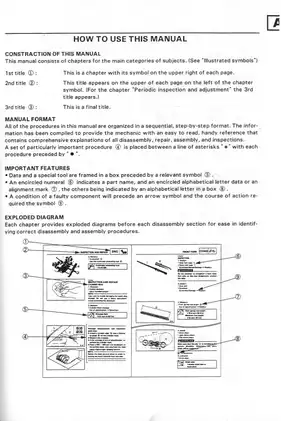

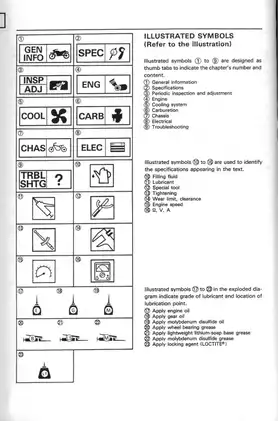

Supplied as one printable, English-language 236-page PDF, including six opening pages containing the original cover, publication details, user guidance, symbols, and index.

Engine Overhaul, Chassis Service and Electrical Fault Finding

These selected coverage highlights summarize the main workshop areas. Additional topics include cable and lever lubrication and checks of the speedometer drive gears.

• Engine and drivetrain: Step-by-step procedures for engine removal, internal disassembly, inspection, repair, reassembly, and refitting, including clutch, kick-starter, transmission, and shifter work.

• Autolube and ignition timing: Pump stroke adjustment, air bleeding, output checks, drive-component inspection, and ignition-timing checks with the specified test equipment.

• Carburetor and reed valve: Mikuni VM26SS removal, teardown, cleaning, inspection, assembly, installation, float-height and fuel-level adjustment, plus reed-valve service.

• Wheels and drum brakes: Wheel removal and installation, bearing and seal replacement, brake-shoe and drum inspection, brake assembly, and static wheel balancing.

• Suspension and steering: Front-fork overhaul, steering-bearing and race replacement, handlebar installation, swingarm pivot service, and rear-shock removal, inspection, and replacement.

• Electrical diagnosis: Circuit diagrams and test procedures for ignition, charging, lighting, and signals, with switch-continuity checks and symptom-based troubleshooting charts.

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes familiarity with motorcycle repair concepts and access to the specified tools and measuring equipment.

Periodic Maintenance and Adjustment

The periodic inspection chapter combines the maintenance schedule with adjustment procedures and follow-up checks. Engine service includes idle and throttle-cable adjustment, spark-plug inspection, transmission-oil inspection and replacement, clutch adjustment, and air-filter cleaning.

Chassis maintenance covers brake adjustment, drive-chain slack and lubrication, steering-head adjustment, fork inspection, rear-shock preload, and tire and spoke checks. Battery and fuse inspection, headlight aiming, and bulb replacement are also included.

Working on vintage motorcycles involves inherent physical risks; secure support is especially important during wheel, steering, and suspension work.

Internal Engine, Clutch and Transmission Repair

The overhaul chapter follows the engine from removal through inspection and reassembly. Inspection coverage includes cylinder-head warpage and resurfacing, cylinder and piston measurements, piston rings, piston pins and bearings, and crankshaft condition.

Clutch and shifting components: The wet multi-disc clutch section covers friction plates, clutch plates, springs, housing, boss, push lever, and push rods. Related sections inspect the primary drive gear, kick axle and kick idle gear, shift shaft, shift forks, transmission shafts and gears, and tachometer gear.

Factory wear limits, clearances, runout checks, and component-specific torque tables support decisions about reusing or replacing internal parts. Reassembly guidance includes the clutch-plate indexing pattern, pressure-plate alignment, CDI magneto installation, and transmission-operation checks.

Crankcase precautions address forced separation and damage to mating surfaces, with checks for interference involving the transmission and shift components during reassembly.

Carburetor, Reed Valve and Oil Injection

The Mikuni VM26SS procedures distinguish float-height measurement from running fuel-level checks and include needle-valve, valve-seat, jet, throttle-valve, and starter-plunger inspection.

Reed-valve coverage includes bending and stopper-height checks, assembly orientation, the carburetor joint, and the energy-induction connection. The gasket warning explains how an intake leak can cause unexpected engine acceleration.

Autolube service includes delivery-line and seal inspection, pump-output checks, and bleeding requirements after the oil supply has run dry or the system has been disconnected.

Fork, Steering and Rear Suspension Work

Front-fork instructions cover damper-rod removal, tube and spring inspection, seal installation, oil filling, and refitting. Steering-head procedures include bearing-race replacement and the staged ring-nut adjustment.

Swingarm service addresses pivot play, collars, shims, seals, bearings, and bushings. Rear-shock coverage concerns removal, inspection, replacement, and handling precautions; the nitrogen-charged cylinder must not be opened. Drive-chain and sprocket sections add wear assessment, replacement, and installation guidance.

Ignition, Charging and Symptom Diagnosis

The electrical specifications identify the 3BN/Yamaha CDI unit and F4T202/Yamaha magneto, helping match the documentation to the installed ignition hardware.

For no-spark or intermittent-spark faults, the test sequence covers the plug cap, ignition coil, main and engine-stop switches, neutral and sidestand switches, pickup coil, source coil, wiring, and CDI connections. Charging diagnosis separates battery, charging-coil, wiring, and rectifier/regulator checks before component replacement.

The DT175D circuit diagram, wire-color legend, and ignition, charging, lighting, and signal-system diagrams accompany the electrical tests. Separate probable-cause charts cover hard starting, poor running, shifting faults, clutch slip or drag, kick-starter problems, weak braking, fork leakage, unstable handling, and overheating.

Assembly Views and Factory Tool References

Exploded views cover the crankshaft/piston, transmission/shifter, CDI magneto, clutch/primary-drive, carburetor/reed-valve, and wheel assemblies. Cable-routing drawings and lubrication charts support reassembly.

Tool references include the inductive timing light and tachometer, universal clutch and rotor holders, piston-pin puller, and crankshaft installation tools. The flywheel puller is identified as 90890-01189 and the crankcase separating tool as 90890-01135.

Selected Clutch Wear and Charging-Test Values

For clutch inspection, the manual specifies friction-plate thickness of 2.9–3.1 mm, with a wear limit of 2.7 mm. These values accompany the plate-inspection procedure.

The charging-system fault chart specifies 13.3–15.3 V at 3,000 rpm, measured at the battery. The chart connects this voltage check with charging-coil, wiring, and rectifier/regulator diagnosis.
