Honda CM185T 1978–1979 Service Manual (P/N C8049A)

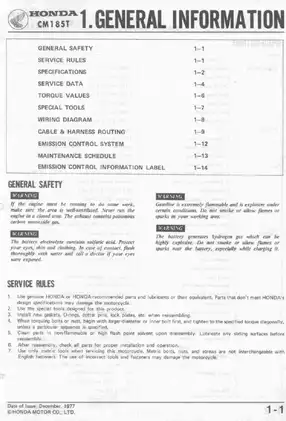

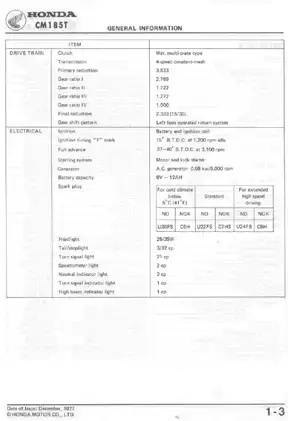

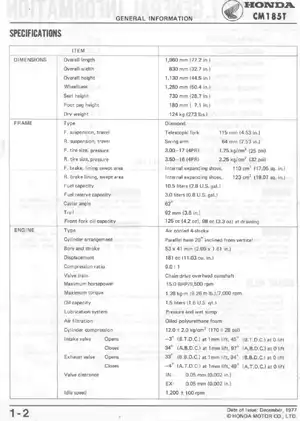

• Model and document coverage: Covers 1978-1979 Honda CM185T Twinstar motorcycles beginning with frame number F/N 2000014, fitted with the 181 cc air-cooled four-stroke parallel twin and 4-speed constant-mesh transmission; factory issue dated December 1977 in a 207-page PDF.
• Engine repair: Documents engine removal and installation, rocker-arm and camshaft removal, cylinder-head and valve overhaul, valve-guide replacement and seat refacing, plus cylinder and piston inspection and installation.
• Clutch and starting systems: Covers in-frame service for the clutch, oil pump, gearshift linkage, kick starter, contact breaker, A.C. generator, starter clutch, and starter motor.
• Internal drivetrain repair: Shows crankcase separation, transmission removal and disassembly, crankshaft and ball-bearing replacement, shift-fork orientation, balancer indexing, transmission reassembly, and final crankcase assembly.
• Chassis service: Includes front and rear wheels and brake panels, wheel bearings, telescopic fork and seal replacement, steering stem, swingarm, rear shocks, drive chain, and brake-pedal work.
• Fuel, electrical, and fault-finding: Provides PDSBA carburetor service and adjustment, charging, ignition, and starter tests, switch continuity tables, a full wiring diagram, system schematics, cable routing, and symptom-based troubleshooting charts.

Model-Specific Coverage

This Honda factory manual is suited to mechanically qualified owners and professional technicians who already have precision measuring tools, electrical meters, and the listed pullers, drivers, and compressors. Routine inspection and adjustment are accessible, but internal engine, valve-seat, fork, and electrical repair assumes workshop experience and proper support equipment.

Coverage is tied to F/N 2000014 and later. The manual also identifies a post-December 31, 1977 build state with a factory-pre-set carburetor pilot screw and an emission-control information label. Its wiring diagram notes a later-model headlight change, helping distinguish the applicable carburetor and electrical setup before adjustment or parts selection. This is a workshop service manual rather than an owner's guide; the maintenance schedule refers the pre-ride inspection to the separate Owner's Manual.

Engine and Drivetrain Repair Depth

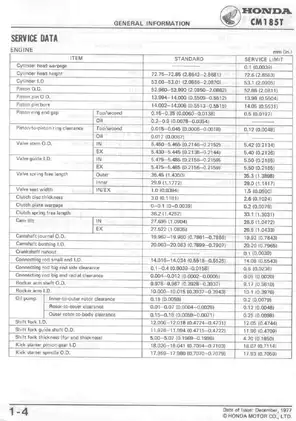

The engine chapters go well beyond scheduled maintenance. They cover removal from the frame, camshaft and rocker-arm work, cylinder-head disassembly, valve-guide replacement, valve-seat inspection and refacing, cylinder and piston repair, and the crankcase split required for transmission and crankshaft work. Inspection data addresses the head, valves, camshaft, rockers, cylinder, pistons, rings, connecting rods, clutch, oil pump, shift forks, shafts, gears, bearings, fork, brakes, swingarm, and rear shocks. Section-specific torque data, standard dimensions, service limits, lubrication requirements, and assembly checks support each repair area.

The factory tool chart identifies applications and tool numbers. Examples include clutch outer holder 07923-1070001, valve guide reamer 07984-0980000, piston ring compressor 07954-4190000, and rear shock absorber compressor 07959-3290001, along with the required Honda pullers, bearing drivers, pilots, and gauges.

Fuel, Chassis, and Electrical Systems

Carburetor coverage includes removal, top and throttle-valve disassembly, float and float-valve service, jet inspection, float-level adjustment, installation, idle and pilot-screw settings, and high-altitude correction. Chassis chapters handle drum-brake panels, wheel bearings, fork disassembly and seal replacement, steering-head service, rear-shock disassembly, swingarm bushings, chain and sprocket inspection, and brake linkage.

Electrical diagnosis is divided into the battery and charging system, points ignition, electric starter, and switches, lights, and horn. The procedures include stator and rectifier checks, charging tests, ignition-coil and condenser inspection, starter armature and field-coil tests, magnetic-switch checks, and switch continuity tables. The final troubleshooting chapter traces hard starting, loss of power, poor idle or high-speed performance, exhaust smoke, clutch and shifting faults, engine noise, pulling to one side, shock-absorber faults, brake problems, and drive-chain wear.

Diagrams, Cautions, and Workshop Reference

Among the most useful visual references are the full CM185T wiring diagram, cable-and-harness routing layouts, lubrication diagram, battery/charging circuit, ignition circuit, and electric-starter circuit. Exploded and sectional illustrations support the component procedures throughout the engine, transmission, steering, suspension, brake, and electrical chapters.

Two model-specific cautions matter during repair: driving the countershaft oil seal too deep can block its oil passage, while testing the silicon rectifier with a megger can damage the diodes. The manual also calls for the cylinder-head oil feed passage to remain clear and its O-rings and dowels to be installed correctly so the camshaft is not starved of lubrication.

Because the CM185T has no center stand, the chassis procedures specify rigid support when a wheel is raised or removed. Gasoline work, battery charging, and engine-running checks carry specific fire, ventilation, eye-protection, and carbon-monoxide warnings.
