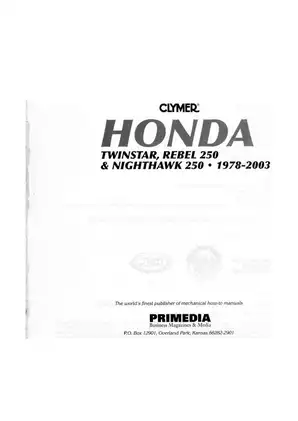

Honda Twinstar, Rebel 250 & Nighthawk 250 1978–2003 Repair Manual (P/N M324-5)

307 Pages • Printable PDF • 173.67 MB • Download

4.7starstarstarstarstar_half(3)
$17.79 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Models: Twinstar, Rebel 250, Nighthawk 250

Sub-models / Variants: Twinstar (CM185T, CM200T, CM250C; 4-speed constant-mesh transmission), Rebel 250 (CMX250C, CMX250CD (Limited); 5-speed constant-mesh transmission), Nighthawk 250 (CB250)

Model Years: 1978–2003 (1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003)


  • Cylinder head bolt torque (Rebel 250/Nighthawk 250): 10–14 N-m (7–10 ft-lb)

  • Cylinder head nut torque (Rebel 250/Nighthawk 250): 21–25 N-m (15–18 ft-lb)

  • Compression pressure (Rebel 250/Nighthawk 250): 14 +/- 2 kg/cm2 (199 +/- 28 psi), at sea level

  • Compression pressure (all other models): 12 +/- 2 kg/cm2 (170 +/- 28 psi), at sea level

  • Engine oil capacity (250 cc): 1.5 liters (1.6 U.S. qt.) at oil change

  • Fork oil capacity (250 cc, 1985-on): 238 cc (8.1 oz.)

  • Valve clearance (intake and exhaust): 0.05 mm (0.002 in.), cold engine

Honda Manual Features & Selected Content Preview

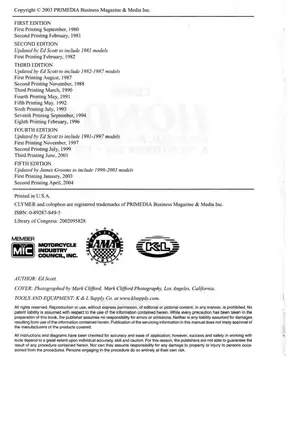

This independent Clymer service and repair manual (P/N M324-5), fifth edition, second printing (April 2004), covers Honda CM185T Twinstar (1978–1979), CM200T Twinstar (1980–1982), CM250C (1982–1983), CMX250C Rebel 250 (1985–1987 and 1996–2003), CMX250CD Limited (1986), and CB250 Nighthawk 250 (1991–2002). No models in this series were produced for 1984 or 1988–1990.

Text Search, Bookmarks, and Wiring Detail

Search and diagram access: Much of the repair text is OCR-searchable, but some tables and wiring labels are not. Embedded bookmarks link the main chapters, index, and wiring section; the later-model supplement has no separate bookmark. Small wiring labels require zooming, and the early diagrams are sideways.

One printable, English-language PDF contains 307 pages, including 12 opening pages, 291 numbered pages with the integrated supplement, a notes page, a maintenance log, one publisher catalog page, and the back cover.


Engine Overhaul, Electrical Tests, and Chassis Service

Selected coverage: These highlights sample the book’s repair content. Other topics include tire changing and frame stripping and repainting.

  • Troubleshooting and tune-up: Symptom-based starting, performance, noise, and handling checks; periodic lubrication, compression testing, valve adjustment, breaker-point service, and ignition-timing checks.

  • Engine repair: Step-by-step engine removal and installation, cylinder-head and camshaft work, valve service, cam-chain replacement, cylinder and piston inspection, oil-pump service, and crankcase disassembly.

  • Clutch and transmission: Wet multi-plate clutch removal, inspection, and assembly; in-frame external shift-mechanism service; gearbox teardown; and gearshift drum and fork inspection.

  • Fuel and exhaust: Carburetor cleaning, inspection, and reassembly; float and accelerator-pump adjustments; choke and pilot-circuit service; fuel-tank and exhaust removal; and model-specific emissions equipment.

  • Electrical diagnosis: Alternator, regulator/rectifier, ignition-coil, and pulse-generator tests; starter inspection and fault charts; lighting, switches, and starting-interlock circuits; plus model-specific wiring diagrams.

  • Wheels and suspension: Wheel and hub service, steering-head bearings, telescopic-fork disassembly, swingarm inspection, shock-spring service, and chain- and belt-drive rear-wheel arrangements.

  • Brakes: Drum-brake disassembly, lining inspection, disc and pad replacement, master-cylinder service, caliper removal, brake-hose replacement, and hydraulic bleeding.

Clymer wrote the procedures for readers who may be working on the bike for the first time, while directing press work and precision measurement to appropriately equipped repair shops.

Engine and Drivetrain Differences

The air-cooled SOHC parallel twins use chain-driven camshafts, with displacement ranging from 181 cc on the 185 models to 234 cc on the 250s. The main chapters distinguish the stressed-engine frame on 1978–1983 machines from the semi-double-cradle frame on 1985-on Rebels.

Engine coverage also includes rocker-arm service, crankshaft and connecting-rod inspection, alternator removal, and kickstarter repair where fitted, with wear limits and break-in guidance after overhaul. Valve-guide replacement, valve-seat reconditioning, and pressed-crankshaft work are directed to a dealer or machine shop.

The cylinder head and camshaft must be removed only at room temperature to avoid warpage. Valve lapping or grinding is expressly excluded for the Rebel’s coated valve faces.

Clutch variations: The Rebel clutch adds a judder spring and seat. The CMX250C and CMX250CD Limited differ only in appearance, so the same mechanical procedures apply.

Drive-belt handling: The 1983 CM250C is the belt-drive exception; the remaining covered models use chain drive. Lubricants and petroleum-based cleaners can damage that belt.

Carburetors and Later-Model Electrical Changes

The fuel chapter distinguishes slide-valve carburetors on the 185/200 models from CV carburetors on the 250s. U.S. crankcase-breather and California evaporative-emissions equipment receive separate coverage.

Electrical versions: The book separates the 6-volt systems used through 1980 from the 12-volt systems fitted from 1981 onward, along with early breaker-point ignition and later CDI/ICM equipment.

1991-and-later supplement: Later Rebel and Nighthawk changes include sealed batteries, Nighthawk charging-system checks, ICM ignition, clutch/sidestand/neutral starting interlocks, revised piston-ring and oil-pump data, and the left-side front brake disc on later Rebels.

When a procedure is unchanged, the supplement directs the reader back to the main chapter. This model-specific organization helps you select the applicable parts, test circuit, and repair procedure before working across similar-looking versions.

Illustrations and Workshop Equipment

Hundreds of photographs, drawings, and exploded views accompany the text. Examples include the Rebel 250 Clutch Assembly, 5-Speed Transmission Assembly, and CM185T/CM200T Carburetor Assembly, plus the Rebel 250 Starting System, Rebel 250 Front Fork Assembly, and Front Master Cylinder and Brake Hose.

The wiring section covers the listed models and years, with individual CM200T yearly diagrams and separate later CB250 and CMX250C layouts.

Quick-reference pages and chapter-end tables supply component-specific torques, capacities, lubricants, wear limits, clearances, compression and tune-up data, carburetor settings, brake and suspension measurements, and electrical output, resistance, and continuity values in U.S. and metric units.

Special tools include Honda flywheel pullers 07733-002000 and 07733-002001, with K&N 82-0100 listed as an equivalent; fork-seal driver 07747-0010100 with model-specific attachments; and shock-compression tool 07959-3290001 with the appropriate holder or attachment.

Service limits: The sealed rear-shock damper is replacement-only, and caliper rebuilding is referred to a dealer, repair shop, or brake specialist.

Securely support the motorcycle before wheel or suspension work and disconnect the battery before ignition or electrical disassembly. Compressed shock springs and hydraulic brakes require the specified equipment and safety precautions.

Examples of Later-Model Carburetor Settings

The supplement lists a carburetor float level of 18.5 mm (0.73 in.) for both later Rebel 250 and Nighthawk 250 models, alongside market-specific carburetor identification and jet specifications.

For warm-engine tuning, specified idle speed is 1,400 ± 100 rpm for the later Rebel 250 and 1,500 ± 100 rpm for the Nighthawk 250.
