1994–1999 Daihatsu Cuore L500, L501 Service Manual (P/N 9198-LE)

• Daihatsu Service Manual No. 9198-LE, published January 1995, covers the L500 and L501 in a 21-section, 891-page PDF set divided into 22 files.
• Factory model tables distinguish ED-10 carbureted general-spec vehicles, EF-EL EFI versions for Singapore, Hong Kong, and Australia, and ED-20 EFI versions for Europe, including manual and automatic builds.
• Engine repair procedures cover tune-up, timing-belt service, cylinder-head overhaul, engine removal, block teardown, piston and crankshaft inspection, oil-pump work, reassembly, and mounting.
• Fuel and electrical diagnosis includes carburetor overhaul, EFI codes and fail-safe operation, ECU and sensor tests, ignition, starter and alternator repair, connector checks, harness inspection, and short-circuit tracing.
• Both driveline types receive bench-service coverage: clutch and 5-speed manual transaxle work, plus hydraulic testing, valve-body service, clutch and brake inspection, planetary gear repair, output-shaft work, and differential overhaul for the 3-speed automatic.
• Chassis and body sections document drive shafts, suspension and alignment, brake repair, steering-column and rack service, body alignment, doors and glass, lighting, instruments, heater/ventilation, wipers, and wiring layouts.

Exact Coverage and File Breakdown

This 891-page PDF set is the complete factory service manual, not an automatic-transmission-only extract. It contains a 2-page foreword and all 21 sections listed by Daihatsu.

Section page counts (factory codes): Foreword 2; GI 43; MA 45; EM 127; EC 13; EF 87; FU 35; CO 27; LU 15; IG 29; ST 24; CH 17; CL 14; MT 49; AT 100; FS 30; RS 16; BR 40; SR 24; BO 48; BE 58; HW 48.

The vehicle table identifies L501RS-GMDS and L501LS-GMDS as ED-10 carbureted general-spec models; L500RS-FMDEQ, L500RS-GMDEQ, and L500RS-GHDEQ as EF-EL EFI models for Singapore, Hong Kong, and Australia; and L501LS-FMDKW, L501LS-FHDKW, L501LS-GMDKW, and L501RS-GMDKW as European ED-20 EFI models. The model-code key separates engine family, steering position, transmission, fuel-system build, and destination. It also shows the manufacturer's-plate location and first chassis serial reference JDAL501S000000001, making model-code and chassis verification more reliable than a broad year range.

Engine, Fuel, and Electrical Repair

The Engine Mechanical section treats ED-10, ED-20, and EF-EL applications separately where procedures differ. Major work includes timing-belt service, cylinder-head repair, engine removal, block teardown, piston and connecting-rod inspection, crankshaft and flywheel work, oil-pump overhaul, seal replacement, and final assembly. Maintenance, cooling, lubrication, ignition, starting, and charging chapters add scheduled checks, in-vehicle tests, component repair, torque tables, wear limits, and adjustments.

Fuel coverage is divided between the ED-10 carburetor and EF-EL/ED-20 EFI systems. Carburetor coverage includes removal, overhaul, adjustment, and installation. EFI material adds diagnosis-code output, fail-safe strategy, volt/ohmmeter and ECU circuit checks, relay and sensor diagnosis, idle control, injectors, the automatic-transmission neutral-start input, and the EF-EL air-conditioning input circuit. Emission-control material is separated by application.

Transmission, Chassis, and Body Systems

The clutch and 5-speed manual transaxle chapters cover pedal and cable adjustment, release components, clutch inspection, complete gearbox disassembly and reassembly, input and output shafts, bearings and gears, differential repair, and the shift-and-select mechanism.

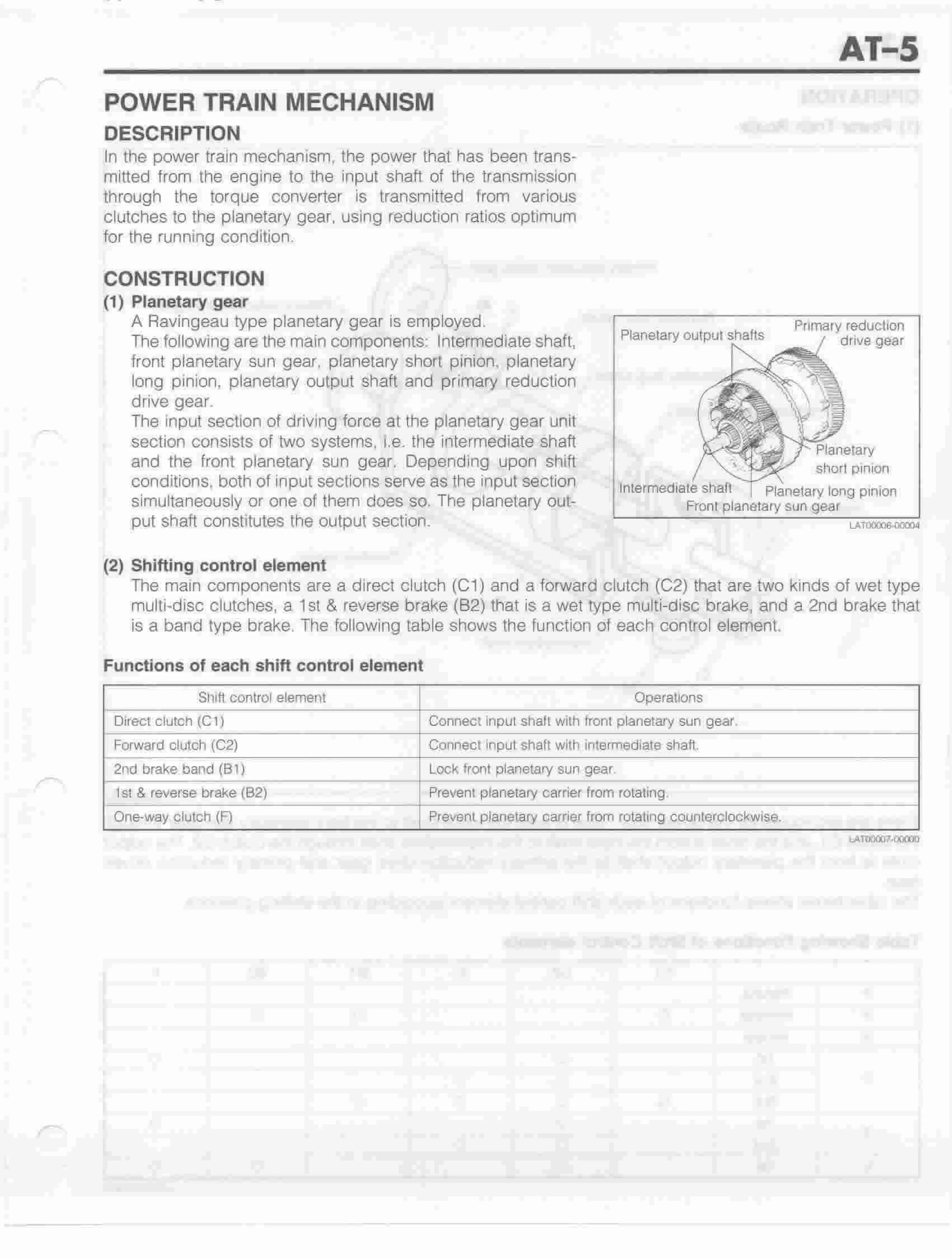

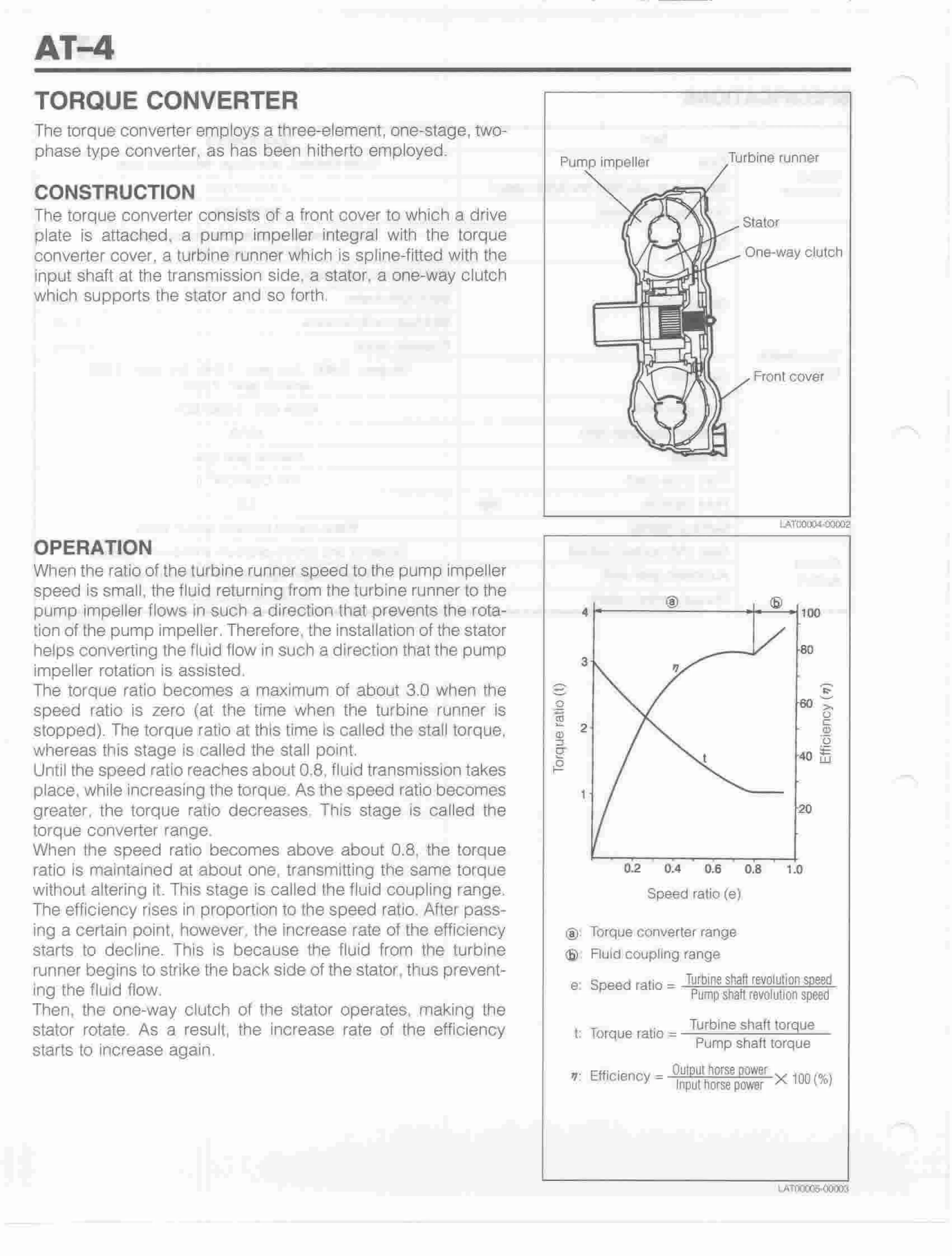

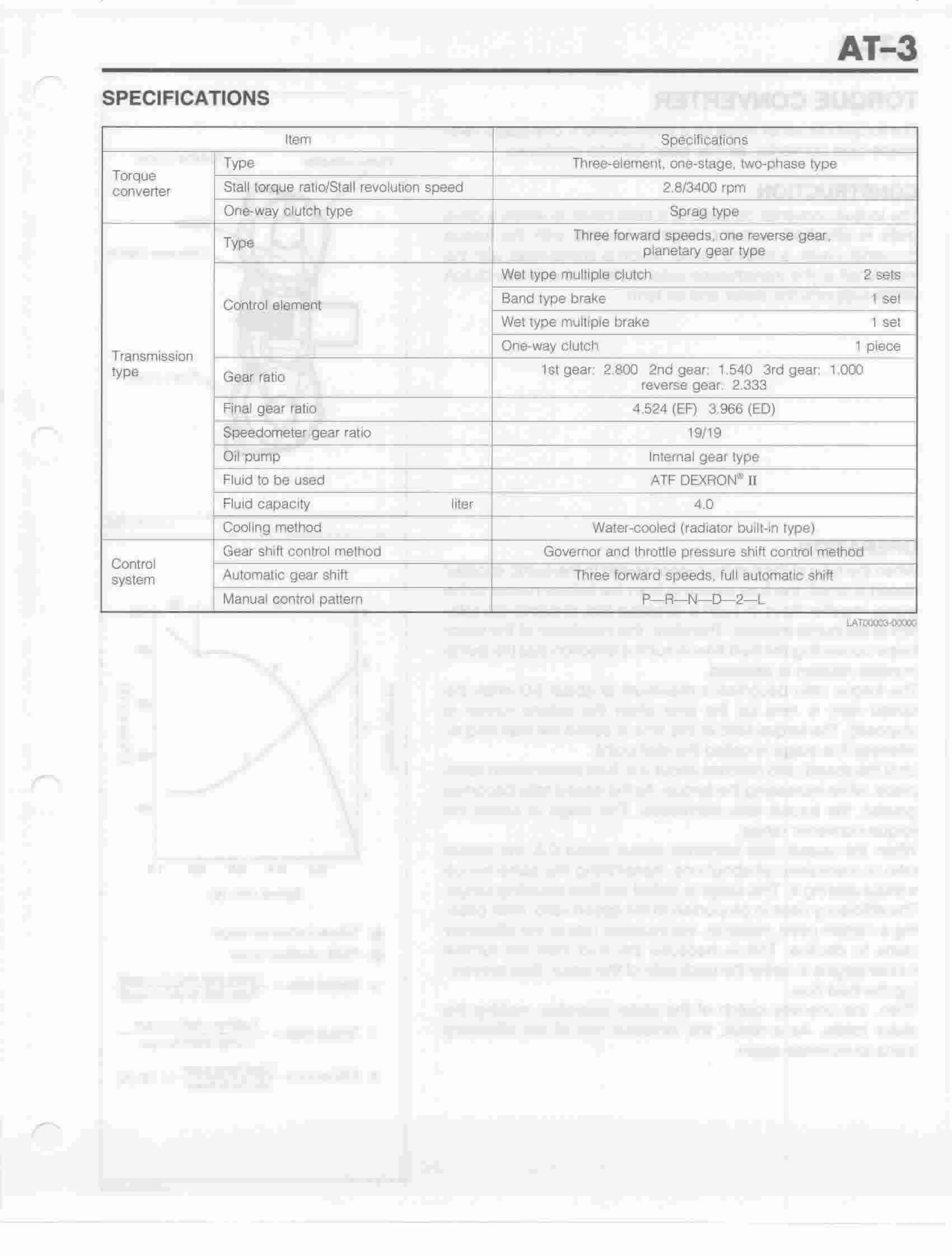

The 100-page automatic-transmission section carries the hydraulically controlled 3-speed transaxle from functional theory through testing and bench overhaul. It explains torque-converter operation, the planetary power train, direct and forward clutches, the second brake band, first/reverse brake, the one-way clutch, reduction drive, and power flow in each range. Hydraulic coverage reaches the oil pump, valve body, regulator and manual valves, throttle and downshift controls, two-stage governor, shift valves, and accumulators.

Testing includes ATF and linkage checks, throttle-cable and neutral-start-switch adjustment, stall and time-lag tests, line, throttle, lubrication, clutch, brake and governor pressure checks, fault charts, range-by-range road testing, and shift-characteristic diagrams for ED-20, EF-EL, and EF-CL applications. Bench overhaul covers the valve body, governor, clutch packs, band and drum, planetary assembly, oil pump and stator shaft, output shaft and reduction drive, parking lock, bearings, seals, case components, and differential.

The AT section provides in-vehicle diagnosis and bench overhaul, but it has no stand-alone vehicle-level transaxle removal and installation chapter. The torque converter is covered for construction and operation rather than internal rebuilding.

Chassis repair extends to hubs and drive shafts, front and rear suspension, wheel alignment, brake bleeding, booster, master-cylinder and caliper work, parking-brake adjustment, and steering-wheel, column, and rack-type gear service. Body and electrical sections cover alignment, doors, glass and regulators, trim, seats and belts, fuel tank and exhaust, instruments, lighting, heater controls, horn, wipers, defogger, radio, and circuit checks.

Diagrams, SSTs, and Scope Notes

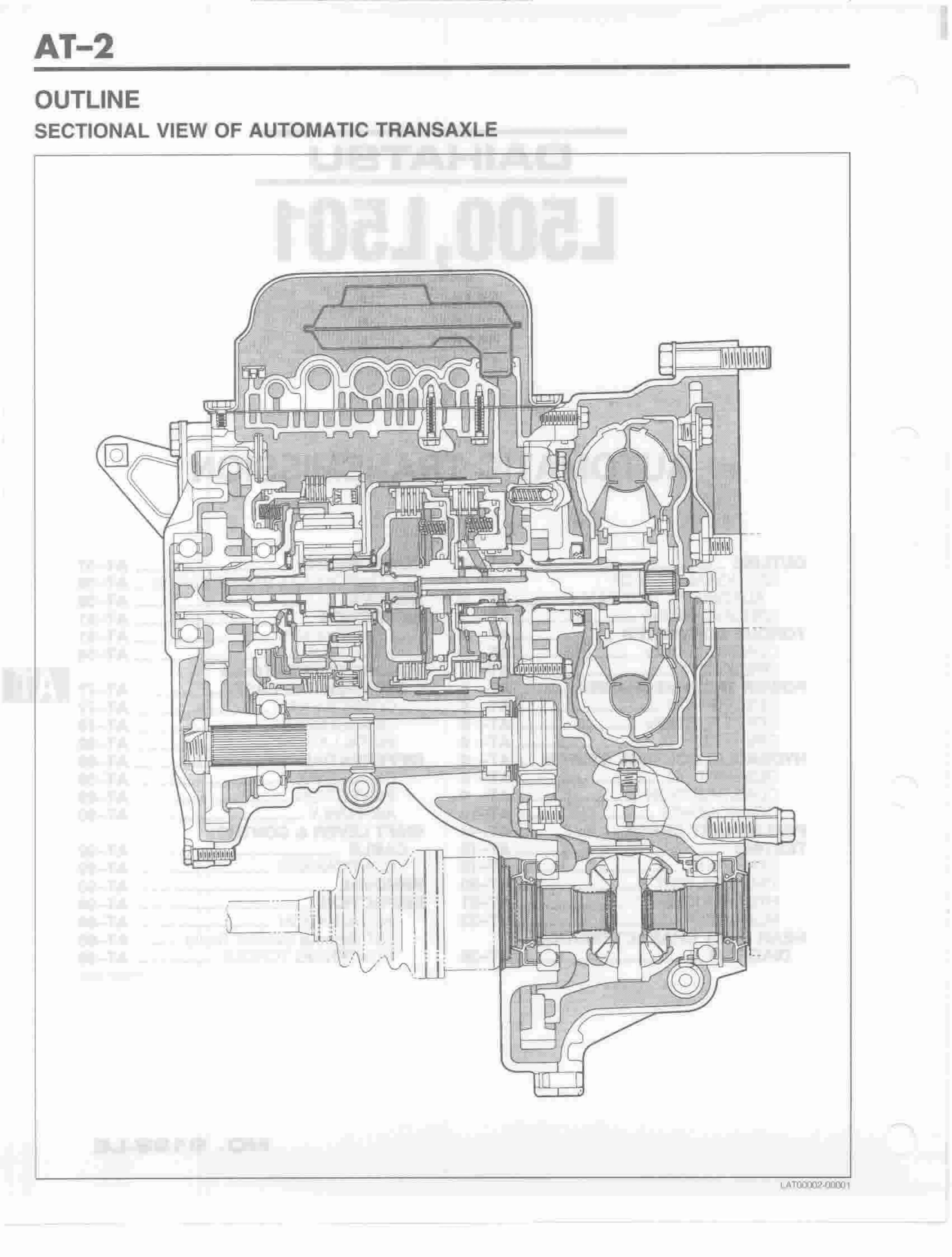

Visual references include the model-code chart, timing-belt and cylinder-head component views, automatic-transaxle sectional and hydraulic diagrams, EFI diagnostic charts, brake component section views, and engine/cowl harness routing with ED-10 and ED-20 wiring diagrams.

Representative automatic-transmission SSTs include the 09350-87202-000 tool set, 09302-87201-000 neutral-start-switch adjustment gauge, 09351-87208-000 clutch measuring tool, and 09351-87216-000 clutch-piston spring compressor. Applicable sections also provide tightening torques, approved fluids, capacities, hydraulic and electrical test data, clearances, wear limits, and adjustment specifications.

The manual identifies several repair traps. Turning the automatic transaxle over after oil-pan removal can carry settled debris into the valve body; damage to the oil-reserve plate during output-shaft bearing work, or poor locknut staking, can cause abnormal noise after assembly. Electrical sections warn that damaged connector terminals and repeated unnecessary disconnection can create poor continuity or intermittent faults.

In the Body Electrical index, Door Lock System, Power Windows, and Remote Control Door Mirror are marked N/A; mechanical door and lock work remains in the Body section. Apart from the EF-EL EFI input check, there is no dedicated air-conditioning repair chapter. These factory procedures assume experienced service personnel, correct vehicle support, electrical isolation, ventilation, and safe handling of fuel, brake, transmission, spring, and press operations.
