1997-2002 Toyota Corolla Service Manual
Shop manual for Toyota Corolla Saloon, Hatchback, Liftback & Estate including special/limited editions, 1.3L, 1.4L, and 1.6L petrol engines. PN 09248-55020
Manual Preview

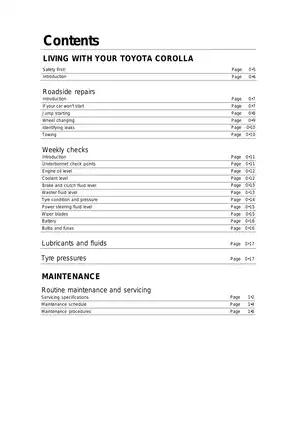

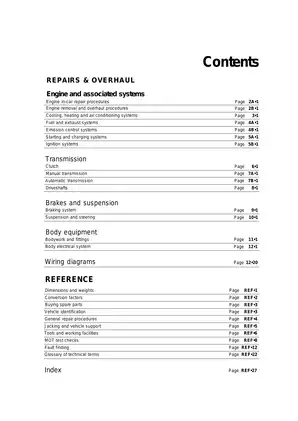

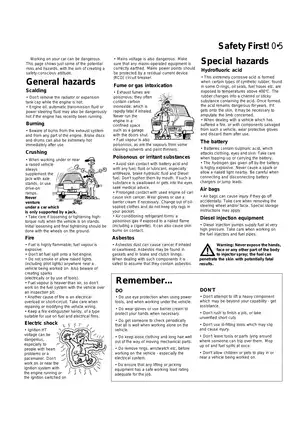

Sample pages from the 1997-2002 Toyota Corolla Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Comprehensive Workshop Reference Manual: Toyota Corolla (1997-2002)
Shop manual for Toyota Corolla Saloon, Hatchback, Liftback & Estate including special/limited editions, 1.3L, 1.4L, and 1.6L petrol engines. PN 09248-55020 | Series: Haynes Binder.
- Measured Voltage Specs: 13.9 to 15.1 volts provides the standard charging output parameters.
- Established Thermal Limits: 82°C establishes the optimal operating temperature threshold for the thermostat.
- Factory Compression Pressure: For 1.3L 4E-FE, 10.0 bar signifies the minimum acceptable cylinder compression value Framework.
- Integral Torque Settings: 20 Nm signifies the torque required for the intake camshaft to cylinder head bolts.
- Operational Clearance: 0.05 mm signifies the maximum allowable endfloat for the intake camshafts.
- Critical Speed Performance: 700 rpm signifies the standard idle speed for automatic transmission settings.
Professional Workshop Service Manual & Technical Specifications
Toyota Corolla (1997-2002) - Comprehensive Workshop Manual
Repair-Classification: Car // Model-Portfolio: Corolla Saloon, Hatchback, Liftback & Estate // Repair-Classification: Owner's Manual.
Technical Specs Table
| Component | Parameters | Validation-Data |
|---|---|---|
| Engine Type | DOHC, in-line four-cylinder, four valves per cylinder | 4E-FE, 4A-FE, 4ZZ-FE, 3ZZ-FE |
| Firing Order | 1-3-4-2 | N/A |
| Front Disc Thickness (New) | 22.0 mm | N/A |
| Front Brake Pad Friction Material (New) | 13.0 mm | N/A |
TOC Summary Block
Repair procedures are structured around:
- General Information
- Routine Maintenance and Servicing
- Engine and associated systems
- Transmission
- Brakes and suspension
- Wiring diagrams
Prose Paragraphs
This manual provides comprehensive guidance for maintaining and repairing your Toyota Corolla (1997-2002). It covers a wide range of systems, including the engine, transmission, brakes, suspension, and electrical components. Each section offers detailed procedures, diagrams, and specifications to assist with diagnostics and repairs. The content is organized logically to ensure clarity and ease of use for both novice and experienced mechanics.
Torque Statement
This manual documents torque specifications for various components to ensure proper bolt stretch prevention and secure assembly.
