Toyota Corolla 1993–1997 Service & Repair Manual Set

The articles combine Corolla-specific repair information with broader Toyota, Geo, and general workshop references. Their application tables help match the engine, transaxle, and component variant to the appropriate procedures.

Coverage limits: Dedicated repair articles focus on 1993 and 1995–96. Selected multi-year references and some diagrams in the 1993 wiring file also include 1994. The 1997 material covers system wiring diagrams only. Wheel-alignment specifications and procedures are referenced in a separate article that is not included.

Text Search, Diagram Detail and PDF Files

Search and navigation: Article text and figure captions are searchable, but lettering embedded in wiring-diagram images is not. None of the files has embedded PDF bookmarks. Small labels in the sampled wiring diagrams are readable with enlargement.

The ZIP download contains 90 printable PDFs in English totaling 2,011 pages, including one additional notice page and one page containing only the document header.

Engine Overhaul, Transaxle Repair and Circuit Diagnosis

This selection of covered work is not a complete contents list. Additional topics include cooling-fan relay testing and computer relearn notes.

• Engine repair: Engine removal, cylinder-head and manifold service, timing-belt replacement, camshaft and valve-lifter work, piston inspection, crankshaft bearings, and oil- and water-pump service.

• Transaxles and clutch: A131L/A245E automatic and C50/C52 manual overhaul, road and stall tests, time-lag checks, hydraulic-pressure testing, differential repair, and clutch hydraulic service.

• Brakes and chassis: ABS diagnosis, brake bleeding and overhaul, manual and power rack-and-pinion repair, steering pressure tests, front CV axles, wheel bearings, struts, and control arms.

• Engine management: 1993 trouble-code diagnostic charts, 1996 sensor operating-range charts, vacuum diagrams, and component removal and installation information for the 1996 1.8L engine.

• Electrical and SRS: Wiring diagrams for 1993, 1996, and 1997; air-bag diagnosis for 1993, 1995, and 1996; component locations, connector views, and starting, charging, cruise-control, anti-theft, fuse, and instrument-circuit tests.

• HVAC and body equipment: Manual A/C-heater diagnosis, refrigerant service, compressor references, blower and control testing, plus power windows, locks, mirrors, defoggers, wipers/washers, and sunroof service where fitted.

The diagnostic and overhaul material is suited to technicians and experienced owners familiar with DVOM testing, precision measurement, and workshop equipment; refrigerant and SRS work requires the corresponding specialist knowledge and equipment.

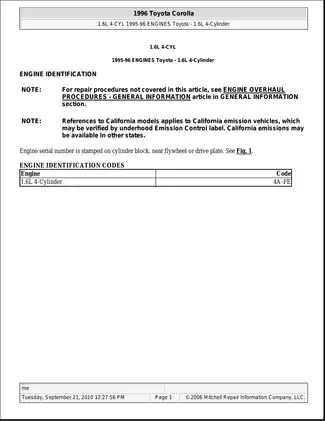

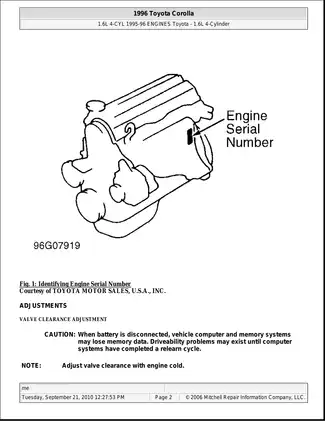

Engine Internals and Fuel-System Service

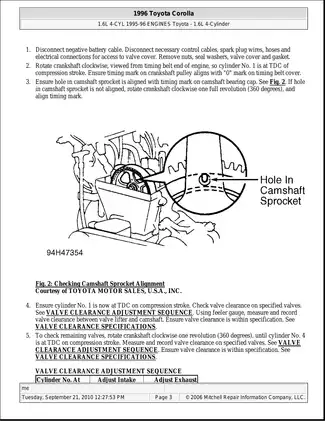

The engine articles extend into cylinder-head, valve-train, piston, connecting-rod, crankshaft, main-bearing, cylinder-block, and oil-pump inspection. Step-by-step timing-belt and cylinder-head procedures are supported by component views, shim-selection charts, and engine-specific torque data.

The 1996 1.8L performance article addresses ECM service and crankshaft-position, coolant-temperature, intake-air-temperature, MAP, throttle-position, vehicle-speed, and knock sensors. It also covers the fuel rail, injectors, fuel-pressure regulator, idle-air-control valve, and EGR components.

The 1993 self-diagnostic material links stored trouble codes to probable circuits and diagnostic charts, providing a route from code identification to fault isolation. Normal Mode and Test Mode coverage explains their different uses, including checks for intermittent connections.

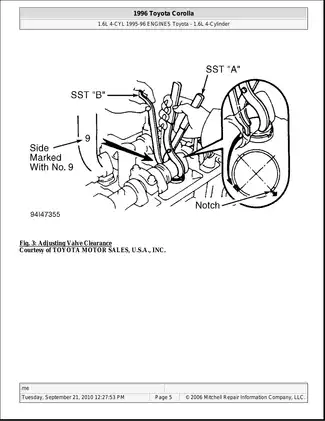

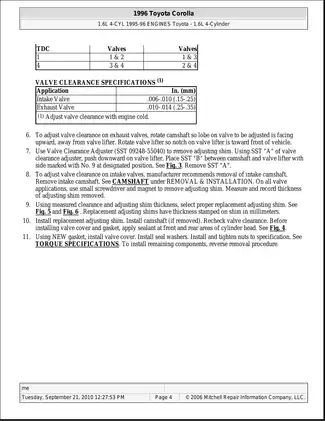

Procedure-specific tool references include Valve Clearance Adjuster SST 09248-55040, Pulley Holder SST 09213-70010 with Handle SST 09330-00021, and Seal Installer SST 09309-37010.

Inside the Automatic and Manual Transaxles

Automatic-transaxle overhaul reaches the oil pump, planetary gearsets, one-way clutches, brake and clutch packs, valve body, and differential. C-series manual-transaxle work adds input- and output-shaft inspection, shift forks, synchronizer rings, fifth-gear checks, and differential-bearing preload.

The automatic-transaxle reassembly cautions explain how excessive force on the oil pump can trap its seal rings against the direct-clutch drum.

ABS, SRS and Steering Service

ABS material includes speed-sensor diagnostics, actuator checks, relay and solenoid circuits, pump-motor fault isolation, ECU inspection, component replacement, and bleeding.

The air-bag articles address system deactivation and activation, spiral-cable adjustment, sensors and modules, diagnostic codes, post-collision inspection, wire repair, and disposal procedures.

Steering-column precautions address accidental air-bag deployment during service. The steering-gear instructions also warn that allowing the steering wheel to rotate while the gear is disconnected can damage the spiral cable.

Wiring Diagrams and Workshop References

Illustrations include the timing-belt component exploded view, A245E valve-body assembly views, the ABS pump-motor-lock diagnostic chart, and the power rack-and-pinion steering-gear exploded view.

Electrical examples include the 1995–96 Corolla ABS wiring diagram and 1997 engine-performance circuits. The wiring files also cover starting and charging, transmission controls, lighting, body equipment, and, in the later files, SRS and computer data lines.

Supporting tables supply component torque specifications, lubricant and capacity data, pressure-test values, electrical resistance and continuity checks, adjustment data, wear limits, and internal engine and transmission clearances.

Engine/transaxle removal, brake and steering hydraulic work, refrigerant handling, and SRS service require proper support equipment, pressure release or recovery, and system isolation before repair work begins.

Selected Fifth-Gear Inspection Limits

For the C50/C52 five-speed transaxles, the overhaul article lists standard fifth-gear thrust clearance of .004–.022 inch, with a .026-inch service limit.

Fifth-gear radial, or oil, clearance is specified separately: .0006–.0023 inch standard, with a .0028-inch service limit.
