Honda FES250 / Foresight 250 Scooter Service Manual (1997–2005)

This Honda service manual covers repair and maintenance for the FES250 / Foresight 250. The cover identifies FES250W, and the September 1997 issue includes regional type references in its service specifications.

Printable PDF, Page Navigation, and Diagram Detail

Search, bookmarks, and wiring labels: PDF text search is not available. Embedded bookmarks provide individual page access under sequential filenames rather than chapter names. Small wiring labels require zooming.

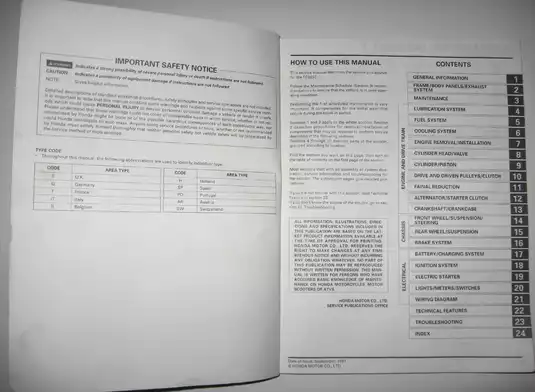

The download contains one printable, 153-page PDF in English, including one front-cover page. Most remaining PDF pages reproduce two facing book pages.

Engine, Belt Drive, Combined Brakes, and Electrical Service

The following selected service topics outline the manual’s coverage rather than reproduce its full contents. Other documented work includes muffler removal and installation and fuel-gauge/fuel-level-sensor checks.

• Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head overhaul, valve-guide replacement, piston inspection, and crankcase separation.

• Fuel and lubrication: Carburetor disassembly and assembly, starting-enrichment valve testing, pilot-screw adjustment, and oil-pump inspection.

• Cooling system: Pressure testing, coolant replacement and air bleeding, thermostat inspection, water-pump mechanical-seal replacement, and radiator service.

• Belt drive and clutch: Drive-pulley inspection, belt replacement, clutch-shoe service, driven-pulley overhaul, and final-reduction bearing replacement.

• Combined brakes: Hydraulic bleeding, master-cylinder and caliper overhaul, thrust-cylinder service, delay-valve replacement, and rear drum-brake repair.

• Suspension and bodywork: Fork-seal replacement, steering-bearing service, rear shock removal, and illustrated frame-cover removal sequences.

• Electrical diagnosis: Wiring diagrams, charging-system troubleshooting charts, ignition peak-voltage tests, starter-motor overhaul, and self-canceling turn-signal diagnosis.

Written for readers with basic knowledge of Honda maintenance, this manual assumes familiarity with standard workshop procedures and the equipment specified for each job.

Engine Inspection and Repair Access

Cylinder-head procedures cover compression testing, valve-seat inspection and refacing, camshaft inspection, and rocker-arm measurements. Piston-ring checks, cylinder measurements, crankshaft runout, and connecting-rod clearances extend the internal inspection coverage. Torque tables and wear limits accompany the relevant assemblies.

Engine-in-frame service: Cylinder-head, cylinder/piston, and crankshaft/crankcase work require engine removal. Camshaft and rocker-arm service can be performed with the engine installed. This distinction helps establish the access and support equipment needed before work begins.

Carburetor, Lubrication, and Cooling

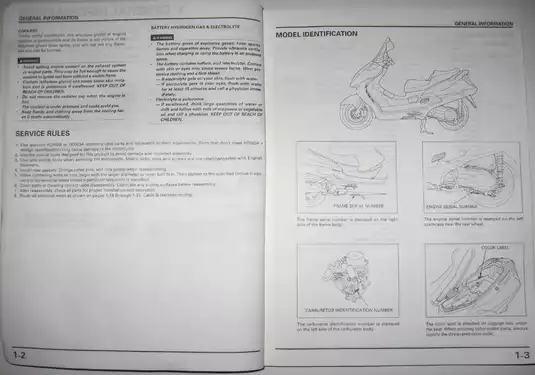

Carburetor illustrations identify the vacuum piston, diaphragm, float valve, air cut-off valve, and starting-enrichment thermal valve. The Swiss SW specification uses carburetor VE3BD; the other listed regional types use VE3BB. Separate pilot-screw settings distinguish these applications.

The carburetor cautions explain how wire-cleaning passages can damage the body and how disturbing the throttle sensor can affect ignition timing.

Oil-pump instructions include rotor-clearance measurements and assembly. The cooling-system illustration traces connections between the radiator, thermostat, carburetor heater, and water pump.

Mechanical-seal replacement includes special-tool references and alignment notes intended to prevent damage to the water-pump shaft end during installation.

Pulley, Clutch, and Final Reduction

A movable drive face and boss selection chart identifies compatible component combinations. Clutch coverage extends to shoe linings, damper rubbers, driven-face guides, and spring inspection. The specified clutch spring compressor, 07LME-GZ40200, is referenced for disassembly and assembly.

Final-reduction instructions also address gear inspection and driveshaft installation, including the tools used to draw the shaft into its bearing.

Combined Brakes, Forks, and Body Panels

The combined-brake diagrams explain the relationship between the rear master cylinder, rear drum’s thrust cylinder, delay valve, and front caliper. The separate brake-lock illustrations show the mechanical cable arrangement, helping distinguish hydraulic braking faults from brake-lock problems.

Fork service includes fluid-level measurement, while steering-stem instructions cover bearing-race replacement and adjustment. The Frame Cover Removal Chart shows which panels must come off to reach other components.

Brake and suspension work requires secure chassis support and the safety precautions described in the manual.

Electrical Tests and Wiring References

Charging-system charts distinguish battery, harness, alternator, and regulator/rectifier faults. Ignition tests cover the throttle sensor and engine-coolant-temperature sensor, with peak-voltage adaptor 07HGJ-0020100 specified for the relevant measurements.

Cable & Harness Routing drawings supplement the main wiring diagrams and show separate early-model and later relay layouts. Electric-starter and self-canceling turn-signal references include connector checks and speed-sensor testing. Fuel-pump coverage includes electrical checks and a discharge-volume test.

Valve-Guide Fit and Fluid-Capacity Preview

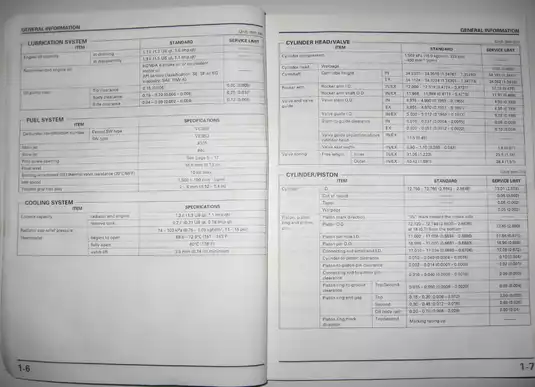

The cylinder-head tables list a standard exhaust valve stem-to-guide clearance of 0.030–0.057 mm for assessing valve-guide fit.

Cooling specifications distinguish 1.2 liters for the radiator and engine from 0.2 liter for the reserve tank. Final-drive oil capacity is 160 cm³ after draining and 200 cm³ after disassembly.
