1991–1995 Yamaha Waverunner VXR / VXR Pro 650/700 Service & Repair Manual

• Model and document coverage: A 346-page PDF split into a 170-page 1991-1992 VXR 650 section and a 176-page 1993-1995 VXR 650/700/Pro section, covering VXR/Marine Jet 650 TX, VXR/650TX, and Pro VXR/700TX configurations.
• Fuel and lubrication service: Covers fuel-tank, cock, filter, check-valve, and hose inspection; carburetor removal, inspection, adjustment, and reassembly; plus the oil-injection system, oil pump, tanks, hoses, and premix-model distinctions.
• Power-unit repair: Details reed-valve, cylinder-head, cylinder, piston, and ring work; engine-unit removal and installation; intermediate-shaft and housing service; and flywheel-magneto, crankcase, crankshaft, and idle-gear inspection and assembly.
• Jet-pump and hull work: Includes impeller, drive-shaft, housing, and bilge-system service, along with exhaust, steering, control-cable, ride-plate, hood, deck, and hull-repair procedures.
• Electrical diagnosis: Provides test and service coverage for the CDI magneto and unit, ignition coil, thermo switch, rectifier-regulator, starter relay and motor, battery, switches, wiring, and the later fuel sender and multifunction meter.
• Diagrams and fault finding: Supplies FN8/GD0 electric wiring diagrams, pipe and cable routing diagrams, cooling and ventilation flow diagrams, an oil-injection schematic, and troubleshooting charts for no-start, weak/no-spark, irregular running, stalling, and failure to shut off.
• Factory reference data: Includes maintenance schedules, component-specific torque tables, wear limits, clearances, carburetor settings, ignition and electrical test values, capacities, inspection standards, and Yamaha special-tool references.

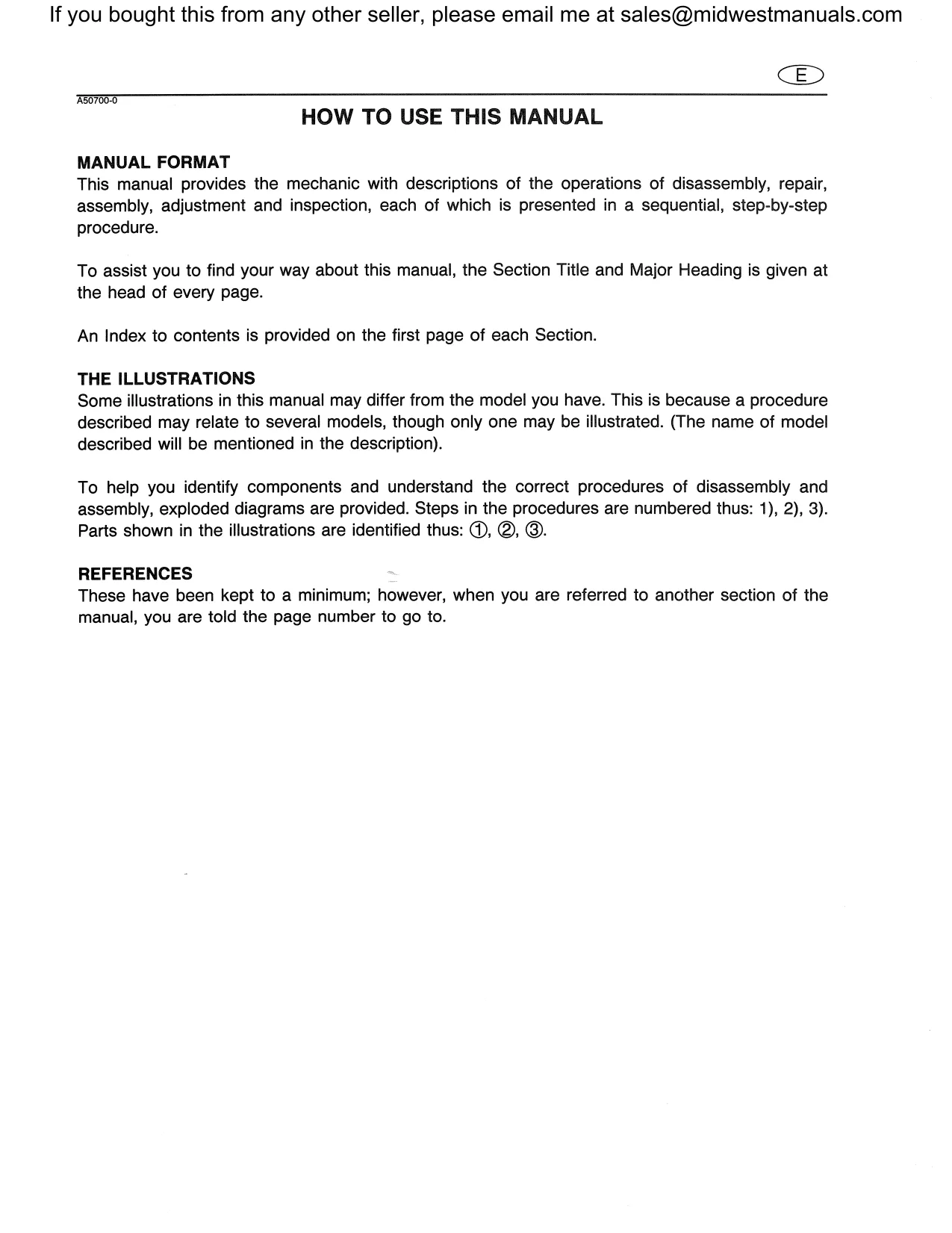

This service manual set is written for the mechanic and assumes familiarity with two-stroke engine repair, precision measurement, electrical testing, and Yamaha-specific pullers and holding tools. It goes well beyond routine maintenance by documenting the major disassembly, inspection, repair, reassembly, adjustment, and final-check work needed across the covered WaveRunner and Marine Jet models.

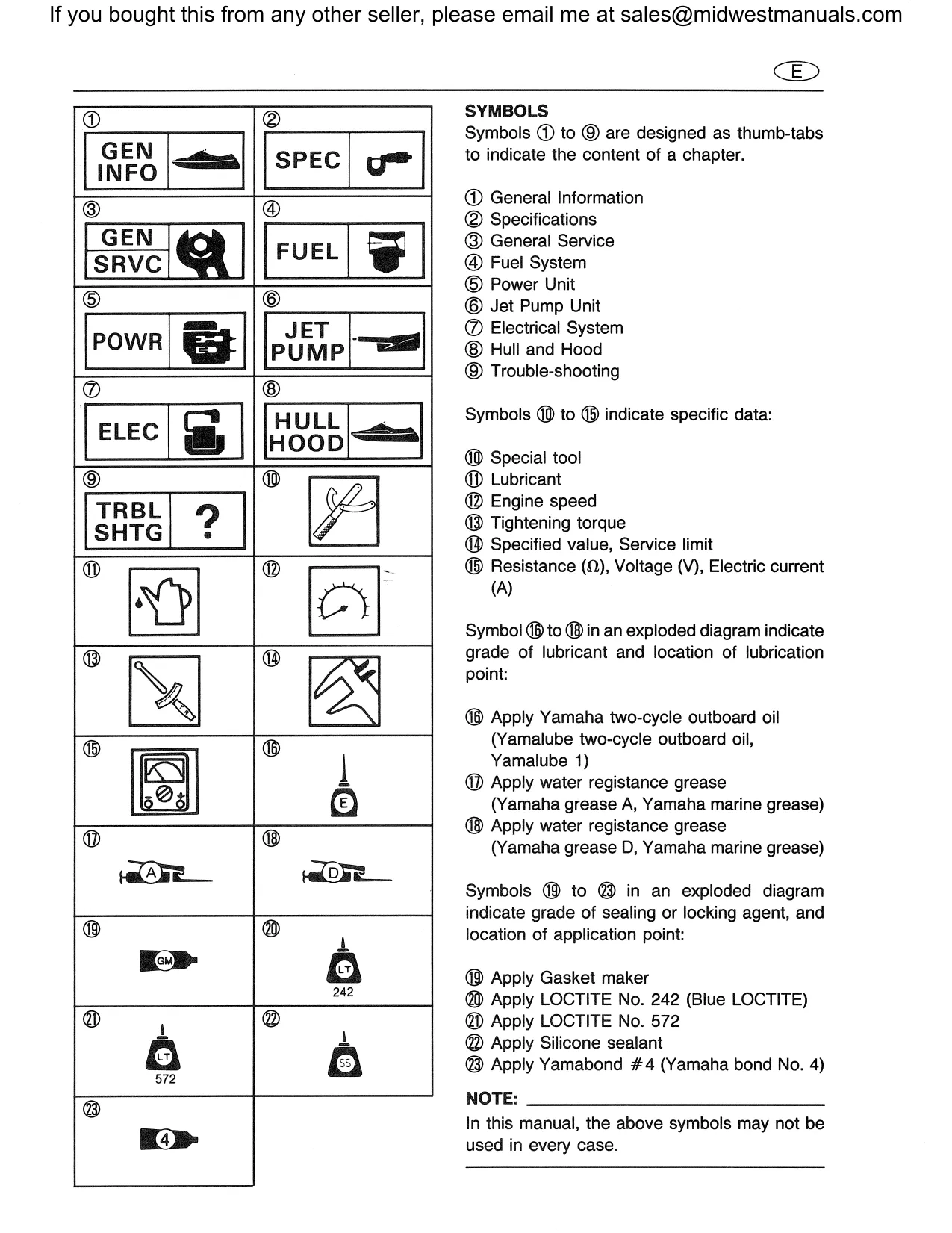

System Coverage and Layout

Model identification is more precise than a simple 1991–1995 label. The earlier section covers the FN8 hull with 61L or 61M engine configurations and lists starting primary I.D. numbers 800101 and 600101, with engine serial numbers beginning at 000101. The later section separates FN8/61L–61M VXR and 650TX machines from GD0/61X Pro VXR and 700TX versions. Its identification tables list FN8 primary I.D. starts of 807001 and 601701, GD0 starts of 800101 and 606101, plus separate starting engine and jet-pump serials for 61L and 61X units. That distinction matters before selecting carburetor, engine, electrical, or pump specifications.

The fuel chapters trace the system from filler and tank through the fuel cock, filter, check valves, hoses, and carburetor. Separate oil-injection coverage addresses the pump, sub-tank, main tank, oil filter, check valves, and lines, while the routing material distinguishes oil-injection and premix layouts. Power-unit chapters then take the repair through top-end service, engine removal, coupling and intermediate-housing work, flywheel-magneto removal, crankcase separation, crankshaft inspection, and reassembly.

Jet-pump coverage includes removal, impeller and drive-shaft work, housing inspection, bearing-related service, reassembly, and bilge-system inspection. Hull chapters add steering and control cables, exhaust components, gunwale and mat, engine hood, deck, graphics and insert-nut work on the later models, plus procedures for light scratches, deep scratches, and punctured hull damage.

Specifications, Diagnostics, and Service Tools

The specification tables separate the 633 cc FN8 builds from the 701 cc GD0/61X configuration rather than treating the 650 and 700 systems as interchangeable. Variant-specific data covers carburetor calibration, reed-valve limits, piston and cylinder inspection, jet-pump clearances, starter and ignition components, and assembly torque sequences. Electrical diagnosis is backed by wiring diagrams and test values for the Mitsubishi magneto/CDI system, ignition coil, charging circuit, regulator, thermo switch, starter system, and related switches.

Yamaha identifies dedicated tooling, including the CDI tester YU-91022-B, flywheel puller YB-6117 / 90890-06521, shaft holder YW-38742 / 90890-06069, and coupler wrench YW-38741 / 90890-06425. The manual also shows regional 90890-series equivalents beside the U.S./Canada tool numbers.

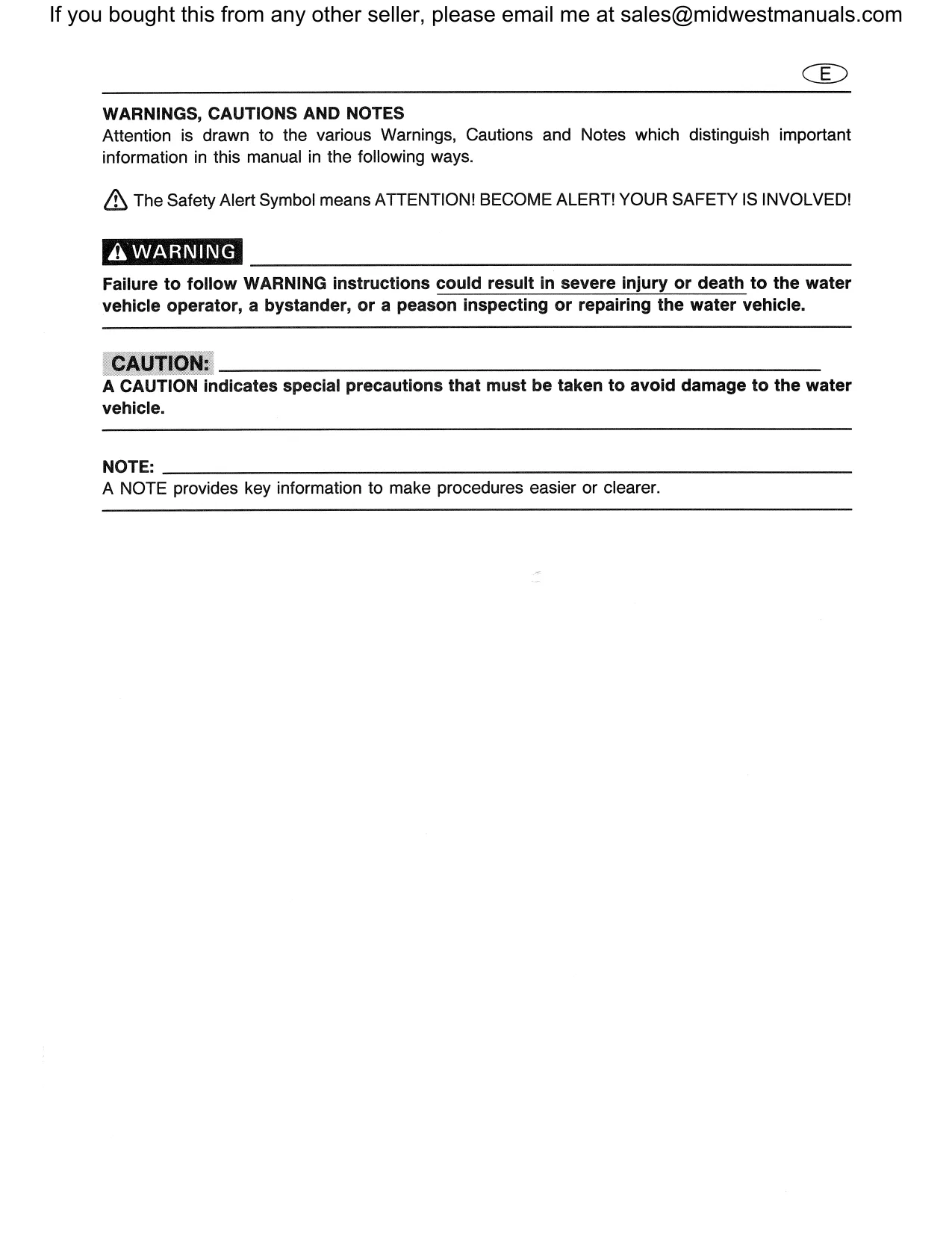

Two repair traps are called out directly: reversed battery leads can seriously damage the electrical system, and incorrect piston-ring or pin-clip positioning can damage the piston and rings. Gasoline vapor, battery service, rotating driveline parts, and running-engine tests require proper ventilation, isolation, eye protection, and the shop precautions stated in the manual.
