Isuzu 4LE2, AU-4LE2, BV-4LE2 Industrial Diesel Engine Repair Manual (P/N 4LE2IT4-WE-0991)

Published by Isuzu Motors Limited in March 2009, this 211-page workshop manual PDF covers the industrial diesel engine applications identified on the cover as AU-4LE2 and BV-4LE2. Inside, the factory specifications and repair sections distinguish the 4LE2X and 4LE2N engines, both 4-cycle, water-cooled, inline four-cylinder OHV direct-injection designs. Version 4LE2IT4-WE-0991 is organized by engine mechanical, cooling, fuel, electrical, exhaust/EGR, lubrication, intake/turbocharger, and preheating systems.

Key Content Highlights:

• Engine mechanical teardown and rebuild coverage: Cylinder head, rocker arm shaft, pistons and connecting rods, flywheel, front and rear crankshaft oil seals, timing gear train, camshaft, crankshaft, and cylinder block sections include removal, disassembly, inspection, reassembly, installation, and component-specific torque references.
• Fuel, timing, and governor service: Covers valve-clearance inspection and adjustment, injection-timing inspection and shim adjustment, compression testing, nozzle spray-condition checks, fuel-system air bleeding, electromagnetic pump checks, injection-pump removal/installation, sedimenter service, and governor disassembly and reassembly.
• Cooling, lubrication, intake, exhaust, and electrical diagnosis: Includes cooling-system leak checks, EGR-cooler air bleeding, water-pump and thermostat inspection, oil-pressure checks and oil-pump inspection, turbocharger shaft-play inspection, EGR control diagnosis, generator and starter testing, and glow-plug/preheating troubleshooting.
• Factory repair data and tooling: Provides repair-standard tables with nominal dimensions, assembly specifications, service limits and repair criteria, plus special-tool references for compression testing, nozzle testing, valve work, piston service, and crankshaft oil-seal installation.

Engine Mechanical & Fuel System Preview

The model coverage is more specific than a generic 4LE2 overview. The 4LE2X exterior-equipment drawings identify the turbocharger, EGR cooler and cut solenoid, intake chamber, PCV valve, injection-pump plumbing, and oil cooler. The 4LE2N is illustrated separately with its own exterior arrangement. Factory specification tables also distinguish the two engines by items such as compression ratio, coolant and lubrication capacities, and oil-pump specifications. Values marked as machine-dependent are explicitly referred back to the machine manufacturer's specification, which matters when this engine is installed in different industrial equipment.

Mechanical repair coverage goes well beyond routine maintenance. The cylinder-head chapter includes removal, valve-train disassembly, head and valve-seat inspection, valve-guide and seal service, reassembly, head-gasket installation, and final valve-clearance adjustment. Piston and connecting-rod work includes ring and pin removal, piston-to-bore and bearing-clearance inspection, rod alignment checks, bushing replacement, piston/ring reassembly, and installation. Separate sections cover the timing gear train, camshaft, crankshaft, cylinder block, flywheel, and front and rear oil seals.

The fuel system identifies a Bosch-type PFR1KX injection pump, centrifugal all-speed governor, multi-hole nozzle holder, fuel filter, and sedimenter. The manual covers injection-timing inspection and adjustment, injection-pump shimming and installation, fuel-system bleeding, and detailed governor teardown/reassembly. The governor section also makes an important shop requirement clear: adjustment of governor-related parts requires an engine performance test, and it warns against disassembly when that test cannot be carried out afterward.

Diagnostics, Schematics & Special Tools

The troubleshooting material addresses no-start conditions, unstable engine speed, output shortage, overheating, abnormal exhaust smoke, battery over-discharge, low oil pressure, excessive fuel or oil consumption, and engine knocking. Electrical coverage distinguishes Mitsubishi 24V-30A, Nikko 24V-50A, and Hitachi 12V-20A generators, plus Mitsubishi 24V-3.2kW and DENSO 12V-2.0kW starters, with connector terminals, internal connections, bench or no-load tests, trouble diagnosis, and maintenance standards.

Useful diagrams include the Fuel System Diagram, EGR Controller Wiring Diagram, Connector Pin Layout, Engine Coolant Temperature Sensor Circuit Diagram, Tachosensor Circuit Diagram, and Boost Pressure Sensor Circuit Diagram. Exploded component views support major repair sections such as the cylinder head, piston/connecting rod, timing gear train, oil pump, governor, and turbocharger. The EGR wiring section also identifies the harness between the controller and EGR cut solenoid as machine-side equipment, directing harness faults to the machine manufacturer.

The special-tool list identifies, among others, compression gauge 5-8840-2675-0 with adapter 5-8840-9029-0, nozzle tester 5-8840-9016-0, valve spring remover 5-8840-9030-0, valve guide installer 5-8840-9035-0, piston ring compressor 5-8840-9018-0, and front/rear oil-seal installers 5-8840-9031-0 / 5-8840-9032-0.

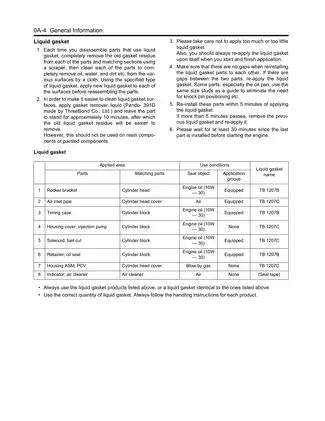

Several warnings are genuinely repair-specific. During injection-pump removal and installation, the control link and rack pin must stay correctly centered; misalignment can trap the rack pin or fold the link. Piston-ring orientation also matters: the compression rings have directional marks and different profiles, and inverse assembly is specifically linked to increased oil consumption. In the lubrication system, excessive liquid gasket can clog the oil gallery or piston-cooling oil jet and cause seizure, while insufficient application can lead to oil or water leakage.

For scope clarity, the manual specifically states that the two-stage injection nozzle should not be disassembled in the shop; nozzle overhaul and injection-pressure inspection/adjustment are directed to a BOSCH service center. Several troubleshooting paths likewise route a defective injection pump to a specialty shop rather than providing an internal pump rebuild.

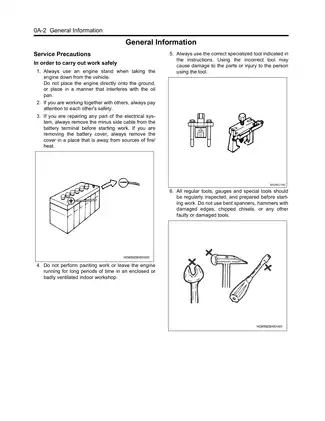

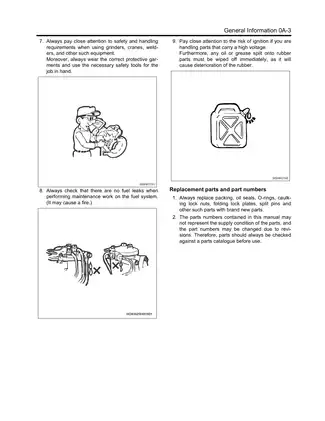

Industrial diesel fuel systems, hot cooling circuits, rotating components, and electrical systems require the service precautions in the manual. High-pressure nozzle testing is specifically treated as a penetration hazard, and fuel leakage is identified as a fire risk.
