Jeep Wrangler TJ Service & Diagnostic Manual Set – 2004

The diagnostic publications provide symptom-based tests, DTC troubleshooting, component locations, and connector pinouts. The service manual supplies the corresponding removal, repair, and installation procedures, letting a technician follow fault isolation through to the mechanical work within the same file.

Internal engine repair covers the gasoline engines. Diesel material is limited to export maintenance schedules. AX15 appears in the introductory identification table; the detailed transmission repair groups cover NV1500, NV3550, and 42RLE.

PDF Search, Bookmarks, and Wiring Detail

Text access and diagram detail: Service and diagnostic text is searchable, but many Section 8W wiring pages have no searchable text. Detailed chapter bookmarks cover the publications; some original CD launch and help links still point to separate filenames. Small labels on dense powertrain and transmission schematics require zooming.

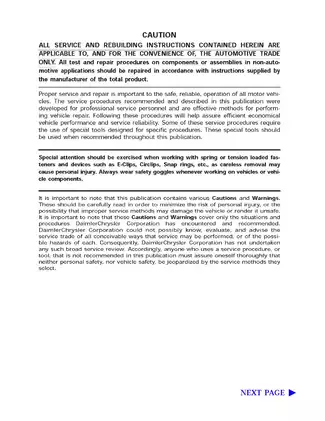

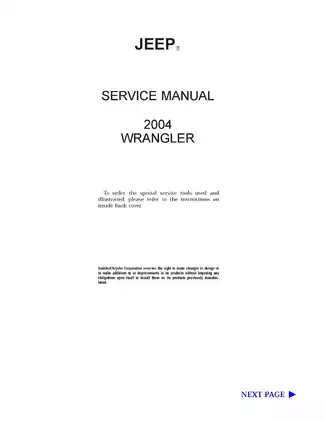

The English download is supplied as one printable, 2,436-page PDF. This total already includes the welcome page, service-manual cover and caution page, 18 Notes pages, and 32 blank separator pages.

Engine Repair, Drivetrain Overhaul, and System Diagnostics

These selected coverage highlights outline the main workshop subjects rather than reproduce the full contents. Other topics include wiper/washer service and exhaust-system repair.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head work, internal inspection, timing-system service, and lubrication-system repair for both gasoline engines.

• Transmission and transfer cases: NV1500 and NV3550 disassembly and assembly, 42RLE overhaul and hydraulic testing, plus NV231 and NV241 repair procedures.

• Axles and driveline: Front and rear axle repair, differential setup, propeller-shaft diagnosis, single- and double-Cardan joints, Trac-Lok service, and Rubicon Tru-Lok components.

• Suspension and steering: Symptom diagnosis, wheel alignment, control-arm and track-bar service, hub/bearing replacement, ball-joint work, and steering-component repair.

• Brakes and axle locking: Base-brake service, ABS bleeding, Teves Mark 20i fault diagnosis, wheel-speed sensor tests, and Axle Lock circuit troubleshooting.

• Engine controls and electrical: Starting and charging tests, fuel/ignition diagnosis, emissions troubleshooting, wiring diagrams, connector information, and harness-repair procedures.

• Body and HVAC: Door, glass, removable-top, and interior service; heater and A/C testing; and body-electrical diagnosis covering airbags, audio, instruments, and vehicle communications.

The service manual was written for professional automotive technicians; many diagnostic procedures require a DRBIII scan tool and the specified test equipment.

Gasoline Engine, Fuel, and Cooling Work

Internal engine service: The four-cylinder section covers timing-belt, camshaft, balance-shaft, cylinder-head, crankshaft/bedplate, and oiling work. The six-cylinder section includes compression and leakage diagnosis, valvetrain and crankshaft service, manifolds, lubrication, and engine removal and installation.

The six-cylinder head-installation procedure distinguishes bolt 11 from the remaining head bolts during final tightening. Accessory-drive cautions also explain how incorrect belt routing can reverse water-pump rotation and overheat the engine.

Fuel and cooling: Fuel-delivery information covers pressure and leak-down testing, injector service, and pump-module replacement; the electric pump itself is treated as part of the module. Cooling coverage includes thermostat and water-pump service, system testing, and engine-specific coolant-capacity data.

Transmission Overhaul and Differential Setup

42RLE repair depth: The automatic-transmission material covers the underdrive, overdrive, reverse, 2/4, and low/reverse clutch elements, valve-body service, solenoid/pressure-switch components, clutch-clearance checks, and adaptive controls. Hydraulic testing identifies Gauge C-3293SP and Adapter Set L-4559. DRBIII Quick Learn procedures address replacement or rebuilt transmissions and other specified service conditions.

Axle variants: Dedicated groups cover 181FBI and 216FBI front axles and 194RBI and 216RBI rear axles. Setup information addresses pinion depth, bearing preload, shim selection, backlash, runout, and tooth-contact patterns. The NV241 section includes identification-tag information and its 4.0:1 low-range reduction.

The 194RBI pinion cautions explain how over-crushing the collapsible spacer or backing off the pinion nut can compromise bearing preload and damage the assembly. Fluid information specifies ATF+4 for the automatic transmission and transfer cases, distinguishes service and overhaul fills, and warns against Dexron II because improper fluid can cause clutch chatter.

Chassis Diagnosis and Workshop Equipment

Suspension and steering diagnosis addresses front-end noise, shimmy, tracking, steering effort, play, and vehicle instability. Component coverage includes caster, camber, toe, springs, shocks, stabilizer bars, control arms, track bars, hubs, and ball joints. Wheel Alignment Measurements and Steering Linkage figures support these sections.

Propeller-shaft checks cover balance, runout, and operating angles using Inclinometer 7663 (J-23498A). Other identified tools include Suspension Bushing Remover/Installer 7932, Ball Joint Tool Kit 6289, Dial Indicator C-3339, Spreader W-129-B, and Pinion Depth Set 6774.

Suspension cautions explain how tightening bushing fasteners with the suspension hanging can preload the bushings and cause premature wear. For undercarriage repair, use the specified hoisting points and proper frame support. The manual warns that removing chassis or drivetrain components changes the vehicle's center of gravity and can make a normal hoist setup unstable.

Electrical Fault Tracing and Cabin Systems

The wiring material includes circuit identification, connector/ground/splice information, voltage-drop and short-to-ground tests, terminal repair, and wire splicing. Diagram sections include Power Distribution, Ground Distribution, and Fuel/Ignition System, together with Transmission Control System, Antilock Brakes, and Instrument Cluster/Axle Locker System.

Component-location views and connector pinouts support faults spanning PCM, ABS, cluster, and axle-lock circuits. The diagnostic publications add module-data interpretation, DTC test paths, communication checks, and repair-verification tests.

Body-electrical coverage extends to airbag circuits, audio, chimes, the compass/temperature mirror, rear-window heating, and instrument-cluster self-tests. HVAC procedures include performance testing, refrigerant-leak detection, recovery, evacuation, and charging.

Selected Axle and Transmission Specifications

Front axle setup: The 181FBI and 216FBI specifications list ring-gear backlash of 0.12–0.20 mm (0.005–0.008 in.), alongside separate bearing-preload and fastener-torque tables.

42RLE filling: The capacity chart distinguishes a 3.8 L (8.0 pt) service fill from an 8.3 L (17.6 pt) overhaul fill. Actual dry-fill requirements can vary with cooler configuration and lines.

Hydraulic test data: The specified 42RLE low/reverse test lists 115–145 psi with the selector in L, first gear, an indicated 20 mph during the hoist-based test, and fluid at 150–200°F.
