Honda NSR125 F/R 1989–2000 Service & Repair Manual PDF

Honda service manual for the 1989–2000 NSR125 F and NSR125 R, covering scheduled maintenance, fault diagnosis, and engine and chassis repair.

PDF Access, Language, and Diagram Detail

Search and navigation: Manual pages do not support text search; only the added wiring notice has searchable text. There are no embedded PDF bookmarks. Small wiring labels require zooming.

One printable 222-page PDF, including the added one-page wiring notice and two replacement wiring-diagram pages. Most text is English; the hydraulic-brake service information, specifications, and troubleshooting on PDF pp. 161–162 are in French. The brake repair procedures that follow are in English.

Two-Stroke Engine, Chassis, and Electrical Service

These selected service topics outline the repair coverage. Other included subjects range from subframe removal to horn and lighting-switch checks.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head and piston service, RC valve disassembly, crankcase separation, crankshaft inspection, and bearing replacement.

• Clutch and transmission: Wet multi-plate clutch inspection and assembly, kickstarter and gearshift-linkage repair, and internal transmission disassembly with gear and shift-fork checks.

• Fuel and lubrication: Carburetor overhaul, float-level and pilot-screw adjustment, reed valve inspection, oil-pump control-cable adjustment, and oil-injection system bleeding.

• Cooling system: Radiator-cap and system pressure tests, thermostat and thermosensor checks, water-pump mechanical-seal replacement, coolant replacement, and air bleeding.

• Brakes and chassis: Master-cylinder and caliper overhaul, brake bleeding, wheel-bearing replacement, fork rebuilding, steering-head bearing service, and Pro-Link suspension-linkage work.

• Electrical diagnosis: Charging and CDI troubleshooting flowcharts, starter-motor inspection, relay and diode tests, RC valve servomotor checks, and separate F/R wiring diagrams.

Suited to mechanically qualified owners and technicians with the specified tools and measuring equipment; the maintenance schedule recommends an authorized Honda dealer for certain safety-related work.

Engine Rebuilds and Component Matching

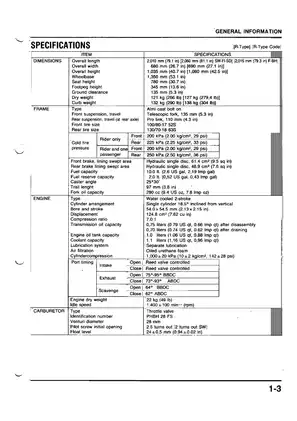

Cylinder and Piston Selection charts distinguish grades A–E, with matching rules and wear limits for the plated cylinder, piston, rings, and connecting-rod small end. The inspection data also cover cylinder-head warpage and piston-to-bore clearance.

Clutch, kickstarter, and gearshift-linkage service can be performed with the engine installed. Internal transmission and crankshaft work require engine removal and crankcase separation. Balancer service includes gear-index alignment, while RC valve procedures cover control-cable alignment.

The manual warns that rotating the cylinder during installation can snag and break piston rings at a cylinder port.

Carburetor, Oil Injection, and Cooling Repairs

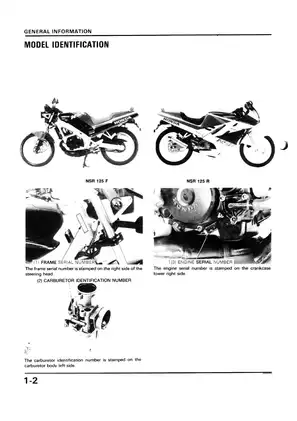

Fuel system: PHBH28FS carburetor exploded views and float-level gauge illustrations support inspection of the jets, needle, float valve, and bystarter. Fuel-tank and air-cleaner-case removal are documented separately.

Oil injection: The oil-pump section covers removal, inspection, installation, and bleeding, but specifically excludes pump disassembly. Air trapped in the oil lines can restrict lubrication and cause severe engine damage.

Cooling: Mechanical-seal replacement includes water-pump shaft-bearing work. Radiator-cap relief-pressure data and thermosensor resistance tables support the cooling-system checks.

Suspension, Brakes, and Reassembly References

Fork service covers bushings, seals, spring inspection, and fluid-level setting. Rear suspension coverage includes swingarm pivot bushings, shock linkage, spring removal, and damper testing; the manual prohibits internal damper disassembly.

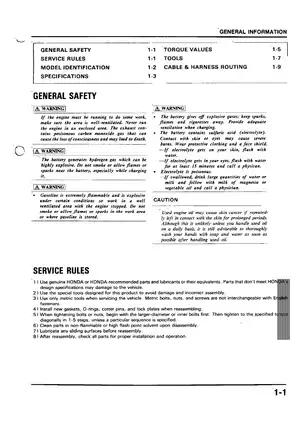

Cable & Harness Routing drawings help technicians avoid pinching control lines and keep wiring clear of hot or moving parts during reassembly. Safety notes address flammable fuel, carbon monoxide, hot coolant, and the nitrogen-charged rear shock.

F/R Electrical Differences and Fault Tracing

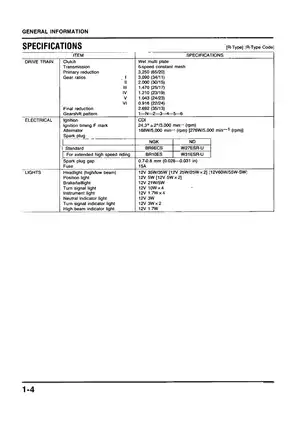

Charging-system references distinguish the F model’s single-phase regulator/rectifier from the R model’s three-phase unit. Ignition timing is factory preset; the CDI section provides inspection and fault-isolation procedures rather than a timing-adjustment procedure.

The servomotor chapter separates RC valve cable or gear faults from motor, variable-resistor, control-unit, and CDI faults. Battery/Charging System and Servomotor circuit diagrams support these checks.

Engine troubleshooting charts address hard starting, low power, and poor idle or high-speed performance.

Wiring limitation: The full F/R wiring diagrams are replacements from a French manual. The included notice warns that wire colors may differ from those on your motorcycle.

A Preview of Thermostat Checks and Fastener Torques

The thermostat inspection lists an initial opening range of 69.5–72.5°C. This is the start-of-opening specification, distinct from the separate valve-lift test.

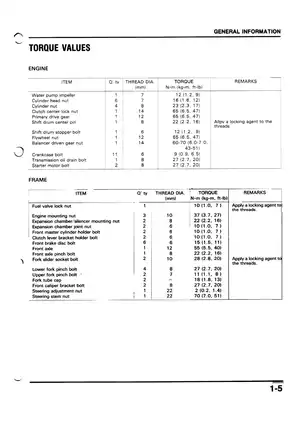

The engine torque table specifies 16 Nm for cylinder-head nuts and 23 Nm for cylinder nuts. The fuel-valve lock nut is listed at 10 Nm, with thread-locking agent specified. Standard fastener tables accompany the component-specific torque references.
