John Deere Snowmobile Factory Service Manual Set (1972–1975) — 300, 400, 500, 600, 800 · JDX4, JDX4 Special, JDX6, JDX8 · JD295/S & JD340/S (P/N SM-2100)
340 Pages • 1 Printable PDF (English) • Download
John Deere Models Covered & Key Technical Specifications
300, 400, 500, 600, 800, JDX4, JDX4 Special, JDX6, JDX8, JD295/S, JD340/S
Models & Model Codes:

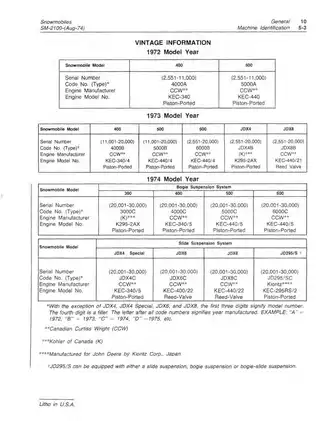

300 — 3000C (S/N 20,001–30,000; Kohler K295-2AX); J300D (S/N 30,001–; Kohler K295-2AXY in the engine specifications, K295-2AX in the machine identification table).
400 — 4000A (S/N 2,551–11,000; CCW KEC-340); 4000B (S/N 11,001–20,000; CCW KEC-340/4); 4000C (S/N 20,001–30,000; CCW KEC-340/5); J400D (S/N 30,001–; Kioritz KEC-340/5).
500 — 5000A (S/N 2,551–11,000; CCW KEC-440); 5000B (S/N 11,001–20,000; CCW KEC-440/4); 5000C (S/N 20,001–30,000; CCW KEC-440/5).
600 — 6000B (S/N 2,551–20,000; CCW KEC-440/4); 6000C (S/N 20,001–30,000; CCW KEC-440/5); J600D (S/N 30,001–; Kioritz KEC-440/5).
800 — J800D (S/N 30,001–; Kioritz KEC-440/22).
JDX4 — JDX4B (S/N 2,551–20,000; Kohler K295-2AX); JDX4D (S/N 30,001–; Kioritz KEC-340/22A).
JDX4 Special — JDX4C (S/N 20,001–30,000; CCW KEC-340/5).
JDX6 — JDX6C (S/N 20,001–30,000; CCW KEC-400/22); JDX6D (S/N 30,001–; Kioritz KEC-400/22).
JDX8 — JDX8B (S/N 2,551–20,000; CCW KEC-440/21); JDX8C (S/N 20,001–30,000; CCW KEC-440/22); JDX8D (S/N 30,001–; Kioritz KEC-440/22A).
JD295/S — JD295/SC (S/N 20,001–30,000; Kioritz KEC-295RS/2).
JD340/S — John Deere Service Textbook coverage; JD/Kioritz KEC 340 RS/2 engine.
Sub-models / Variants: Bogie Suspension, Slide Suspension, Bogie-Slide Suspension, 2-Cylinder 2-Cycle. JD295/S: optional bogie, slide, or bogie-slide suspension. JD340/S: slide suspension.
Model Years: 1972–1975 (1972, 1973, 1974, 1975)

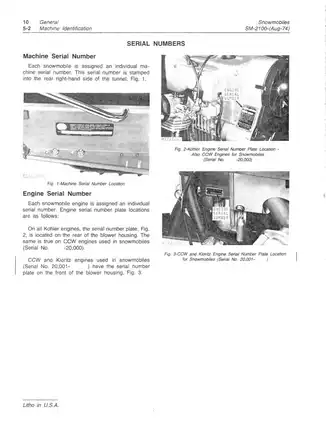

Serial Numbers: 2,551– (SM-2100); model-specific ranges are listed above. Starting serial identifiers for J300D, J400D, J600D, J800D, JDX4D, JDX6D, and JDX8D: J300D 030001M, J400D 030001M, J600D 030001M, J800D 030001M, JDX4D 030001M, JDX6D 030001M, and JDX8D 030001M, respectively.
Component Serial Breaks: 300 recoil starter: S/N 20,001–21,504 and 21,505–. The earlier recoil starter also applies to the Kohler-powered JDX4 through S/N 20,000. The 300 electric-start kit uses a heavier ring gear at S/N 21,505–. 300 standard final-drive ratio: S/N 20,001–22,625 and 22,626–30,000. Revised rear-idler spacing: JDX4 S/N 9304–20000; 400 S/N 15834–; 500 S/N 14183–; JDX8 S/N 7996–20000. Bogie mounting on bogie-equipped models and steering-column/spindle changes: S/N 20,001–. Heavy-duty suspension kit standard on 600: S/N 20,001–. Model 400 with 25 mm crankshaft: through S/N 11,000. Larger piston pins on JDX6 and JDX8: S/N 20,001–. Kohler lighting-coil configuration: through engine S/N 722605694, S/N 722605695–732701000, and S/N 732701001–.
Transmission Variants: Two-sheave variable transmission with enclosed-chain final drive. Salsbury 780: 300 S/N 20,001–, 400 and JDX4 through S/N 20,000; Salsbury 910: 500 through S/N 11,000; Salsbury 850: 500 S/N 11,001–20,000, 600 and JDX8 through S/N 20,000. John Deere (Comet) 100C drive / 90D driven: 400, 500, 600, JDX4 Special, JDX6, and JDX8 S/N 20,001–30,000; 101C drive / 90D driven: 400, 600, 800, JDX4, JDX6, and JDX8 S/N 30,001–. JD295/S (S/N 20,001–30,000): 101C drive sheave in the detailed clutch section, 100C in the machine specifications. The 90D driven-sheave section includes the JD295/S factory pretension setting. JD340/S: John Deere (Comet) 102C primary / 900 secondary. Modification Program 160 also fitted the Comet 100C drive and 90D driven sheaves to many earlier 500, 600, and JDX8 machines.
-
Engine type: 2-cylinder, 2-cycle, air-cooled
-
Crankshaft runout: 0.0035 in. maximum for the listed SM-2100 CCW/Kioritz engines except JD295/S; 0.0012 in. for Kohler-powered 300/JDX4; 0.0008 in. for JD295/S; 0.002 in. maximum for JD340/S
-
Fuel tank capacity: 6.50 U.S. gallons (plastic), 5.50 U.S. gallons (steel); JD295/S: 2.2 U.S. gallons; JD340/S: 9.00 U.S. gallons
-
Overall length: 103.4 in. for SM-2100 models; JD340/S: 104 in.
-
Overall width: 34.5 in. for SM-2100 models; JD340/S: 40 in.
-
Chain case capacity: 5 oz. (150 ml) for SM-2100 models
-
Flywheel nut torque: 60 ft-lbs for CCW/Kioritz engines; 85–90 ft-lbs for Kohler engines
John Deere Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| John Deere Snowmobiles Service Manual, August 1974 (P/N SM-2100) — 300, 400, 500, 600, 800, JDX4, JDX4 Special, JDX6, JDX8, and JD295/S | 310 |
| John Deere Service Textbook for the JD340/S Snowmobile (P/N M65776) | 30 |

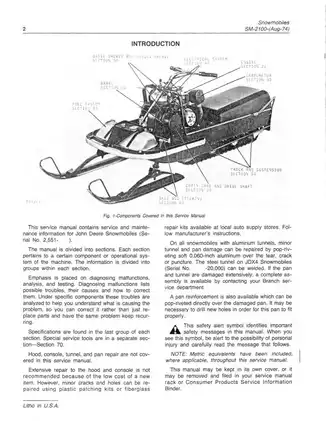

Use the Service Manual for model- and serial-specific service procedures. The JD340/S textbook explains that its engine follows the piston-ported CCW repair procedures and supplies the JD340/S specifications and model-specific fuel, ignition, driveline, brake, and suspension information.
Coverage limits: The Service Manual gives brief guidance on minor hood, console, tunnel, and pan damage. Detailed repairs to these parts fall outside its scope. The JD295/S and JD340/S wiring harnesses have no provision for an electric-start kit.
Text Search, Bookmarks, and Wiring Diagrams

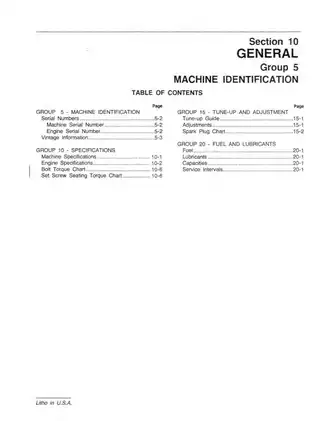

Search and diagram detail: Embedded text supports searches across both publications. The opening contents page is an image without searchable text. Bookmarks link to the main sections and wiring diagrams. Small wire-color and connector labels are best read at higher zoom.
One printable English-language PDF contains 340 pages. The total includes the two opening title pages, the JD340/S contents page, and the Service Manual's 19 section-ending pages with only running headers and footers.
Engine Overhaul, Ignition Tests, and Driveline Service
These are selected workshop topics. The Service Manual also covers silencer service and fuel tank screen and in-line filter service.
- Engine repair: Engine analysis, crankcase pressure testing, and separate overhaul procedures for CCW/Kioritz piston-ported and reed-valve engines and Kohler piston-ported engines.
- Carburetor service: Walbro, Bendix, and Mikuni disassembly, inspection, and adjustment, with metering-lever setup, float checks, synchronization, and main-jet selection.
- Electrical diagnosis: Magneto and capacitor-discharge ignition tests, ignition timing, lighting-coil and stator service, wiring diagrams, and electric-start component testing.
- Power train and brakes: Salsbury and John Deere (Comet) sheave repair, belt alignment, chain case and shaft service, band-brake adjustment, and JD340/S hydraulic disc brake repair.
- Suspension and tracks: Bogie and slide suspension service, rear-idler rebuilding, track replacement, tension and alignment checks, ski spindle replacement, and steering repairs.
- Workshop references: Component inspection limits, torque tables, electrical test specifications, and illustrated engine, clutch, and electrical service tools.
This set is suited to technicians and experienced owners familiar with two-stroke engine work, precision measuring instruments, ignition testers, and dedicated clutch tools.
Engine Inspection and Recoil Starters
Engine inspection covers cylinders, pistons, rings, connecting rods, bearings, crankshaft runout, and end play. Recoil-starter rebuild procedures include exploded assembly views and distinguish the Kohler starter versions by serial number.
Crankcase pressure testing with the JDM-44 tool helps investigate suspected air leakage after lean-running piston damage, so the cause can be checked before installing replacement parts. The Kohler assembly instructions warn that excess crankcase adhesive can contaminate crankshaft and connecting-rod bearings.
Metering, Float Level, and Jet Selection
Walbro coverage includes model-specific metering-lever springs and inlet-needle breakaway pressure testing. The Bendix section covers the float and fuel-valve assemblies. The Mikuni sections include carburetor operating-section views, float-level and starter-plunger adjustment, and step-by-step instructions for synchronizing the JD340/S dual carburetors.
The JD340/S temperature-and-altitude chart gives separate jet sizes for the left and right carburetors. It helps identify the intended difference between the two sides when checking an existing setup.
Ignition, Wiring, and Starting Systems
Electrical procedures include coil, condenser, and switch checks, starter motor overhaul, and charging-system diagnosis. The wiring diagrams distinguish electric-start configurations by serial number and include dedicated diagrams for the JD295/S and JD340/S. The JD340/S textbook also provides ohmmeter tests for its capacitor-discharge ignition and separate alternator output checks.
Sheave Setup, Hydraulic Brakes, and Track Service
The clutch procedures distinguish Comet drive-sheave bushing designs and cover driven-sheave spring pretension. The JD340/S textbook includes a driveline cross section and a chart matching final-drive sprockets to chain lengths.
For the JD340/S hydraulic disc brake, the textbook covers the Kelsey-Hayes master cylinder and caliper, friction pad replacement, and step-by-step bleeding instructions. Its brake-fluid warning explains how unsuitable hydraulic or mineral oils can damage cups and seals.
Track coverage includes failure analysis and model-specific service for Gates “Poly,” Goodyear Pathfinder, and Goodyear Grouser Bar tracks, including Grouser Bar replacement. Follow the publications’ precautions for rotating tracks, spring-loaded clutch assemblies, and high-energy ignition. Have complex internal engine or structural work performed or checked by qualified service personnel.
JD340/S Compression and Float-Level Specifications
The engine specification sheet lists compression pressure of 110–130 psi with the engine cold and the throttle wide open, with a maximum difference of 10 psi between cylinders.
The Mikuni float-level illustration specifies 0.90 ± 0.04 in. from the baffle plate to the top edge of the float arms with the carburetor inverted.
