1998 HP LaserJet 2100 / 2100M / 2100TN Service Manual (310 p.)
Service documentation for LaserJet 2100 series with procedures for fuser assembly, paper path diagnostics, and engine controller troubleshooting. PN C4170-90959
Manual Preview

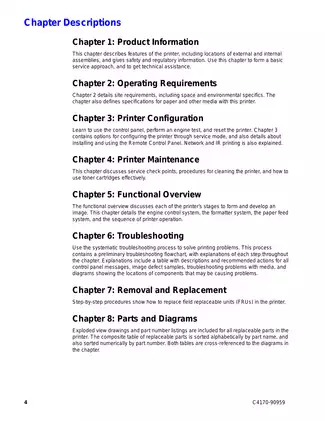

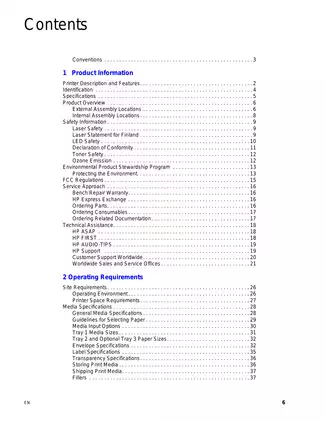

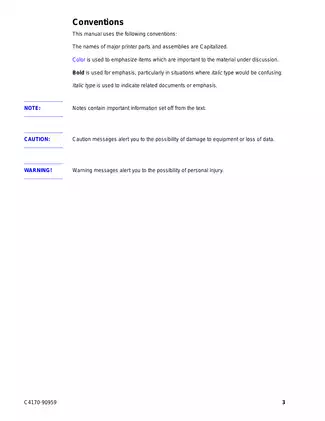

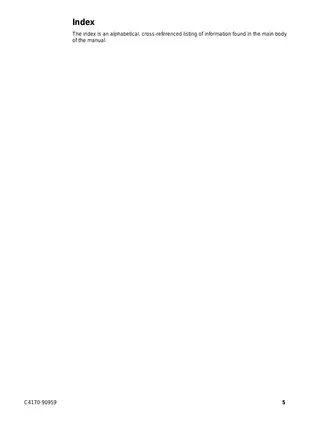

Sample pages from the 1998 HP LaserJet 2100 / 2100M / 2100TN Service Manual (310 p.) manual
Purchase & Download
Models Covered & Key Technical Specifications
HP LaserJet 2100, 2100M & 2100TN (C4170-90959) — 1998 Certified Blueprint Repository | LaserJet 2100 Series Set.
- Authorized Print Quality: 1200 x 1200 dpi is specified as the true text and graphics resolution Mapping.
- Critical Securement Values: For optimal circuitry protection, 5 Amps (100-127V) and 2.5 Amps (220-240V) indicates the minimum recommended circuit capacity Configuration.
- Operational Liquid Volume: The fusing heater is configured at 195 degrees Celsius (383 degrees Fahrenheit) during print temperature mode Benchmarks.
- Established Power Rating: Operating power consumption is measured at 225 W (average) for continuous printing operation Range.
- Measured Working Temperature: For optimal operation, 15 degrees to 32.5 degrees C (59 degrees to 89 degrees F) delivers the acceptable operating environment Sequences.
- Maximum Output Quality: Memory capacity spans 4 MB (standard) to 52 MB (maximum expansion) with 10 ppm print speed is designed for standard configuration Baseline.
Professional Workshop Service Manual & Technical Specifications
Full-Coverage Workshop Manual: HP LaserJet 2100 / 2100M / 2100TN Service Documentation Procedure-Library
Model-Designation: HP LaserJet 2100, 2100M & 2100TN (C4170-90959) // Series-Validation: Copier / Laser Printer Configuration Logic // Unit-Designations: 310-page technical reference spanning engine diagnostics, formatter systems, and electrophotographic process documentation.
| Integrated-Framework | Diagnostic-Logic | Logic |
|---|---|---|
| Printer Configuration Systems | Complete service procedures documented | See Chapters 3-7 |
| Image Formation Process | Six-stage electrophotographic cycle covered | Documented in Chapter 5 |
| Paper Feed Mechanisms | Tray 1, 2, and 3 pickup assemblies detailed | Complete specifications provided |
| Engine Controller Assembly | Microswitch, motor, and fuser control systems | Technical schematics included |
| Removal and Replacement | Field replaceable unit procedures | Step-by-step documentation |
Maintenance hierarchies are structured into Printer Configuration describing control panel operations, Service Mode describing page count settings, Functional Overview explaining formatter and engine control systems, Troubleshooting covering systematic fault isolation processes, and Removal and Replacement detailing disassembly sequences for all major components.
Reassembly procedures are specified for the 66 MHz Intel 80960JD formatter system, which receives print data from IEEE-1284 compliant parallel interfaces and LocalTalk ports while managing Resolution Enhancement technology at 600 dpi and native 1200 x 1200 dpi output. Service intervals are documented for the electrophotographic drum assembly rated at 5,000 pages with 5% coverage, including cleaning blade maintenance, primary charging roller inspection, and developing cylinder assessment. Component locations are identified for the laser scanner assembly utilizing a rotating six-sided mirror, beam detect sensors for synchronization timing, and focusing lens systems directing modulated laser output onto photosensitive drum surfaces.
Service procedures are documented for the engine controller assembly coordinating paper feed solenoids, main motor rotation at print and standby periods, fusing heater temperature regulation maintaining 195°C operational thresholds with 220°C thermal protection limits, and high-voltage power supply circuits delivering DC and AC bias to transfer roller assemblies. The manual documents torque specifications for transfer roller fastening mechanisms to ensure proper dynamic load distribution across the 11.5 kg base equipment weight. Calibration requirements are specified for the paper detection system employing photointerrupter sensors PS502 and PS503, registration shutter assemblies correcting media skew, and separation pad interfaces preventing multi-feed conditions across the three-tray input configuration supporting 100-sheet multipurpose and dual 250-sheet cassette capacities.
Professional configuration parameters include memory expansion options spanning 4 MB standard to 52 MB maximum capacity through three dual in-line memory module slots, PostScript Level 2 emulation with 35 built-in fonts factory-installed on 2100M and 2100TN variants, and Enhanced Input/Output slot accommodations for HP JetDirect print server cards enabling Ethernet, Token Ring, and Fast Ethernet network protocols. The documentation includes exploded-view diagrams cross-referenced to alphabetical and numerical parts listings, control panel LED pattern troubleshooting matrices correlating error codes 20 through 68 with recommended corrective actions, and functional check procedures including half self-test drum rotation verification and repetitive defect ruler measurements for roller circumference diagnostics.
