1976-1978 John Deere 340 Cyclone, 440 Cyclone, 340 Liquifire & 440 Liquifire - Comprehensive Snowmobile Service & Repair Manual
Product Gallery

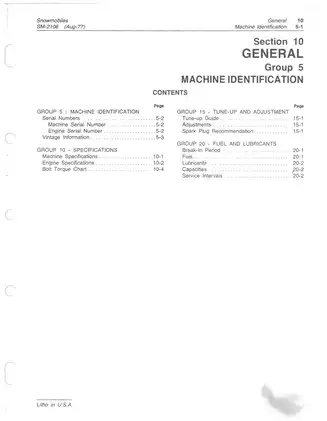

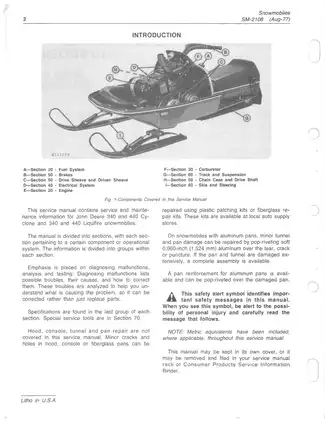

Sample pages from the 1976-1978 John Deere 340 Cyclone, 440 Cyclone, 340 Liquifire & 440 Liquifire - Comprehensive Snowmobile Service & Repair Manual manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 28040 / Richard Bell
- File Size:
- 89.81 MB
- File Type:
- Language:
- English
- Pages:
- 260
- Printable:
- Yes
- Estimated Download Time:
- 1.84 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Snowmobile
- Brand:
- John Deere
- Reviewed and Approved:
- Dec 31, 2025
John Deere Models and Parts Covered in this Snowmobile Manual
- John Deere 340 Cyclone (1976-1978)
- John Deere 440 Cyclone (1976-1978)
- John Deere 340 Liquifire (1976-1978)
- John Deere 440 Liquifire (1976-1978)
- John Deere J34FE (1976)
- John Deere J44FE (1976)
- John Deere J34LE (1976)
- John Deere J44LE (1976)
- John Deere J34FF (1977)
- John Deere J44FF (1977)
- John Deere J34LF (1977)
- John Deere J44LF (1977)
- John Deere J34FG (1978)
- John Deere J44FG (1978)
- John Deere J34LG (1978)
- John Deere J44LG (1978)
Complete Manual Information
John Deere Cyclone & Liquifire Service Manual - 1977 Edition
This technical service manual provides factory-authorized procedures for the maintenance, diagnostic analysis, and complete overhaul of high-performance reed valve engines. It contains precise internal benchmarks for both air-cooled and liquid-cooled systems to ensure peak power delivery and mechanical longevity. A critical maintenance requirement for operational uptime is the strictly mandated use of premium gasoline with a minimum anti-knock index of 92 for early serial numbers to prevent catastrophic piston crown detonation.

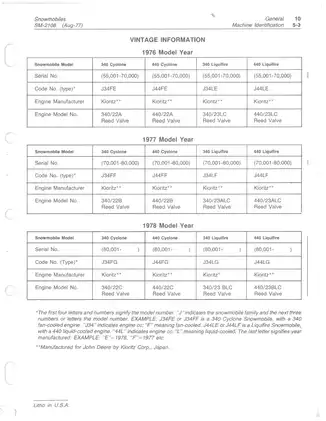

Technical Applicability & Serial Ranges
1976 Model Year (Serial No. 55,001 - 70,000)
- Cyclone 340 (J34FE): Kioritz 340/22A Fan-Cooled Reed Valve
- Cyclone 440 (J44FE): Kioritz 440/22A Fan-Cooled Reed Valve
- Liquifire 340 (J34LE): Kioritz 340/23LC Liquid-Cooled Reed Valve
- Liquifire 440 (J44LE): Kioritz 440/23LC Liquid-Cooled Reed Valve
1977 Model Year (Serial No. 70,001 - 80,000)
- Cyclone 340 (J34FF): Kioritz 340/22B Fan-Cooled Reed Valve
- Cyclone 440 (J44FF): Kioritz 440/22B Fan-Cooled Reed Valve
- Liquifire 340 (J34LF): Kioritz 340/23ALC Liquid-Cooled Reed Valve
- Liquifire 440 (J44LF): Kioritz 440/23ALC Liquid-Cooled Reed Valve
1978 Model Year (Serial No. 80,001 and up)
- Cyclone 340 (J34FG): Kioritz 340/22C Fan-Cooled Reed Valve
- Cyclone 440 (J44FG): Kioritz 440/22C Fan-Cooled Reed Valve
- Liquifire 340 (J34LG): Kioritz 340/23BLC Liquid-Cooled Reed Valve
- Liquifire 440 (J44LG): Kioritz 440/23BLC Liquid-Cooled Reed Valve
Field Service Efficiency & Reliability
- Integrated diagnostic logic tables allow technicians to isolate electrical versus fuel delivery malfunctions, reducing unnecessary component replacement.
- Precise clutching and gearing altitude charts (Sea Level to 12,000 ft) ensure optimized torque-sensing operation across diverse geographical terrains.
- Comprehensive Capacitor Discharge Ignition (CDI) testing protocols using dedicated service tools prevent ignition timing errors and engine kick-back.
Document Metadata
- Print Number: SM-210B (Aug-77)
- Total Pages: 259
- Media: Technical Service Publication
Technical Depth & Factory Benchmarks
Engine health is verified through strict compression testing; air-cooled units require 135-145 psi (9.3-9.9 bar), while liquid-cooled configurations must maintain 120-130 psi (8.2-8.9 bar). The manual details critical crankshaft runout limits, specifying a maximum permissible variance of 0.0008 to 0.0020 inch (0.020 to 0.050 mm) to prevent premature bearing failure.
System Architecture & Visual Aids
The documentation utilizes exploded-view diagrams for complex assemblies, including the Comet 102C drive sheave and Mikuni VM-series carburetors. Full-page wiring schematics distinguish between standard lighting circuits and optional electric start configurations, tracing current flow from the 12-pole alternator stator to the solid-state electronic pack.
Table of Contents
- Section 10: General (Machine ID, Specifications, Tune-Up, Fuel/Lubricants)
- Section 20: Engine (Analysis, Fan-Cooled Overhaul, Liquid-Cooled Overhaul, Specifications)
- Section 30: Fuel System (Mikuni Carburetors, Silencers, Fuel Pump/Tank)
- Section 40: Electrical System (CDI Ignition, Lighting, Electric Start Kit)
- Section 50: Power Train (Drive/Driven Sheaves, Drive Belt, Chain Case, Brakes)
- Section 60: Suspension (Slide Suspension, Tracks, Skis and Steering)
- Section 70: Service Tools (Essential/Convenience Tools, Dynamometer Testing)
Operational Limits & Specifications
- Ignition Timing: 0.096 in. BTDC (2.438 mm) at 4000 RPM (engine running).
- Drive Sheave Torque: 50 ft-lbs (68 Nm) (Do not exceed to avoid hub swelling).
- Spark Plug Reference: Champion QN-1 (gap 0.020", replace at 0.060").
- Lubricant Grade: SAE 90 oil for chain case; BIA-certified TC-W ashless 2-cycle oil for fuel premix.
- Fuel Ratios: 40:1 during initial break-in (25 miles); 50:1 for standard operation.
Download Instructions for John Deere Snowmobile Manual
Frequently Asked Questions - John Deere Snowmobile Manual
Is this manual suitable for beginners?
Yes, this John Deere manual is designed for both professional technicians and DIY enthusiasts. It includes step-by-step procedures with clear illustrations and safety guidelines for Snowmobile maintenance and repair.
What file format will I receive?
You will receive this manual as a PDF file (89.81 MB), which is compatible with all devices. The manual is fully searchable and printable for your convenience.
How quickly can I access the manual after purchase?
You'll receive instant access to your John Deere Snowmobile manual immediately after payment completion. The download link is valid for 3 days, with lifetime re-download guarantee.
Can I print specific sections of the manual?
Absolutely! This digital manual allows you to print any section you need, from individual pages to complete chapters, making it perfect for workshop use.
