Honda FL250 Odyssey UTV Shop Manual Set, 1980–1981 (P/N 6295002)

118 Pages • 1 Printable PDF (English) • Download

4.6starstarstarstarstar_half(5)
$14.79 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Model & Model Code: Odyssey (FL250)

Model Years: 1980–1981

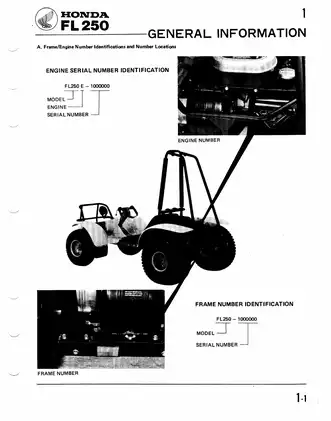

Serial Numbers: 1980 addendum: frame starting at TB04-2000001; engine starting at TBOE-2000001. 1981 addendum: frame starting at TB0400BC400001; engine starting at TB04 E-2400001. Base-manual component illustrations also distinguish arrangements before F. No. 1001560.


  • Engine: Air-cooled, 2-stroke, single-cylinder, 248 cc (base manual and 1980 addendum: FL250E)

  • Fuel System: PW carburetor, diaphragm fuel pump, 12-liter tank

  • Transmission: Salsbury torque-sensitive belt converter

  • Steering: Integrated steering wheel, trailing arm front suspension

  • Brakes: Self-adjusting cable-actuated main disc, parking brake with leading-trailing shoe and drum

  • Idle Speed: 1,500 rpm

  • Compression Pressure: 9 kg/cm² (129 psi) at 800 rpm

  • Spark Plug: Base manual: NGK B7ES; 1980 addendum: NGK BR7ES or DENSO W22ESR; 1981 addendum: NGK BR8ES or DENSO W24ESR (0.7–0.8 mm gap)

Honda Manual Features & Selected Content Preview

Publication Pages

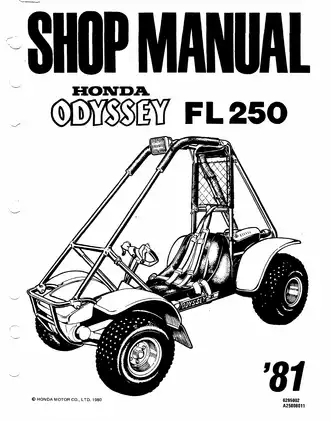

Honda FL250 Odyssey Shop Manual (P/N 6295002), November 1980 edition with 1981 addendum 106
Honda FL250 Odyssey 1980 Addendum (P/N 6295000Z), September 1979, including the posting sheet 12

Use the base chapters for routine maintenance and component repair. The addenda document model-year changes, and Honda directs readers of the 1981 addendum to the base manual and the 1980 addendum for procedures and data outside that chapter.

Honda refers readers to a separate Salsbury shop manual outside this set for more detailed belt-converter work.

PDF Navigation and Wiring Detail

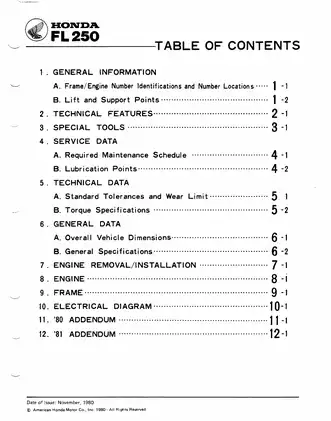

Text search, bookmarks, and diagram labels: Navigation relies on the printed contents. PDF text search and embedded bookmarks are unavailable. Zoom in to read the smallest wire-color codes and switch-contact labels.

The download is one printable, English-language PDF with 118 pages. The total includes the main cover, the addendum posting sheet, eight blank pages, and the revised reduction-unit and CDI pages.


Engine Overhaul, Chassis Service, and Ignition Tests

This selection of workshop topics includes major repair and diagnostic procedures. The manual also provides lift and support illustrations and a lubrication chart.

  • Engine repair: Engine removal and installation, cylinder and piston inspection, crankcase separation, crankshaft checks, and selective-fit connecting-rod bearing tables.
  • Fuel, intake, and exhaust: PW carburetor disassembly and float-height adjustment, diaphragm fuel-pump service, air-cleaner maintenance, and muffler and spark-arrester decarbonizing.
  • Belt converter and reduction unit: Salsbury drive and driven pulley service, spider removal and installation, drive-belt inspection and replacement, and reduction-case disassembly.
  • Steering and suspension: Steering-column inspection, throttle-linkage adjustment, front shock-absorber disassembly, steering-knuckle and tie-rod ball joint service, and toe-in adjustment.
  • Brakes, wheels, and axle: Disc-caliper servicing, pad and disc inspection, parking-brake adjustment, rear brake-drum inspection, split-rim wheel service, and rear-axle removal.
  • Electrical diagnosis: Flywheel magneto and contact-breaker service, CDI tests, ignition-coil and generator checks, wiring diagrams, switch-contact tables, and harness routing.

The manual is written for technicians and mechanically proficient owners who are familiar with standard workshop procedures and have access to the specified service tools.

Engine Measurements and Carburetor Checks

The engine chapters distinguish standard dimensions from service limits for the cylinder, piston, rings, wrist pin, and crankshaft. Color-coded bearing-selection tables use wrist-pin, crank-pin, and connecting-rod identifiers to match the needle bearings before ordering replacements.

The torque tables distinguish the cylinder-head flanged nuts from the special nuts and list fastener-specific values for the drive pulley, reduction unit, and chassis. The recoil-starter section provides step-by-step reassembly instructions and shows how the return spring, pulley, and ratchet fit together.

Carburetor illustrations identify the jets, needle, starter valve, and float mechanism. Honda calls for checking ignition and compression before carburetor adjustment so a fuel adjustment does not mask an underlying fault.

Salsbury Pulley and Chain-Reduction Service

The drive-pulley removal procedure identifies the Salsbury #602090 clutch puller and #602112 spanner. Driven-pulley illustrations show the cam, Morton key, and spring assembly, including the tooling used to control spring preload.

Reduction-unit views show primary-shaft and thrust-washer orientation. The chapter pairs bearing-play, chain-wear, and sprocket inspections with reassembly illustrations and an oil-capacity specification.

Front-End and Brake Inspection

Front-suspension illustrations show the king-pin, knuckle, and tie-rod ball joints, along with the tooling for shock spring compression and front hub bearing and oil-seal installation. Toe-in and steering-effort checks help assess the front end after service.

Brake procedures cover the caliper adjuster, pad replacement, disc runout and thickness, and parking-brake drum and lining wear. The rear-axle section also gives an axle-bend inspection and shows where to check the splines for wear.

Contact-Breaker and CDI Differences

The base chapters cover static timing adjustment and dynamic timing inspection for the contact-breaker ignition. The 1980 addendum documents the generator and lighting changes, including a wiring diagram for the Canada-only taillight circuit.

The 1981 addendum covers fixed CDI timing, a strobe check, and tests for the exciter, pulse, and lighting coils. The June 1982 revision gives separate CDI test readings for the Sanwa 7308-0020000 and Kowa TH-5H testers. A harness-routing illustration identifies the CDI unit, ignition coil, and lighting and stop switches.

Sample Cylinder and Ignition-Coil Specifications

For the FL250E, Honda lists a standard cylinder bore of 70.0–70.01 mm and a 70.1 mm service limit. Standard end gap is 0.2–0.4 mm for both piston rings.

For the 1981 CDI-equipped model, the ignition-coil inspection lists 0.2–0.8 Ω across the primary leads and 8–15 kΩ across the secondary leads.
