Honda NX650 Dominator 1988–1989 Service Manual (P/N 61MN901)

This Honda factory service manual covers the 1988–1989 Honda NX650 Dominator and corresponds to Honda Item/Part No. 61MN901. Coverage includes U.S. equipment and the California emissions configuration, with model-year differences identified as '88 and AFTER '88.

PDF Chapters and Wiring Diagram Readability

Search, navigation, and diagram detail: PDF text search and embedded bookmarks are not available in the chapter files. Some small wire-color codes and connector labels in the full wiring diagrams remain difficult to read even when enlarged. The separate charging, ignition, and starter-system diagrams have more readable labels.

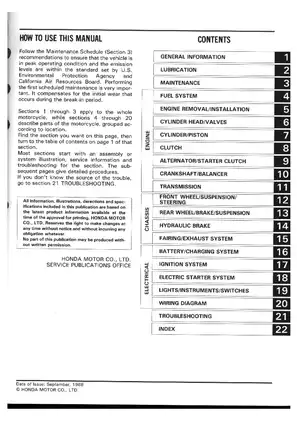

The RAR download contains 22 printable PDF chapter files in English, totaling 252 pages. That total includes one original cover page and one contents/user-guide page. The files run from General Information through the final index.

Engine Overhaul, Chassis Repair, and Electrical Diagnosis

These coverage highlights describe selected contents rather than the complete table of contents. Other included topics range from side-stand service to exhaust-pipe and muffler removal.

• Engine and valve train: Engine removal and installation, cylinder-head cover and camshaft service, cam-chain tensioner work, rocker arms, decompressor service, valve-guide replacement, valve-seat refacing, and cylinder/piston repair.

• Clutch and bottom end: Clutch overhaul, crankcase separation and assembly, crankshaft and balancer removal and alignment, and crankcase-bearing replacement.

• Transmission repair: Gearbox disassembly and assembly, gear and shaft inspection, and shift-fork, shift-drum, and gearshift-spindle service.

• Lubrication, fuel, and emissions: Dual-rotor oil-pump inspection, oil-strainer and pipe service, carburetor overhaul, float and pilot-screw settings, idle-drop adjustment, and California emissions-system tests.

• Wheels, suspension, and brakes: Wheel-bearing replacement, spoke lacing and balancing, fork overhaul, steering-stem bearing work, rear drum-brake repair, hydraulic bleeding, and master-cylinder and caliper overhaul.

• Rear suspension and final drive: Shock removal, spring setup, damper testing, linkage and swingarm needle-bearing replacement, and drive-chain and slider inspection. Internal damper overhaul is outside the service scope.

• Electrical diagnosis and diagrams: Battery/charging, CDI ignition, and electric-starter system diagrams; cable-and-harness routing; separate '88 and AFTER '88 wiring diagrams; and starting, charging, no-spark, and performance fault-isolation charts.

Its teardown depth, measurement-based inspections, and reliance on pullers, drivers, electrical meters, and Honda service tools make it best suited to professional technicians and mechanically qualified owners with an equipped workshop.

Maintenance Schedule and Engine-In-Frame Work

The factory maintenance schedule begins with the initial 600-mile service and continues through 24,000 miles, with repeat intervals beyond that point. It identifies inspection, cleaning, replacement, adjustment, and lubrication requirements for the fuel system, air cleaner, spark plug, valve clearance, engine oil and filter, drive chain, brakes, clutch, suspension, wheels, tires, steering-head bearings, and emissions equipment.

Additional notes call for more frequent attention under off-road, wet, dusty, rain, or sustained full-throttle use.

Cylinder-head, camshaft, cylinder/piston, clutch, alternator, and starter-clutch work can be performed with the engine in the frame. Crankshaft, balancer, crankcase-bearing, and transmission repairs require engine removal and crankcase separation, making the job boundary clear before labor and tooling are committed.

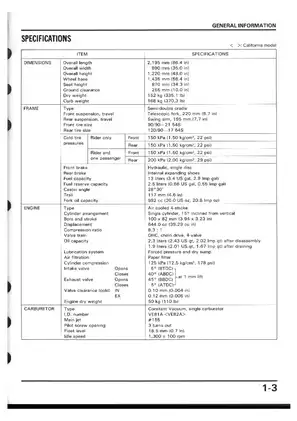

Step-by-step procedures cover jobs such as carburetor disassembly and reassembly, valve-guide replacement, and fork overhaul. Related references include component-specific torque tables, capacities and approved-fluid data, wear limits, valve and piston clearances, shaft and wheel runout limits, brake inspection data, and electrical resistance, voltage, charging, and vacuum-test specifications.

1988/1989 Differences and California Equipment

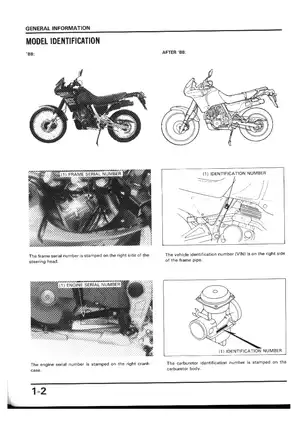

Honda marks separate '88 and AFTER '88 information for model identification, cable and harness routing, crankcase-breather layout, oil-pump assembly and its installation check, fairing and rear-fender parts, and the full wiring diagram.

California-model material covers the distinct carburetor identification, purge-control valve, charcoal-canister plumbing, secondary air-supply system, and vacuum-hose routing. U.S. high-altitude carburetor adjustment is also included.

Electrical testing extends to the regulator/rectifier, alternator stator, ignition coil, pulse generator, starter relay, clutch diode, and clutch and neutral switches. Ignition timing can be checked, but the CDI unit is non-adjustable.

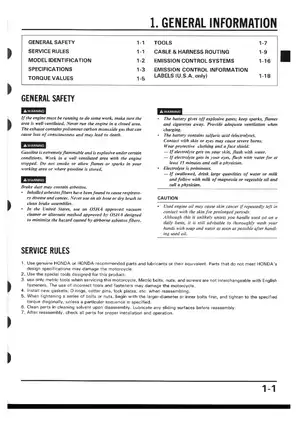

Special Tools and Assembly Cautions

The tool tables identify compression-gauge attachment 07908-KK60000, cam-chain tensioner holder 07973-MG30002 or 07973-MG30003, valve-spring compressor 07757-0010000, flywheel holder 07725-0040000, fork-seal driver 07947-KA50100, and steering-stem socket 07916-KA50100.

Tightening the carburetor pilot screw against its seat can damage the seat, while pinching the vacuum diaphragm under its cover can damage the diaphragm and upset fuel metering. The crankcase halves must not be pried apart or forced together; resistance calls for a check of shaft and dowel alignment before assembly continues.

Fuel-system work, brake repair, battery charging, running-engine tests, and handling of the nitrogen-charged shock involve specific hazards. Follow the manual's factory warnings, isolation procedures, and protective-equipment requirements.

Oil-Pump Inspection: Selected Clearances

The lubrication specifications list oil-pump body clearance at 0.15–0.21 mm, with a 0.25 mm service limit. The inspection procedures cover the clearance between each outer rotor and its pump body.

Oil-pump end clearance is specified at 0.02–0.08 mm, with a 0.12 mm service limit. The pump section includes end-clearance checks for both pump stages and separate assembly illustrations for the '88 and AFTER '88 designs.
