2005 Yamaha WR450F / WR450FV Owner’s Service Manual (P/N 5TJ-28199-43)

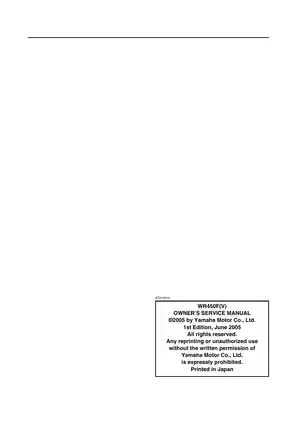

Yamaha’s WR450F(V) Owner’s Service Manual, reference 5TJ-28199-43, 1st Edition, June 2005, covers the WR450FV for USA, CDN, AUS and NZ markets and the WR450F for EUROPE and ZA. Its seven chapters combine operating information, scheduled maintenance, internal repair and race setup.

• Engine repair: Engine removal, cylinder-head and valve service, camshaft timing, piston inspection, crankcase separation and crankshaft installation.

• Clutch and transmission: Wet multi-plate clutch service, kick axle and shift shaft work, gearbox disassembly, and shift-cam and shift-fork inspection.

• Fuel and intake: Keihin FCR MX39 carburetor disassembly, float-height inspection, accelerator-pump checks, leak-jet tuning and air-induction system testing.

• Cooling and lubrication: Radiator-cap and cooling-system pressure tests, coolant replacement, water-pump and oil-pump service, and lubrication diagrams.

• Chassis and brakes: Front-fork oil-seal replacement, steering and swingarm bearing service, brake-caliper and master-cylinder repair, and hydraulic brake bleeding.

• Electrical diagnosis: Map-controlled CDI, TPS, AC magneto, starter-motor, charging, lighting and signaling-system tests, supported by wiring diagrams and troubleshooting flowcharts.

• Operation and race setup: Multi-function display BASIC and RACE modes, torque-check point charts, maintenance interval tables, and carburetor and suspension setting charts.

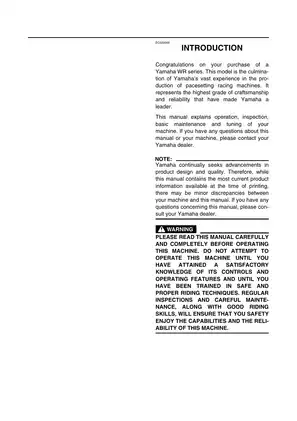

Owners get operating and routine-maintenance information; the internal repair sections are suited to mechanics familiar with precision measurement and Yamaha special tools. Yamaha recommends dealer maintenance for the front fork.

Engine, Valve Train and Transmission Repair

The five-valve cylinder-head procedures include valve-guide inspection, valve-seat work and intake/exhaust pad selection tables. Camshaft instructions cover the decompression mechanism and timing-chain tensioner. The handling notes explain how uneven camshaft-cap tightening can damage the cylinder head, caps and camshafts.

Transmission inspection goes beyond gear removal: it addresses engagement dogs, shift-fork grooves, bearing condition and fork placement during assembly. Crankshaft work includes runout and connecting-rod clearance checks.

The AC magneto and starter-clutch section documents woodruff-key inspection, rotor alignment and a multi-stage rotor-nut tightening procedure. The special-tool list identifies the crankcase separator YU-1135-A / 90890-01135 and rotor puller YM-04142 / 90890-04142.

Carburetor Tuning and Cooling-System Tests

Carburetor inspection covers needle-valve wear, the air-cut valve and accelerator-pump diaphragm. Tuning charts distinguish main and pilot circuits, needle position and leak-jet effects on throttle response. The symptom-based setting examples help relate poor acceleration to the relevant circuit instead of treating every hesitation as the same adjustment.

Air-filter servicing includes cleaning, oiling and installation checks. Cooling-system coverage separates radiator-cap testing from system leak testing, with tester and adapter references. Water-pump instructions extend to the impeller shaft, bearings and seals.

Fork, Brake and Rear-Suspension Service

Front-fork procedures cover damper-rod and base-valve inspection, seal installation and oil-level adjustment, including market-specific baseline settings. The assembly notes explain how a falling damper rod can damage the internal valve.

Brake procedures include caliper and master-cylinder disassembly, seal replacement and master-cylinder cup orientation. Steering and swingarm sections cover bearing replacement and linkage inspection.

Rear-shock coverage includes spring and mounting-bearing service, preload adjustment, and rebound and compression damping settings. Yamaha warns against opening the nitrogen-pressurized shock cylinder or reservoir. Suspension setting charts connect handling symptoms with the components and adjustments to evaluate.

Electrical Fault Tracing and Display Checks

The Starting Circuit Cut-Off System diagram explains the clutch and neutral interlocks. Together with the starter troubleshooting chart, it helps distinguish an interlock fault from a starter-motor problem before replacement parts are selected.

Connector test views specify lead colors and electrical test conditions. The Signaling System section checks multi-function display input/output and speed-sensor output; the display function diagram explains BASIC and RACE mode operation.

TPS handling notes warn that loosening its mounting screws unnecessarily can reduce engine performance. Observe the manual’s electrical precautions against accidental short circuits.

A Preview of Engine Inspection and Cooling Data

Engine inspection data includes a cylinder-head warpage limit of 0.05 mm and a standard piston-to-cylinder clearance of 0.040–0.065 mm. Cold intake-valve clearance is 0.10–0.15 mm, with pad selection tables supporting adjustment.

Cooling specifications distinguish the listed radiator capacity of 0.71 L from the coolant capacity of 1.56 L including all routes.

Searchable Text, Bookmarks and Wiring Detail

Search and diagram detail: Searchable PDF text covers operating, repair, electrical and tuning sections. Embedded bookmarks group the four languages and link to individual sections. Small wire-color and connector labels in the main wiring diagram are readable when enlarged.

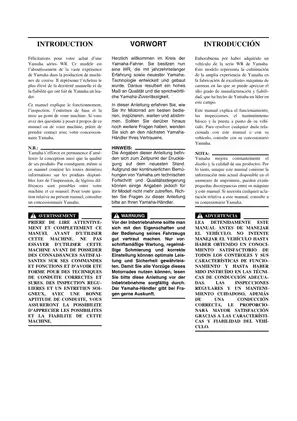

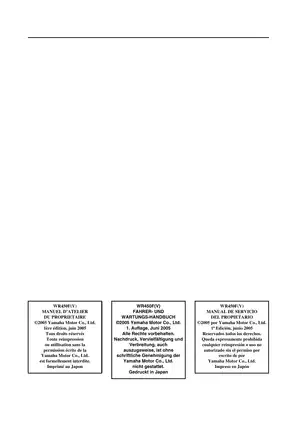

The manual is supplied as one printable 786-page PDF in English, French, German and Spanish. The total includes the front and back covers and two blank pages.
