Suzuki LT-Z400 Quadsport 400 ATV Service & Parts Manual Set, 2003–2008 (P/N 99500-43060-01E)

The service manual supplies the Suzuki repair procedures; the catalogs identify replacement parts by model and assembly. The Suzuki catalog’s K3/K4 and K5/K6 application labels help distinguish revised components before ordering.

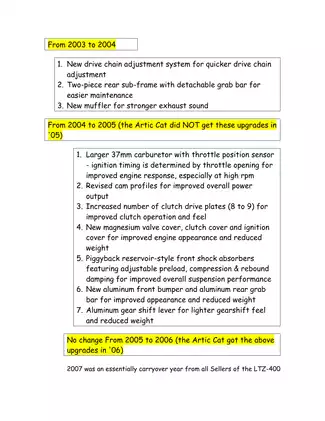

Repair coverage: The workshop procedures cover the LT-Z400K3 configuration. Later Suzuki applications are represented by selected parts illustrations and a model-change note, rather than complete later-model service supplements. No 2008-specific factory supplement is included. The Kawasaki and Arctic Cat publications are parts catalogs; Arctic Cat assembly procedures require a separate Arctic Cat service manual.

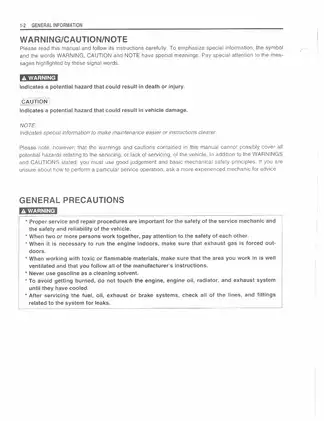

PDF Search, Bookmarks, and Download Contents

Text search and diagram detail: The Suzuki service chapters do not support PDF text search; only the added model-change page is searchable. All four parts catalogs have searchable text. Embedded bookmarks are available in the service manual and both Arctic Cat catalogs, but not in the Suzuki or Kawasaki parts catalogs. Small labels in the main wiring diagram require zooming.

ZIP download containing five printable English PDFs, 566 pages total. This total already includes the service manual’s cover, one added model-change note page, and two blank pages, together with the catalogs’ own covers, contents, and indexes where present.

Engine and Chassis Repair, Electrical Tests, and Parts Identification

This selection of covered topics is not a complete contents list. Further sections address spark-arrester cleaning and headlight-bulb replacement.

• Maintenance and condition checks: Scheduled service, valve-clearance adjustment, compression testing, oil-pressure checks, lubrication, and routine inspection procedures.

• Engine and drivetrain repair: Step-by-step engine removal, disassembly, inspection, and reassembly, including clutch, transmission, crankshaft, counterbalancer, starter-clutch, and reverse-system work.

• Fuel-system service: Fuel-tank, valve, and strainer inspection, plus Mikuni BSR36 carburetor disassembly, cleaning, float inspection, adjustment, and reassembly.

• Brakes and chassis: Hydraulic brake repair and bleeding, wheel and hub service, steering, suspension, swingarm bearings, rear axle, tires, and drive-chain adjustment.

• Cooling-system diagnosis: Radiator and cap pressure testing, fan-motor and temperature-switch checks, thermostat inspection, and water-pump repair.

• Electrical troubleshooting: Charging, ignition, and starting-system test procedures, battery checks, diagnostic flowcharts, circuit diagrams, and a complete vehicle wiring diagram.

• Illustrated parts identification: Model-specific exploded views, numbered components, part listings, and selected production breakouts for Suzuki, Kawasaki, and Arctic Cat applications.

This technical reference set is suited to experienced ATV mechanics, restoration shops, and capable owners equipped with a torque wrench, multimeter, precision measuring equipment, and the specified pullers and installation tools.

Engine Inspection and Reassembly

Cylinder head and valvetrain: Coverage includes camshafts, automatic-decompression inspection, tappet-shim selection charts, valve guides and seats, cam-chain components and timing, cylinder and piston measurements, and piston-ring inspection.

Bottom end and transmission: Connecting-rod and crankshaft checks accompany counterbalancer, starter clutch, torque limiter, oil-pump, clutch, shift-mechanism, and reverse-lock procedures. Transmission illustrations show the positions of gears, washers, and snap rings. The automatic-decompression assembly and starter torque limiter are inspected as assemblies rather than internally rebuilt.

The primary-drive gear nut has left-hand threads, a detail that matters when avoiding thread damage during disassembly. The crankshaft-installation caution explains how hammering the crankshaft into the crankcase can disturb its alignment.

Suzuki special-tool references include crankcase separator 09920-13120 and crankshaft installer 09910-32812, along with clutch-holding, rotor-removal, rear-axle, and valve-service tools. Torque tables and service data cover wear limits, clearances, runout, spring dimensions, electrical resistance, and pressure-test criteria.

Carburetor and Fuel Supply

Carburetor inspection addresses the diaphragm, piston valve, needle valve, valve seat, jets, passages, and float chamber. Market-specific pilot-screw information distinguishes the California configuration from the USA and Canadian settings.

Brakes, Steering, and Suspension

Brake procedures extend to caliper pistons and seals, master-cylinder inspection, fluid replacement, bleeding, and parking-brake adjustment. Brake work requires the specified fluid, careful contamination control, and final leak and operation checks.

Chassis detail includes wishbone pivot bearings, steering-shaft bushings, tie rods and toe adjustment, suspension linkage, swingarm bearings, axle-housing bearings, and reverse-lock release-cable adjustment. Rear-shock coverage is limited to inspection, replacement, and external spring-preload and damping settings.

Cooling and Dry-Sump Lubrication

Water-pump coverage includes impeller, bearing, mechanical-seal, and oil-seal inspection and replacement. The cooling section also distinguishes the fan thermo-switch from the coolant-temperature warning switch.

The engine-lubrication system chart traces the dry-sump oil circuit, while separate illustrations show oil-tank hoses, pipes, and return connections.

Electrical Fault Isolation and Routing Diagrams

Charging-system diagnosis links current-leakage, regulated-voltage, generator, and regulator/rectifier checks. Ignition testing includes ignition-coil, pickup-coil, and signal-coil measurements; starting-system coverage adds starter-motor brushes, commutator, armature, relay, and switch checks.

The troubleshooting charts connect symptoms with component tests, helping narrow a no-charge, no-crank, or no-spark complaint before replacement parts are selected. Battery inspection and charging information accompany these tests.

Illustrated references include the complete wiring diagram, charging-system circuit, starter-system circuit, ignition-system circuit, cooling-fan circuit, and engine-lubrication chart. Routing views cover the wiring harness, control cables, fuel and oil hoses, cooling hoses, and front and rear brake lines.

Parts-Catalog Application Differences

Suzuki application breakouts distinguish clutch, water-pump, wiring-harness, frame, steering, suspension, bodywork, and rear-wheel components across the listed K3/K4 and K5/K6 groups. The Kawasaki and Arctic Cat catalogs retain their own model-specific part numbers and exploded assembly views.

A Preview of Valve and Thermostat Specifications

For LT-Z400K3 valve inspection, the service manual specifies cold tappet clearances of 0.10–0.20 mm at the intake and 0.20–0.30 mm at the exhaust. The accompanying shim-selection charts support the adjustment information.

Thermostat bench-test data specify an opening temperature of approximately 75°C and valve lift over 6.0 mm at 90°C. These are examples of the component-specific inspection criteria included in the cooling section.
