1990 Toyota Tercel Automatic Transmission Repair Manual

Expert-level repair procedures for the 1990 Toyota Tercel automatic transmission. Covers components, disassembly, and reassembly with detailed diagrams and part numbers.

4.6starstarstarstarstar_half(5)
visibility Preview Available
Toyota 1990 Toyota Tercel Automatic Transmission Repair Manual manual page preview - page 1 of

Sample pages from the 1990 Toyota Tercel Automatic Transmission Repair Manual manual

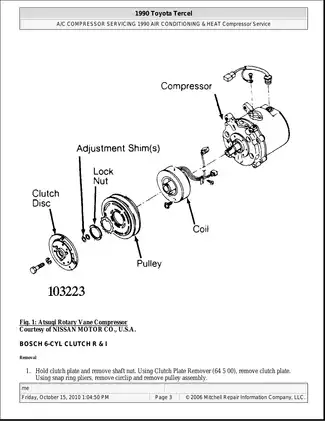

Toyota 1990 Toyota Tercel Automatic Transmission Repair Manual manual preview page 3 - thumbnail
Toyota 1990 Toyota Tercel Automatic Transmission Repair Manual manual preview page 4 - thumbnail

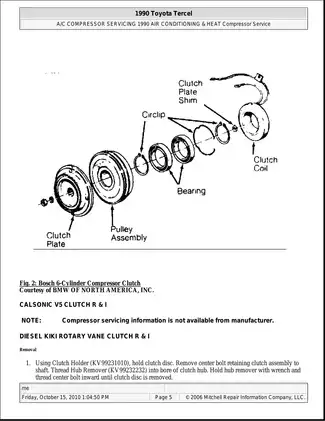

Toyota 1990 Toyota Tercel Automatic Transmission Repair Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$18.66 (incl. VAT) Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Document Details

keyboard_arrow_down
Document Number / Seller:
28130 / Karen Jones
File Size:
26.66 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Car
Last updated / verified
Apr 24, 2025

Models Covered & Key Technical Specifications

1990 Toyota Tercel Automatic Transmission Service Manual Technician-level documentation for the 1990 Toyota Tercel automatic transmission. This manual covers disassembly, component inspection, and reassembly procedures for all major systems.

  • Transmission Application Data: C140 transmission is specified for the 1988-1990 Tercel Sedan.
  • Fluid Capacity Specifications: The Tercel requires 2.6 Qts. (2.5 L) of Dexron-II ATF for refill.
  • Shift Lever Preload: Requires a shim of 1.6-3.2 oz. (50-100 g) for correct adjustment.
  • Torque Specifications Included: Detailed torque values for all fasteners are provided throughout.
  • Differential Backlash Measurement: Standard backlash for one side gear is .002-.008" (.05-.20 mm).
  • Input Shaft Clearance: 3rd Gear Thrust Clearance standard is .004-.014" (.10-.35 mm).

Manual Description & Preview

1990 Toyota Tercel Automatic Transmission Service Manual: Toyota Transmission Model C140 repair: 1988-90 Sedan Specification-Set

Transmission Application: Tercel 4-Speed // System Identifier: C140 Automatic Transmission // Model Designation: Detailed Repair Procedures.

Transmission Components Overview

Integrated-Framework Diagnostic-Logic Validation-Data
Input Shaft & Components Differential Assembly Torque Converter Specifications
Output Shaft (Countershaft) Shift & Select Lever Assembly Front Suspension Components
Manual Transmission Overhaul Steering Column Components Clutch Assembly

Maintenance hierarchies are structured into: Transmission Application, Identification, Lubrication & Adjustments, Troubleshooting, On-Vehicle Service, Transmission Disassembly, and Transmission Reassembly. Correct procedures and specifications are included for all major systems and components to ensure proper operation. The document includes coverage of differential disassembly and reassembly, ensuring correct backlash settings are achieved for optimal performance.

This manual details the repair and servicing procedures for the 1990 Toyota Tercel automatic transmission, specifically covering the C140 transmission model. It provides comprehensive information on all aspects of transmission maintenance, from fluid checks and refills to detailed disassembly and reassembly of internal components. Specific sections cover the input shaft, output shaft, differential assembly, and shift/select lever mechanisms, offering clear instructions and necessary specifications. The manual also includes torque specifications for critical fasteners and procedures for checking component clearances, such as gear thrust and lateral movements, to ensure proper assembly and function.

FAQ

Is technical information for various A/C compressor models included in this service manual? keyboard_arrow_down

Document covers servicing procedures for multiple compressor types, including Atsugi, Bosch, Calsonic, Diesel Kiki, Harrison, Hitachi, Matsushita, and Nippondenso units.

Can I find details regarding clutch-to-pulley clearance and fastener tightening specifications in the manual? keyboard_arrow_down

Manual contains specification tables for clutch clearances and torque values for center bolts and mounting screws. These sections provide the necessary technical data for the various compressor models featured in the document.

Does the document provide exploded view diagrams for the listed air conditioning compressors? keyboard_arrow_down

Manual includes multiple exploded view illustrations that show the assembly and component arrangement for various compressor systems.

Are there specific procedures for handling A/C refrigerant and shaft seals covered in the content? keyboard_arrow_down

Manual includes sections on system discharging, handling of refrigerant oil, and seal components. These chapters detail the necessary technical approaches for managing compressor internals and related fittings.

Which format and access methods are provided for this Toyota Tercel manual? keyboard_arrow_down

Product is delivered as a downloadable PDF file. You will receive immediate access after your payment is processed, and the file is compatible with all standard PDF-reading devices. You retain lifetime access to the document once it has been downloaded.
