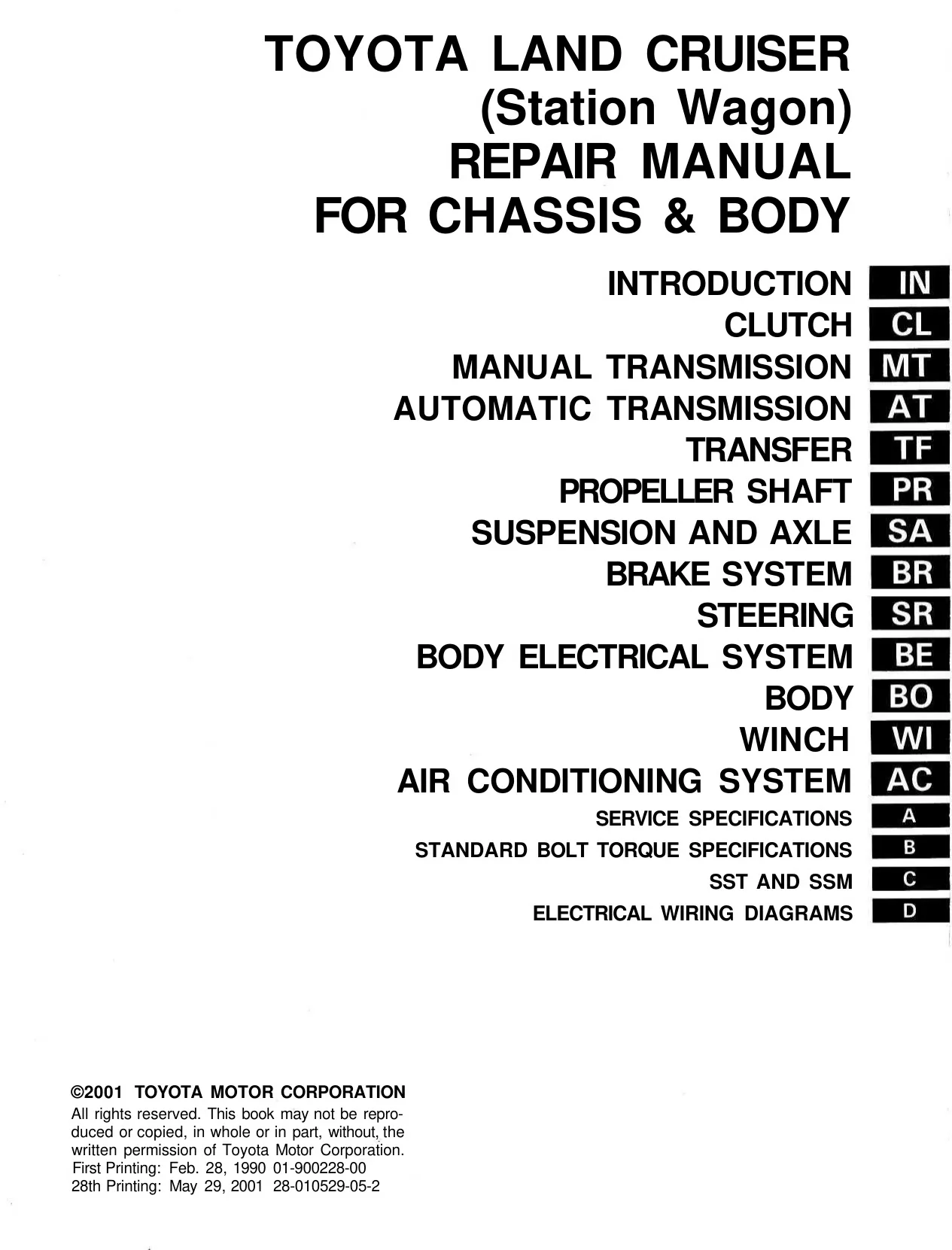

Toyota Land Cruiser 80 Series 1989–1992 Repair Manual Set (P/N RM184E)

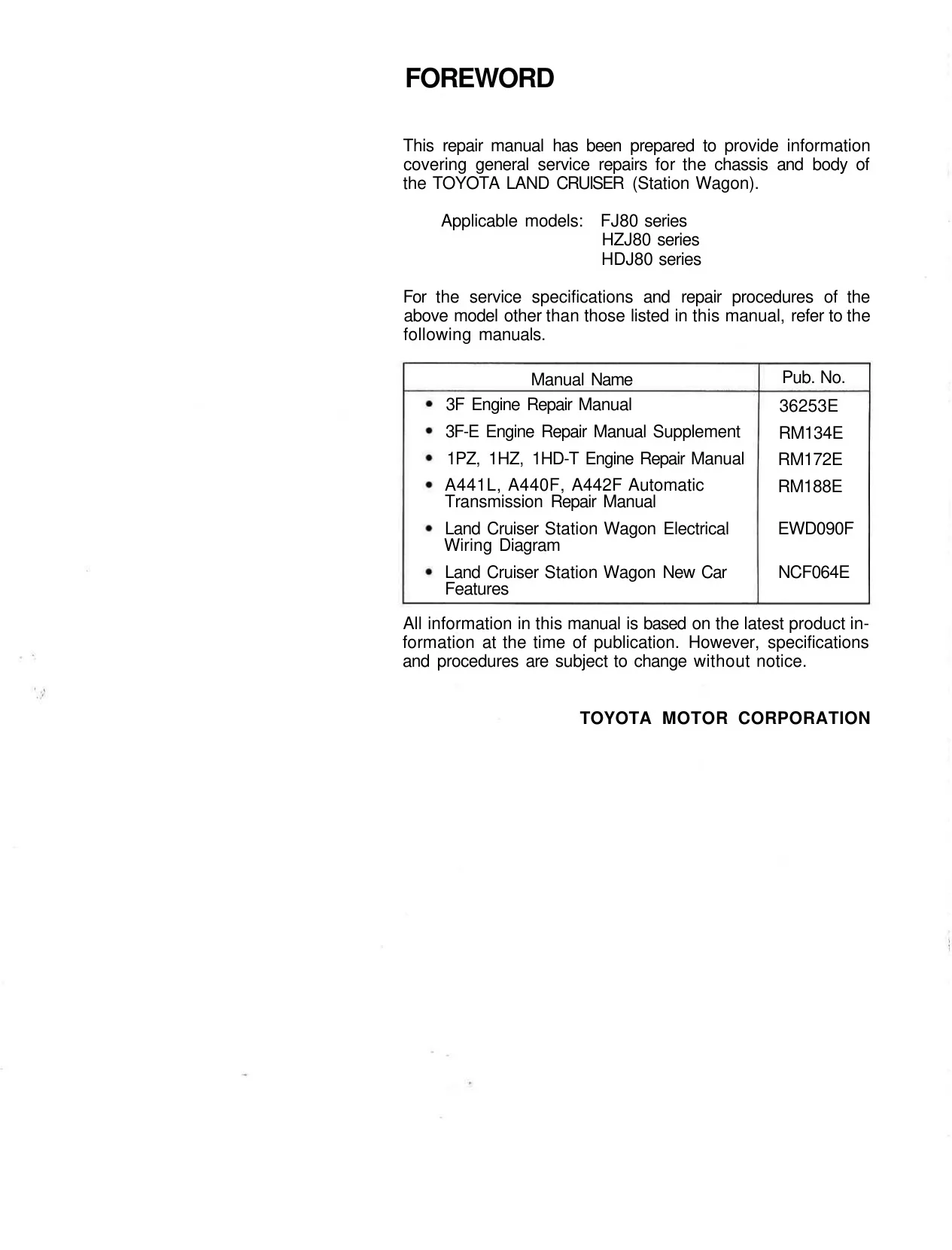

The chassis manual references both included gasoline-engine publications. The 3F-E supplement covers engine-specific differences and relies on the 3F manual for basic engine repair.

Coverage limits: Internal repair of the 1HZ and 1HD-T diesel engines requires the separate RM172E manual. Full automatic-transmission overhaul requires RM188E. Neither publication is included.

PDF Search, Bookmarks and File Contents

Search and diagram detail: Both engine PDFs support OCR text search and have section bookmarks. The chassis PDF also has section bookmarks, but its Service Specifications appendix and most rear wiring pages lack searchable text. Small wire-color codes, connector numbers and ECU pin labels in dense diagrams require zooming.

The ZIP download contains three printable PDFs, with the engine volumes inside a nested ZIP. The 1,430-page total includes 10 cover and preliminary pages, eight memo pages and one blank page in the 3F manual, and one memo page in the 3F-E supplement.

Drivetrain, Chassis and Gasoline Engine Repair

The following selected coverage highlights major workshop tasks. Other included topics range from headlight-cleaner diagnosis to seat-belt inspection.

• Gasoline engines: 3F mechanical overhaul and carburetor service, plus 3F-E repair differences, EFI troubleshooting and component testing.

• Manual transmissions and transfer: Step-by-step H140F, H150F and H151F disassembly and assembly; HF2A full-time and HF1A part-time repair, center-differential service and motor-shift control tests.

• Automatic transmissions: A440F and A442F stall, time-lag, hydraulic-pressure and road tests; valve-body and throttle-cable repair, plus transmission removal and installation.

• Axles and differentials: Semi-floating and full-floating rear-axle repair, limited-slip differential overhaul, electric lock-actuator tests, and bearing-preload, backlash and gear-contact adjustments.

• Brake systems: Booster overhaul, vacuum-pump service, disc and drum brake repair, and pressure testing of the Load Sensing Proportioning and By-Pass Valve (LSP & BV).

• Steering systems: Manual steering, standard power steering and Progressive Power Steering (PPS), with pump and gear-housing overhaul, hydraulic testing, bleeding and electronic diagnosis.

• Winches: Mechanical PTO, drive-shaft and worm-gear overhaul; electric-winch brake, motor and magnet-switch inspection and testing.

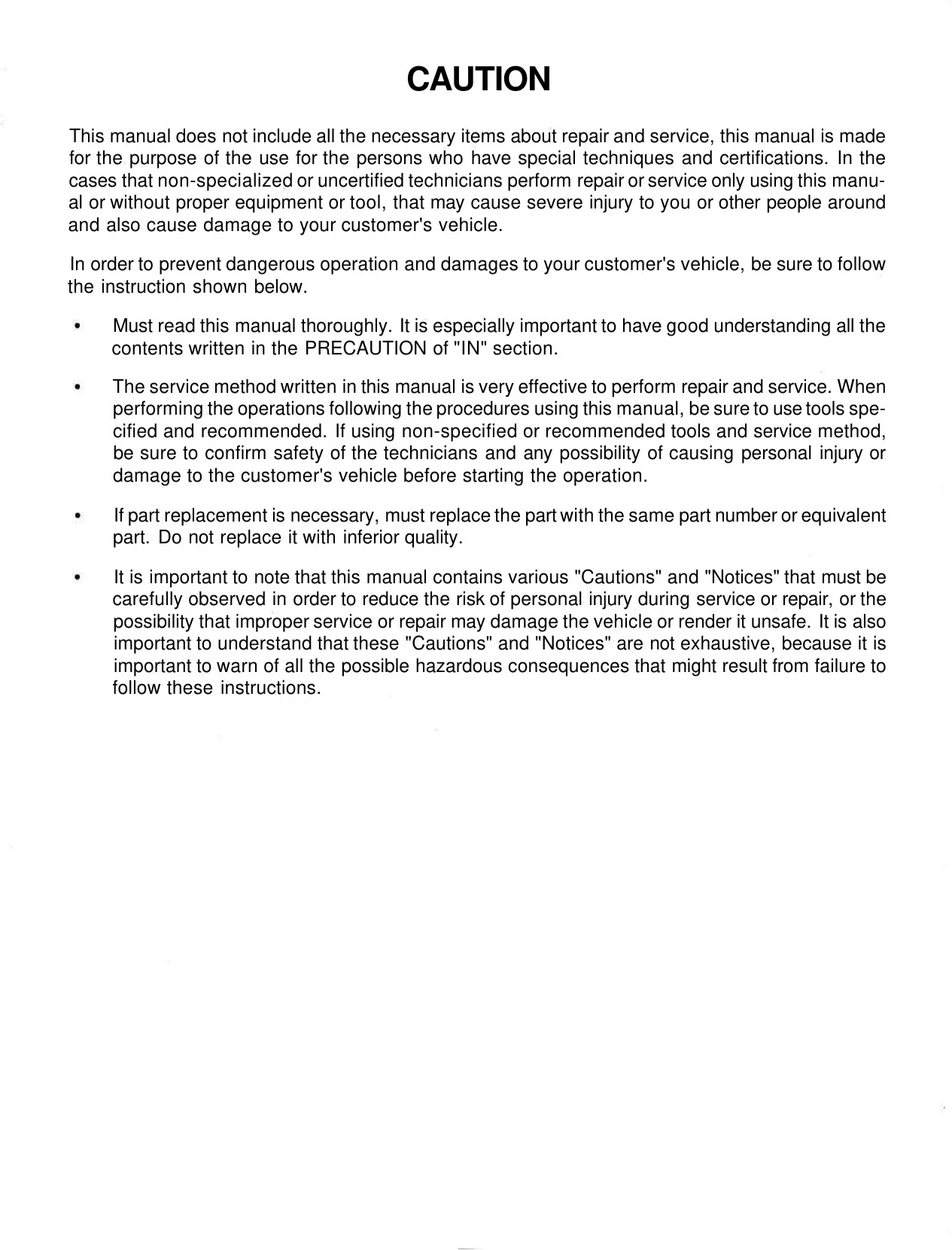

Toyota specifies trained, certified repair personnel using the prescribed shop equipment; brake, refrigerant and vehicle-lifting work require the relevant precautions.

Clutch, Propeller Shafts and Suspension

Clutch coverage extends to the master and release cylinders, booster and accumulator, with pedal adjustment and hydraulic bleeding. Propeller-shaft procedures cover universal-joint replacement and assembly orientation.

Front-axle work includes freewheeling hubs, steering-knuckle bearings and axle-shaft inspection. Suspension procedures address coil springs, shock absorbers, lateral control rods, leading-arm bushings, and rear upper and lower control arms.

Toyota warns that improper torque-converter insertion can damage its oil seal. Incorrect on-vehicle wheel balancing on full-time 4WD models can damage the center differential or transfer gears.

Body Repairs and Frame Measurements

Body procedures distinguish lift-up and swing-out back doors. Coverage includes windshield and quarter-window removal, moon-roof adjustment, instrument-panel removal, and fuel-tank and line service.

Frame Dimensions drawings provide measurement references for checking the chassis.

Electrical Fault Tracing and Air Conditioning

Body electrical systems: Lighting, combination meters, power windows, door locks and fuel-transfer controls have component checks and troubleshooting information. Cruise-control diagnosis separates Type A and Type B code-reading methods and traces faults through the relevant circuits.

Differential Locking System wiring and connector diagrams, the PPS Troubleshooting Flow-Chart, and Cruise Control System wiring diagrams connect component identification with circuit checks. These references support fault isolation before a component is selected for replacement.

Air conditioning: The original R-12 system is covered through compressor inspection, shaft-seal replacement, leak checks and performance testing. Single A/C and Dual A/C wiring diagrams distinguish lever-type and push-type controls.

Rear cooling, rear heating, automatic A/C controls and the cool/ice box have separate component checks.

Gasoline Engine Overhaul and EFI Diagnosis

The 3F volume details cylinder-head and cylinder-block overhaul, timing gears, camshaft work and carburetor service. It also covers lubrication, cooling, ignition, starting and charging systems.

The 3F-E supplement adds diagnostic-code charts, ECU voltage checks, fuel-pressure testing, injector inspection and idle-speed control diagnosis.

Workshop Specifications and Special Tools

Reference data covers gear thrust clearances, bearing oil clearances, shaft runout, transmission ratios, fluid capacities, oil types and electrical test values. Exploded assembly views identify non-reusable parts and tightening torques in kg-cm, ft-lb and N·m; standard bolt torques have a separate section.

Tool references include the 09992-00094 automatic-transmission oil-pressure gauge set and 09709-29017 LSPV gauge set, with application-specific SST and service-material listings.

Selected Power Steering Pressure Specifications

The pump-test specifications distinguish FJ models from HZJ and HDJ models: minimum pressure is 80 kg/cm² (1,138 psi) for FJ and 85 kg/cm² (1,209 psi) for HZJ/HDJ. Both apply at idle with fluid at least 80°C (176°F), during the specified brief closed-valve test.
