Yamaha Fazer FZX700S & FZX700SC Service Manual, 1986–1987 (P/N LIT-11616-05-05)

273 Pages • ZIP Download: Printable PDF • 19.28 MB

4.7starstarstarstarstar_half(3)
$18.30 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models & Model Codes: FZX700S (1UF), FZX700SC (1UH)

Sub-models / Variants: Fazer

Model Years: 1986–1987

Serial Numbers: FZX700S (VIN JYA1UF00*GA000101 and up, engine 1UF-000101 and up), FZX700SC (VIN JYA1UH00*GA000101 and up, engine 1UH-000101 and up)


  • Engine: Liquid-cooled 4-stroke

  • Valve clearance (intake, cold): 0.11–0.20 mm

  • Valve clearance (exhaust, cold): 0.21–0.30 mm

  • Idle speed: 1,000 ± 50 r/min

  • Brake fluid: DOT #3

  • Drive chain deflection: 15–20 mm

  • Spark plug: DP8EA-9 (NGK) or X24EP-U9 (ND)

  • Compression pressure (standard): 1,079 kPa (156 psi)

Yamaha Manual Features & Selected Content Preview

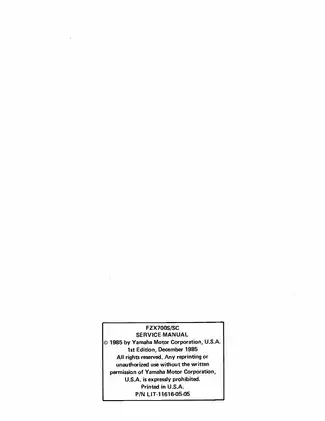

Yamaha’s factory service manual covers the FZX700S and FZX700SC Fazer. This is the first U.S. edition, published in December 1985 under P/N LIT-11616-05-05.

PDF Bookmarks and Wiring Detail

Navigation and diagram detail: Embedded bookmarks link to chapters and individual service sections. Text search is unavailable. Small wire codes and connector labels are clearest when zoomed in, and a few markings are faint.

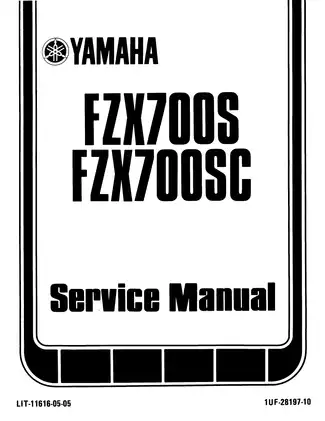

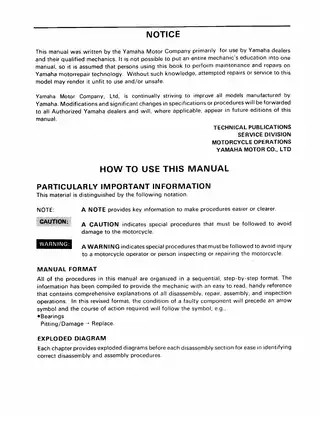

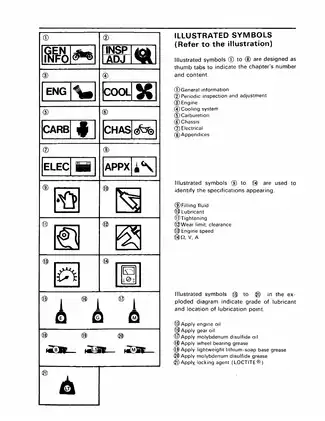

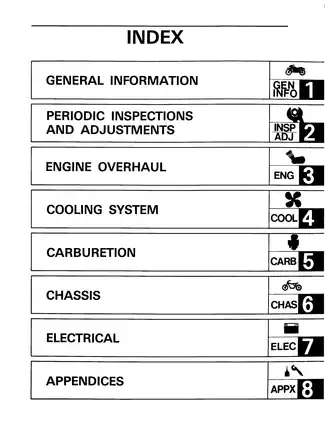

The ZIP contains one printable English-language PDF with 273 pages, including the cover, four introductory pages, and 24 pages of appendices with the full wiring diagram.


Engine Overhaul, Chassis Service, and Circuit Testing

These selected service topics show the range of repair and diagnostic work covered. Other procedures include fuel-cock inspection and headlight aiming.

  • Scheduled service: Maintenance interval charts, valve-clearance adjustment with shim-selection charts, ignition timing checks, and compression testing.

  • Engine and transmission: Step-by-step procedures for engine removal and reinstallation, cylinder-head and piston service, crankshaft inspection, and six-speed transmission inspection and reassembly.

  • Carburetion: Mikuni BDS34 carburetor removal, disassembly, synchronization, and fuel-level adjustment.

  • Cooling system: Water-pump bearing and seal replacement, thermostatic-valve testing, radiator-cap pressure checks, and coolant replacement.

  • Brakes and hydraulic clutch: Caliper, master-cylinder, and clutch-release assembly repair, with air-bleeding procedures for both hydraulic systems.

  • Chassis: Front-fork overhaul, steering-head bearing service, swingarm inspection, and wheel-bearing replacement.

  • Electrical troubleshooting: Circuit diagrams and diagnostic charts for starting, TCI ignition, charging, lighting, signals, the cooling fan, and the fuel pump.

Yamaha wrote this manual primarily for its dealers and qualified mechanics familiar with motorcycle service and repair.

Engine Identification and Overhaul

The identification section shows where to find the VIN and engine serial number, and the maintenance schedule groups emissions work separately. The compression test chart helps narrow low readings to possible cylinder, piston, ring, valve, head-gasket, or valve-timing problems.

For the liquid-cooled DOHC inline-four, Yamaha covers valve-guide replacement, valve-seat cutting and lapping, and color-coded valve-lifter selection for the camshaft case. The Camshaft exploded view complements the cam-chain timing instructions. Uneven cam-cap tightening can damage the cylinder head, caps, and camshaft.

The crankshaft section pairs stamped component codes with Plastigage clearance checks for main and connecting-rod bearing selection. The Transmission exploded view supports gearbox reassembly. Crankcase and clutch coverage includes the HY-VO chain, starter-clutch damper, oil-pump rotor clearances, and friction-plate and pressure-plate match marks.

The manual identifies four jobs that can be planned with the engine still in the frame: removal of the piston, clutch, carburetors, or AC generator.

Carburetor Internals and California Hose Routing

The carburetor Section View shows the fuel, air, and mixture passages. Disassembly covers the vacuum-piston diaphragms, starter plungers, and float valves, while the jetting table distinguishes the inner and outer cylinders. California-specific removal notes identify the evaporation and canister hoses.

Fork, Rear Shock, and Wheel Checks

The suspension section covers fork-air and rear-spring preload settings. Service on the sealed rear shock is limited to adjustment, removal, inspection, and replacement. Bottoming the inner fork tube during guide-bushing removal can damage the oil lock piece.

Wheel service includes static balancing and brake-disc inspection. The swingarm section also covers drive-chain and sprocket wear checks.

Electrical Fault Tracing and Wiring

The starting-system troubleshooting chart and switch checks help distinguish starter-motor trouble from faults in the clutch, neutral, or sidestand interlocks. Bench checks cover brushes, the armature, relay contacts, and rectifier diodes.

The Fuel Pump Circuit Operation chart shows how the fuel sender, reserve switch, and controller affect pump operation. Electrical specifications identify the Hitachi TID14-52 TCI unit and Omron G8D-04Y fuel-pump controller. The full FZX700S/FZX700SC Wiring Diagram and cable-routing drawings show electrical connections and harness routing.

Shop Reference Tables and Special Tools

The appendices list component-specific tightening torques and sequences, fluid capacities, wear limits, and electrical test values. Reference tables also cover brake fluid, spark plugs, drive-chain slack, and chassis geometry. The Lubrication Diagram traces oil flow to the camshaft bearings, crankshaft, transmission, and AC-generator drive.

Special-tool references include the Universal Clutch Holder YM-91042 and Valve Spring Compressor YM-04019 with Attachment YM-04108. Verify your test equipment and follow Yamaha’s precautions for brake hydraulics, pressurized cooling components, and the gas-charged rear shock.

Piston Clearance and Fuel Level Preview

The overhaul section specifies piston-to-cylinder clearance of 0.06–0.08 mm for both models. The appendix gives a 0.10 mm service limit for assessing piston and bore wear.

The Mikuni BDS34 fuel-level check specifies 8.3 ± 1.0 mm below the float chamber line with the engine warmed up and switched off. The accompanying illustration shows the reference line for the measurement.
