Yamaha NXC125 Cygnus 2004 Service Manual (P/N 5ML1-AE1)
299 Pages • ZIP Download: 1 Printable PDF (English)
Yamaha Models Covered & Key Technical Specifications
Model & Model Codes: NXC125 Cygnus (5ML1, 5ML2)
Model Year: 2004
-
Engine displacement: 124 cm3
-
Engine configuration: Air-cooled, 4-stroke, SOHC, forward-inclined single cylinder
-
Bore x stroke: 52.4 x 57.9 mm
-
Compression ratio: 10 ± 0.4 : 1
-
Idle speed: 1,700–1,800 r/min
-
Transmission: V-belt drive with final reduction gears and automatic centrifugal clutch
-
Fuel system: CVK24 (KEIHIN) carburetor
-
Brake system: Single-disc front brake, rear drum brake
Yamaha Manual Features & Selected Content Preview

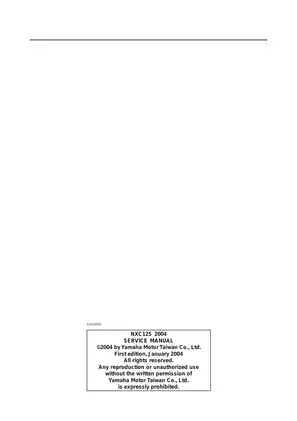

This Yamaha factory service manual covers maintenance, diagnosis, and repair work for the 2004 NXC125 Cygnus, model codes 5ML1 and 5ML2. P/N 5ML1-AE1 identifies the first edition, published in January 2004.

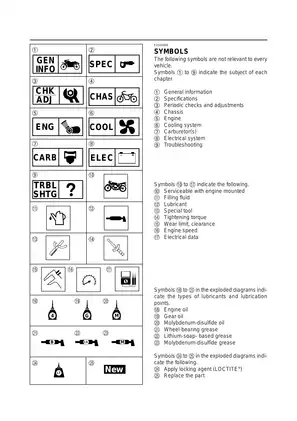

PDF Search, Bookmarks, and Wiring Detail
Search and diagram access: The PDF contains searchable text and embedded chapter and subsection bookmarks. Two return bookmarks point to files outside the download. Small wiring-diagram labels require zooming for comfortable reading.
The ZIP download contains one printable English-language PDF with 299 pages, including six pages of front matter and eight chapter dividers.
Engine, Belt Drive, Chassis, and Electrical Service
The following selected topics outline the repair coverage rather than reproduce the full contents. Other examples include battery-charging charts and headlight-beam adjustment.
-
Engine repair: Engine removal and installation, cylinder-head and valve service, camshaft and rocker-arm work, piston inspection, oil-pump service, and crankcase/crankshaft repair.
-
CVT and drivetrain: Kickstarter, V-belt, centrifugal clutch, primary and secondary sheaves, starter clutch, and final-drive transmission removal, inspection, disassembly, and assembly.
-
Chassis and brakes: Wheel removal and static balancing, front disc and rear drum brake repair, hydraulic bleeding, fork disassembly, steering-head service, handlebar work, and rear suspension inspection.
-
Carburetor and induction: Carburetor disassembly and reassembly, fuel-level adjustment, vacuum fuel-pump testing, auto-choke checks, and air-induction-system diagnosis.
-
Electrical diagnosis: Complete wiring diagram and circuit diagrams for ignition, electric starting, charging, carburetor heating, and auto choke, supported by component tests.
-
Maintenance and reference data: Periodic maintenance chart, component-specific torque specifications, fluid capacities, lubrication points, cable-routing layouts, wear limits, clearances, and electrical test values.
Yamaha produced the book primarily for Yamaha/MBK dealers and their qualified mechanics. It assumes a basic understanding of mechanical work and the techniques used to repair these vehicles.
Internal Engine and Belt-Drive Repair

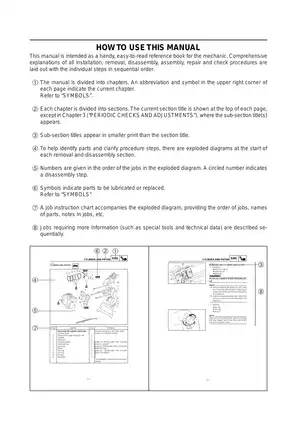

Exploded assembly views and job-order charts support step-by-step engine removal, disassembly, inspection, and reassembly procedures. Inspection coverage reaches cam lobes and rocker shafts, valve guides and seats, cylinder taper and out-of-round, piston rings, crankshaft runout, connecting-rod clearances, and oil-pump clearances.
The belt-drive section adds wear checks for the clutch shoes and housing, V-belt, roller weights, slider, sheave surfaces, and compression spring before reassembly and installation.
The camshaft-installation cautions explain how crankshaft movement at the wrong stage can cause damage or incorrect valve timing.
Carburetor, Fuel Delivery, and Air Induction
The Keihin CVK24 carburetor chapter goes beyond routine cleaning. It covers the piston valve and diaphragm, jets and passages, float and needle valve, pilot-screw baseline, and fuel-level measurement.
Fuel-pump checks distinguish flow with the engine running from shutoff after the engine stops. The induction section covers the air cut-off valve, while the maintenance chapter provides exhaust-gas checks with the air-induction system operating and isolated.
Brake Overhaul and Chassis Inspection
Front brake coverage extends from pad and disc inspection into master-cylinder and caliper disassembly, bore and piston checks, seal replacement, reassembly, installation, fluid replacement, and bleeding.
The manual also covers the rear brake shoe plate and drum, wheel bearings and runout, fork oil-seal and damper-rod work, and steering bearing and race inspection.
The brake-overhaul instructions warn that solvent on internal components will swell and distort the piston seals. At the rear, the shock absorber is covered for removal and inspection, but Yamaha treats a damaged or malfunctioning unit as a replacement assembly rather than a rebuildable component.
Before wheel, steering, or fork work, secure the scooter upright on a level surface with a suitable stand so it cannot fall.
Electrical Fault Isolation
Component-location information, connector inspection, switch-continuity tests, and bulb/socket checks accompany the schematics. Test paths address the DC-CDI ignition, starting circuit cut-off, starter motor, AC-magneto charging system, lighting, signaling, carburetor heater, and auto choke.
For a no-crank complaint, the starting-system test path helps distinguish starter-motor and relay faults from brake-switch, sidestand-switch, and wiring problems before component replacement.
A separate troubleshooting chapter organizes likely causes of starting failure, incorrect idle, poor mid- or high-speed performance, clutch faults, overheating, weak braking, fork leakage, unstable handling, lighting faults, and horn failure.
Factory Tools and Workshop Requirements
Named tools include fuel-level gauge 90890-01312, clutch spring holder 90890-01337, and sheave holder 90890-01701. The tool list also identifies flywheel puller 90890-01189 and cylinder-cup installer set 90890-01996.
Electrical checks call out pocket tester 90890-03132 and ignition checker 90890-06754. Yamaha notes that special-tool numbers may differ by country. The procedures expect standard workshop knowledge alongside the specified measuring equipment and tools.
Selected Valve-Clearance and V-Belt Inspection Data
Cold valve-clearance specifications are 0.10–0.14 mm for intake valves and 0.16–0.20 mm for exhaust valves. The adjustment section specifies a cold engine at room temperature, with the piston at TDC on the compression stroke.
V-belt inspection data list a standard width of 22 mm and a service limit of 19.8 mm, distinguishing the nominal dimension from the replacement threshold.
