Yamaha TRX850H Service Manual, 1989–1999 (P/N 4XG-AE1)
306 Pages • ZIP Download: Printable PDF • 10.29 MB
Yamaha Models Covered & Key Technical Specifications
Model & Model Codes: TRX850H (4XG1)
Model Year: 1996
-
Engine: Liquid-cooled 4-stroke, DOHC, 5-valve, forward-inclined parallel 2-cylinder
-
Displacement: 0.849 L
-
Transmission: Constant mesh 5-speed, spur gear primary, chain drive secondary
-
Compression ratio: 10.5:1
-
Ignition system: T.C.I. (digital)
-
Fuel system: Mikuni BDST38 carburetors (2)
-
Coolant capacity: 1.7 L (radiator and engine circuit)
-
Curb weight: 209 kg
Yamaha Manual Features & Selected Content Preview

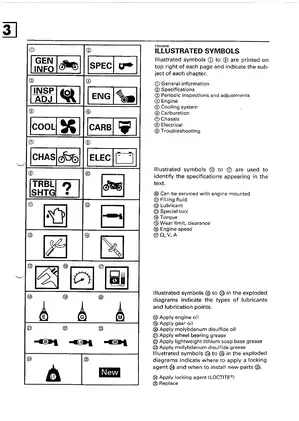

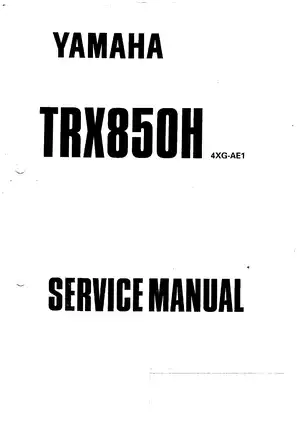

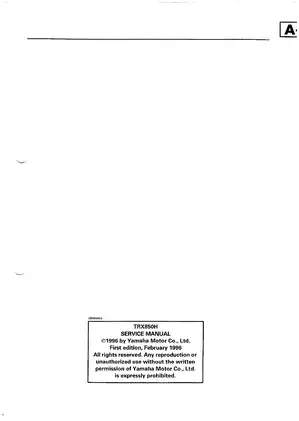

This Yamaha factory service manual covers the 1996 TRX850H. The specifications identify the motorcycle as TRX850 with model code 4XG1. This is the first edition, dated February 1996 (P/N 4XG-AE1).
PDF Navigation and Wiring Diagrams
Search, bookmarks, and diagram detail: PDF text search is unavailable. The main chapter bookmarks work, and seven Electrical subsection bookmarks have no valid destinations. Small connector labels and wire codes can be difficult to read on some shaded circuit diagrams, even when zoomed in. The wiring diagram at the end has clearer labels at higher magnification.
The ZIP contains one printable PDF with 306 pages, including the cover, five introductory pages, two blank-page placeholders, and the wiring diagram at the end.
Maintenance, Overhaul, and Fault Diagnosis
These are selected topics from the manual. It also includes battery-charging charts and headlight beam adjustment.
-
Engine overhaul: Engine removal and installation, camshaft timing, cylinder head and valve train service, piston inspection, clutch repair, and transmission and shift mechanism service.
-
Periodic maintenance: Valve clearance adjustment, carburetor synchronization, ignition timing and compression checks, engine oil and coolant changes, and hydraulic brake bleeding.
-
Fuel and cooling: Carburetor disassembly and fuel-level adjustment, throttle position sensor (TPS) inspection and adjustment, radiator pressure checks, thermostat testing, and water pump service.
-
Chassis repair: Wheel bearing and brake disc service, static wheel balancing, master cylinder and caliper overhaul, front fork rebuilding, steering head service, and swingarm and drive chain inspection.
-
Electrical diagnosis: Continuity and component tests for ignition, electric starting, charging, lighting, signals, and radiator fan circuits, plus starter motor repair and TPS self-diagnosis.
-
Factory shop references: Exploded assembly views and job charts, component torque tables, clearances and wear limits, fluid and lubricant data, suspension settings, cable routing, and special tool numbers.

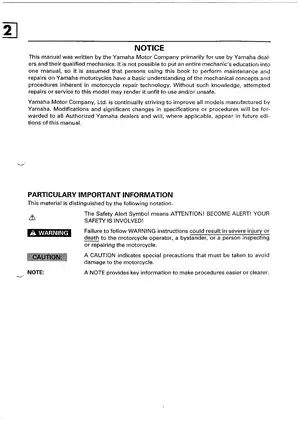

Yamaha wrote the manual primarily for its dealers and qualified mechanics and assumes basic motorcycle repair knowledge. Review Yamaha's cautions before engine, brake, suspension, fuel-system, or electrical work.
Engine and Drivetrain Rebuilds
The crankshaft chapter shows how to check main journal and connecting rod bearing clearances and select replacement bearings using Yamaha's color codes. Separate procedures cover the dry-sump oil pump, oil tank and pan, wet multi-disc clutch, A.C. magneto and starter wheel gear, shift shaft, shift cam, and shift forks.

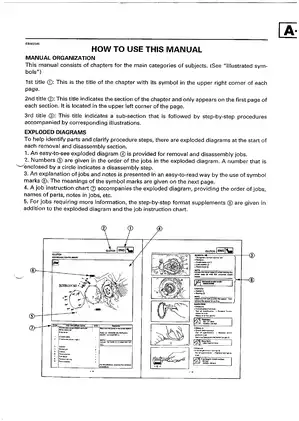

Exploded views and job charts identify assembly order, replacement parts, lubrication points, and locking-agent locations. Yamaha warns that uneven camshaft cap tightening can damage the cylinder head, caps, and camshafts.
Brakes, Suspension, and Cooling
The chassis chapter covers the diamond-frame setup, dual front discs, single rear disc, telescopic fork, and link-type rear suspension. It details fork seal and damper service, steering head bearings, and the rear shock and relay arm. For the gas-charged rear shock, Yamaha covers removal, installation, handling, and disposal and cautions against opening the cylinder. The drive chain section explains how steam cleaning, high-pressure washing, and certain solvents can damage the chain's O-rings.
Cooling procedures distinguish a radiator cap pressure check from a system leak test. The water pump section illustrates removal and installation and specifies replacement of the pump as a unit.
Wiring, Troubleshooting, and Special Tools
The full wiring diagram (PDF p. 306) includes a component key and wire-color legend. Separate ignition, electric starting, charging, and cooling circuit diagrams accompany the test sequences. The starting circuit checks help isolate a neutral, clutch, or sidestand switch fault before removing the starter. A tachometer display chart and continuity checks cover TPS faults.
The symptom-based troubleshooting chapter helps narrow possible causes of hard starting, poor running at idle or higher speeds, shifting or clutch faults, overheating, poor braking, fork leaks, unstable handling, and lighting or signal faults. The identification section shows where to find the frame and engine numbers and the model label for parts lookup.
Yamaha lists the flywheel puller and crankshaft protector (90890-01362 and 90890-01382), the fork damper rod holder and T-handle (90890-01388 and 90890-01326), the vacuum gauge (90890-03094), the clutch holder (90890-04086), and the ignition checker (90890-06754).
Valve Clearance and Carburetor Fuel-Level Examples
For valve shim selection, Yamaha specifies cold clearances of 0.15–0.20 mm at the intake valves and 0.25–0.30 mm at the exhaust valves.
The carburetor fuel-level check specifies 4.6–5.6 mm below the float chamber reference line, measured with the motorcycle on a level surface and the carburetors upright.
