Yamaha TT250RF 1995 Service Manual Set (P/N 4MR-AE1)

Use the supplement alongside the base manual: it supplies the model-specific changes, while the base publication provides the detailed service procedures.

Combined PDF and Wiring-Diagram Detail

Search, navigation and small labels: PDF text search and embedded bookmarks are not available. Small wiring-diagram labels require zooming, and some connector and wire-color markings remain indistinct.

The ZIP download contains one printable PDF with 175 pages total, including both publication covers and eight chapter-divider pages.

Engine Overhaul, Chassis Service and Electrical Fault Tracing

These selected contents highlight the main workshop coverage rather than reproduce the full table of contents. Additional topics include air-filter servicing and headlight adjustment.

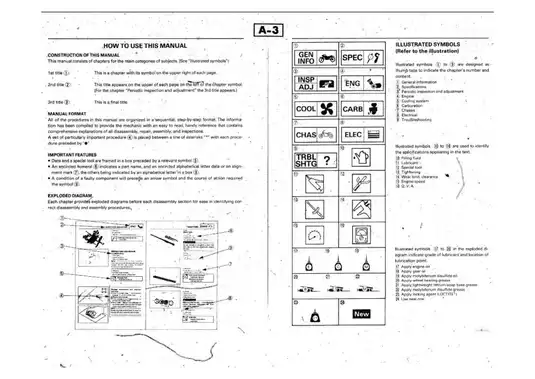

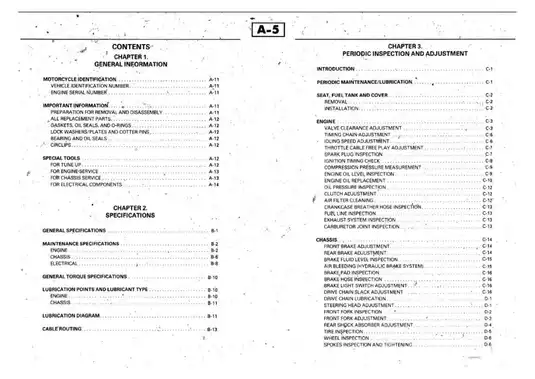

• Engine overhaul: Step-by-step procedures for engine removal, crankcase separation, top-end and bottom-end inspection, reassembly, valve timing, and remounting.

• Clutch and transmission: Wet multi-disc clutch repair, transmission disassembly, shift-mechanism inspection, and electric starter-drive service.

• Periodic inspection: Valve-clearance adjustment, compression measurement, oil-pressure inspection, ignition-timing checks, and control-cable adjustments.

• Carburetor service: Removal, disassembly, cleaning, component inspection, reassembly, fuel-level measurement, and post-installation adjustment.

• Chassis repair: Wheel balancing, hydraulic brake bleeding, caliper and master-cylinder overhaul, front-fork repair, steering-head service, and swingarm/linkage inspection.

• Electrical diagnosis: Ignition, starting, charging, lighting, and signal-system troubleshooting, supported by system circuit diagrams and wiring sheets for both versions.

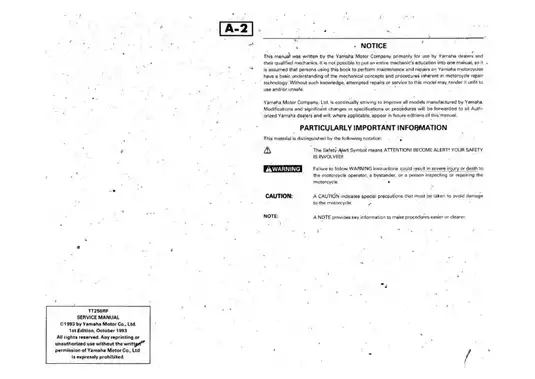

Yamaha wrote these publications primarily for its dealers and qualified mechanics, assuming an understanding of motorcycle repair concepts and procedures.

Engine Inspection and Assembly

Engine service includes valve-seat refacing and lapping, valve-guide replacement, piston and cylinder measurement, piston-ring inspection, crankshaft and balancer installation, oil-pump and strainer service, and final assembly checks. The engine lubrication diagram and camshaft/timing-chain assembly views support the written procedures.

The camshaft section warns that uneven cap tightening can damage the cylinder head, caps, or camshaft, and that turning the crankshaft during camshaft installation can cause damage or incorrect valve timing.

Tool callouts identify Yamaha equipment such as rotor puller 2K7-85555-00, crankcase separating tool 90890-01135, and valve spring compressor 90890-04019. These references help a shop plan the work before opening the engine.

Carburetor Inspection and Adjustment

The carburetor chapter covers the needle valve and seat, jets, starter plunger, throttle valve, and accelerator-pump diaphragm. Fuel-level and full-throttle valve-position adjustments extend the coverage beyond cleaning and jet replacement.

The supplement supplies revised carburetor settings, so the model-specific data can be used with the base manual’s service procedures.

Brakes, Forks and Rear Suspension

Front-fork and brake exploded views accompany component inspection and assembly instructions. Fork-tool references include seal driver weight 90890-01367 and adapter 90890-01374; the assembly notes address seal orientation and lip protection to prevent seal damage.

Rear-shock coverage includes removal, inspection, installation, adjustment, and disposal precautions. It does not provide an internal damper rebuild procedure, and the manual warns against opening the pressurized shock assembly.

The TT250R supplement adds suspension specifications, revised cable and wire-harness routing, an oil-pump assembly view, and swingarm bearing information. Its POLYLUBE needle-bearing notes warn that loss of the retained solid lubricant makes bearing replacement necessary.

Drive-chain and sprocket sections include wear inspection, chain-joint work, installation, and alignment checks.

Electrical Tests and Symptom Diagnosis

Starting-circuit operation explains how the neutral, clutch, and sidestand switches affect starter operation. Circuit schematics, connector checks, resistance tests, and charging-output charts support fault isolation before components are replaced.

Separate material addresses maintenance-free battery charging, starter-motor inspection, lighting and signal faults, and electronic meter/speed-sensor checks. The TT250RF and TT250R wiring sheets include component keys and wire-color codes.

The troubleshooting chapter links starting and running symptoms to fuel, electrical, and compression causes. It also addresses shifting problems, clutch slip or drag, overheating, brake faults, fork leakage, and unstable handling.

For workshop use, securely support the motorcycle before wheel or suspension work, keep ignition sources away from opened fuel components, and observe the manual's brake-fluid, battery, and electrical-isolation warnings.

Selected Valve-Clearance and Starter-Wear Data

With the engine cold, the valve-clearance specifications are 0.09–0.19 mm for the intake valves and 0.19–0.27 mm for the exhaust valves. The adjustment section includes pad-selection charts for choosing replacement shims.

For starter-motor inspection, the brush-length limit is 4 mm. The same section provides commutator measurements and armature continuity and insulation checks.
