Yamaha VP300 Versity Service Manual, 2003 (P/N 5SE1-AE1)

358 Pages • ZIP Download: 1 Printable PDF (English)

5.0starstarstarstarstar(1)
$10.55 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models & Model Codes: VP300 Versity (5SE1), MBK VP300 (5SE2)

Model Year: 2003


  • Engine displacement: 264 cm3

  • Engine configuration: Liquid-cooled, 4-stroke, SOHC

  • Bore × stroke: 71 × 66.8 mm

  • Compression ratio: 10:1

  • Transmission type: V-belt automatic

  • Front tire size: 120/80-14 58P

  • Rear tire size: 150/70-14 66P

  • Radiator capacity: 1.18 L

Yamaha Manual Features & Selected Content Preview

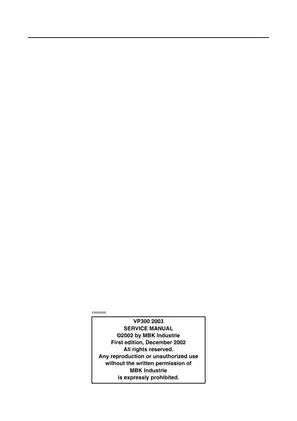

MBK Industrie service manual P/N 5SE1-AE1, first edition, December 2002, covers the 2003 Yamaha VP300 Versity (5SE1) and MBK VP300 (5SE2).

Searchable PDF and Wiring Diagram Detail

Search, bookmarks, and diagrams: The service chapters contain searchable text and embedded chapter bookmarks. The manufacturer’s back cover has no searchable text, and two “Return” bookmarks reference files outside this download. Small component identifiers, connector labels, and wire-color codes in the electrical diagrams require zooming.

The ZIP download contains one printable English PDF with 358 pages, including six blank pages and the manufacturer’s back cover.


Engine, Belt Drive, and Electrical Service

The following selected topics illustrate the manual’s coverage. Other subjects include instrument-display functions and body-panel removal.

  • Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head and valve-train work, cylinder and piston inspection, crankcase separation, crankshaft installation, and oil-pump service.

  • Belt drive and clutch: V-belt replacement, primary and secondary sheave disassembly, centrifugal-clutch inspection, starter-clutch and generator service, and final-transmission removal.

  • Carburetor and air induction: Teikei carburetor disassembly and reassembly, fuel-level adjustment, automatic-choke testing, and reed-valve and air cut-off valve checks.

  • Brakes and chassis: Wheel and brake-disc inspection, static balancing, pad replacement, master-cylinder and caliper overhaul, hydraulic bleeding, fork rebuilding, steering-head service, and swingarm repair.

  • Cooling system: Radiator and thermostat inspection, water-pump disassembly, mechanical-seal installation, heat-exchanger service, coolant replacement, and leak checks.

  • Electrical troubleshooting: Switch, LED, and bulb testing, plus fault-isolation charts for ignition, starting, charging, lighting, signaling, cooling-fan, and automatic-choke circuits.

  • Workshop reference: Maintenance schedules, engine and chassis torque tables, tightening sequences, cable and hose routing, lubrication points, capacities, adjustment specifications, and wear limits.

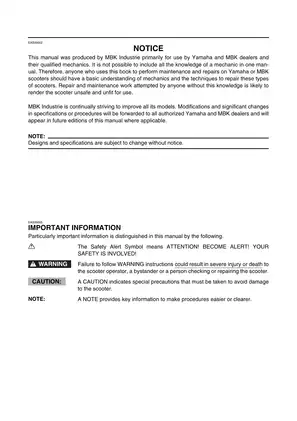

Written primarily for Yamaha and MBK dealers and their qualified mechanics, this manual also suits experienced scooter owners who understand mechanical repair techniques and have the specified tools and test equipment.

Maintenance and Internal Engine Work

Periodic checks: The maintenance chapter explains valve-clearance adjustment, idle and exhaust-gas checks, throttle-cable adjustment, ignition-timing verification, and compression and oil-pressure checks. Engine and final-transmission oil service, oil-strainer and filter cleaning, and service-indicator reset are also covered.

Chassis and electrical upkeep includes steering and suspension checks, sealed-battery charging, fuse testing, headlight-bulb replacement, and beam adjustment.

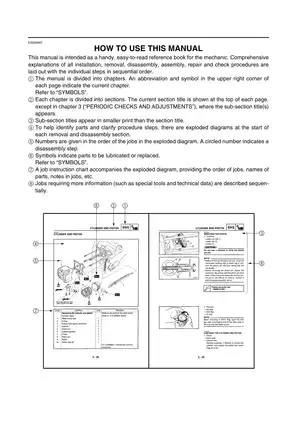

Internal repair detail: Exploded illustrations and job charts identify assembly order, part quantities, replacement items, lubrication points, special tools, and related procedures. Inspection specifications address camshafts and rocker arms, valve guides, seats and springs, piston rings, connecting rods, bearings, seals, and timing-chain components.

Carbureted Powertrain and Repair Limits

The covered engine is a liquid-cooled SOHC single-cylinder design with wet-sump lubrication, a Teikei Y28V-1J carburetor, a dry centrifugal clutch, and automatic belt drive. Fuel-system procedures concern a carburetor rather than fuel injection, an important distinction when matching the manual to the scooter before ordering parts or planning repairs.

Final transmission: The section documents gear-and-shaft removal and installation rather than a separate internal inspection or overhaul procedure.

Rear suspension: Shock-absorber coverage consists of preload adjustment, removal, external checks, and installation. Internal shock rebuilding is outside that section’s scope.

Circuit Diagrams and Fault Isolation

System-specific circuit sheets cover ignition, electric starting, charging, lighting, signaling, the cooling fan, and the automatic choke. The final VP300 2003 wiring diagram includes a wire-color legend, connector details, the auxiliary DC jack, meter assembly, speed sensor, fuel sender, and coolant and outside-temperature sensors.

The harness diagram also shows connections for the optional YS300-20 anti-theft alarm. Separate routing illustrations locate wiring, brake hoses, throttle cables, fuel and vacuum hoses, air-induction plumbing, and battery, starter, and sensor leads.

The starting-circuit cut-off diagram explains how the brake-light switches and sidestand switch affect relay operation. Together with the electrical test charts, it helps distinguish an interlock or wiring fault from a starter-motor problem.

Special Tools and Repair Cautions

Tool identification: Crankcase work references separating tool 90890-01135. Clutch procedures specify spring holder 90890-01337 and holder arm 90890-01464.

Fork assembly calls for driver weight 90890-01367 and attachment 90890-01372. Carburetor and air-induction checks identify fuel-level gauge 90890-01312 and vacuum/pressure pump gauge set 90890-06756.

Component damage risks: The fork instructions explain how excessive separation force can damage seals and bushings, while bottoming the inner tube can damage the oil-flow stopper. The cylinder-head installation section warns that turning the crankshaft during camshaft installation can disturb valve timing and cause damage.

Brake repairs, battery charging, hot-coolant service, and running-engine tests require the precautions and equipment specified in the manual. Work beyond the user’s training belongs with a qualified technician.

Examples of Belt Wear and Carburetor Fuel-Level Data

For V-belt inspection, the manual gives a standard belt width of 22.6 mm and a wear limit of 21.0 mm.

For the Teikei carburetor’s fuel-level check, the specified range is 4.5–6.5 mm below the line on the float chamber, with the scooter upright on a level surface.
