Yamaha WR200 / WR200R 1992–1993 Service Manual Set (P/N 4BF-28199-71)

Each volume contains its own operating, maintenance, repair, and electrical sections. Use the matching volume for version-specific dimensions, settings, and inspection limits.

The WR200R(E) publication identifies that machine as intended strictly for closed-course competition.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram access: Both PDFs lack text search. The D volume has detailed bookmarks with some misplaced introductory links; the E volume has six chapter bookmarks. Small wiring labels require zooming, particularly in the fainter E-volume diagram.

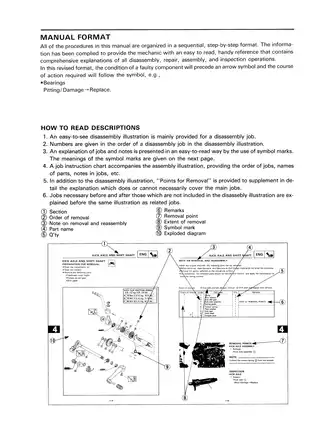

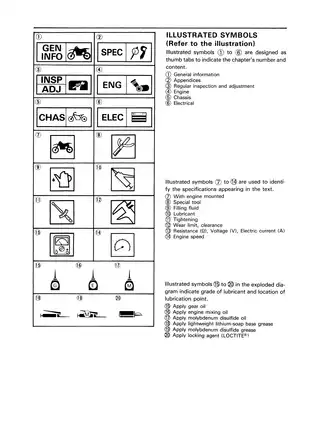

The ZIP download contains two printable English PDFs totaling 477 pages. Original preliminary pages, the E volume's covers and blank page, and pages containing only section headings or page numbers are already included in that total.

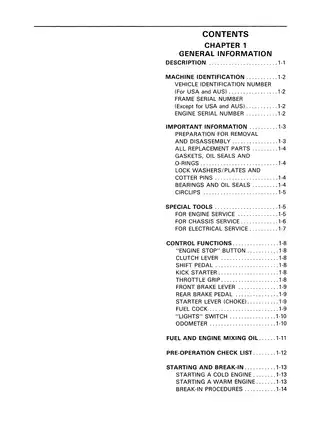

Engine, Chassis, and Electrical Workshop Coverage

The following selected topics show the repair and diagnostic scope. Other included subjects include cleaning, storage, and headlight-beam adjustment.

• Engine repair: Step-by-step procedures for cylinder-head, piston, and YPVS power-valve service, engine removal, crankcase separation, and crankshaft and balancer inspection.

• Clutch and transmission: Wet multi-disc clutch disassembly, primary-drive inspection, kick-axle and shift-shaft service, and transmission, shift-cam, and shift-fork repair.

• Fuel system: Carburetor disassembly and cleaning, needle-valve inspection, float-arm-height adjustment, and reed-valve inspection and installation.

• Cooling system: Coolant replacement, radiator-cap and system-pressure tests, hose inspection, and radiator, water-pump, impeller-shaft, and oil-seal service.

• Suspension and chassis: Front-fork disassembly and reassembly, steering-bearing service, swingarm and linkage inspection, wheel-bearing replacement, and rear-shock removal and spring work.

• Hydraulic brakes: Front and rear caliper and master-cylinder service, piston and seal inspection, disc measurements, pad replacement, and brake-system bleeding.

• Electrical diagnosis: Wiring diagrams and fault-finding charts for ignition, lighting, and YPVS systems, with connector checks, coil tests, and servomotor inspection.

Owners can use the operating and routine-maintenance sections; internal repairs and electrical diagnosis suit mechanics comfortable with precision measurement and Yamaha service tools.

Model Identification and Version Differences

The D volume lists starting frame and engine number 4BF-000101, with starting VIN JYA4BFW0*NA000101 for USA and Australia machines.

The E volume lists starting frame and engine number 4BF-007101, with starting VIN JYA4BFT0*PA007101 for Australia and New Zealand machines.

Piston specifications: At the specified measuring point 15 mm from the skirt's bottom edge, D-model piston diameter is 66.742–66.757 mm, with standard piston clearance of 0.055–0.060 mm and zero piston offset. E-model diameter is 66.752–66.767 mm, with 0.045–0.050 mm clearance and a 0.5 mm intake-side offset.

The piston-and-cylinder matching charts help select the appropriate piston size for each version. Cooling-capacity figures, ignition-timing dimensions, and spoke-nipple torque entries also differ between the volumes.

Engine Inspection and Fuel-System Detail

Cylinder and piston inspection data includes bore limits, piston-pin measurements, installed ring end gaps, crankshaft runout, and connecting-rod clearances. The crankcase procedure warns that forcing the case halves or hammering the crankshaft can damage the mating surfaces or crankshaft.

The carburetor tables identify the 6DHY40-3 jet needle and N-8 needle jet, alongside main, pilot, and starter-jet specifications. Fuel and lubrication information distinguishes normal premix from break-in mixtures and periodic transmission-oil changes from total oil capacity.

Factory assembly references include the Cylinder Head, Cylinder and Piston view; the Clutch, Primary Driven Gear and Primary Drive Gear view; and the Transmission, Shift Cam and Shift Fork view.

Suspension, Brakes, and Service Limits

Front-fork coverage includes oil quantity and level, Yamaha Suspension Oil “01,” damper-rod and base-valve inspection, and seal installation. Yamaha recommends dealer fork service; its handling notes address trapped air and warn that bottoming the inner tube during seal removal can damage the oil-lock piece.

Rear suspension coverage includes Monocross linkage inspection and spring-preload, rebound, and compression-damping adjustments. Rear-shock scope: Removal, spring replacement, and external inspection are covered; Yamaha warns against opening the shock cylinder or nitrogen reservoir.

Brake tables distinguish disc dimensions from pad wear limits and specify DOT 4 fluid. Chain-service information covers O-ring-compatible cleaning and master-link clip orientation.

Electrical Fault Finding and Yamaha Tools

The ignition sequence checks spark gap, connections, the engine-stop switch, ignition-coil windings, CDI magneto pickup and charging coils, and the CDI unit. These checks provide a way to investigate a no-spark condition before concluding that the CDI unit is at fault.

Lighting diagnosis covers bulbs, the switch, lighting coil, output voltage, and regulator. YPVS coverage includes cable adjustment, servomotor tests, and the applicable CDI/control-unit or condenser checks. Drawing and chart references include the Cable Routing Diagram, Electrical Components and Wiring Diagram, and YPVS System diagnostic chart.

Service-tool references: Engine work identifies the YU-01135 / 90890-01135 crankcase separator and YM-91042 / 90890-04086 clutch holder. Fork work references the YM-1423 / 90890-01423 damper-rod holder and YM-1424 / 90890-01442 seal driver.

Electrical testing references the YU-03112 / 90890-03112 pocket tester and YM-34487 dynamic spark tester / 90890-06754 ignition checker. These references make the equipment requirements clear before engine, suspension, or electrical work begins.

Examples of Ignition Test Values and Engine Fastener Torques

For both versions, ignition-coil inspection specifies primary resistance of 0.56–0.84 Ω and secondary resistance of 5.7–8.5 kΩ, both measured at 20°C (68°F). The electrical sections pair these values with test connections and fault-finding charts.

The engine torque tables distinguish cylinder-head nuts at 22 Nm from cylinder nuts at 28 Nm. Separate entries cover studs and other fasteners, so the component and fastener type remain part of the specification.
