Suzuki RG125 Gamma / RG125F Service Manual (1993–1996)

This Suzuki RG125F Gamma service manual is a workshop reference for scheduled maintenance, fault diagnosis, and component repair, with market-specific fuel and electrical service data.

PDF Bookmarks, Wiring Detail, and File Contents

Chapter access and diagram detail: Embedded bookmarks open all eight main sections. PDF text search is not available. Small wiring labels require zooming; faint lines and show-through make some areas of the full wiring diagram harder to follow.

The ZIP download contains one printable, English-language 170-page PDF, including eight chapter contents pages. It runs from General Information through Servicing Information, ending at section 8-26.

Engine Overhaul, Fuel Systems, and Electrical Diagnosis

The following selected coverage highlights outline the main workshop content. Other topics include tubeless-tire valve inspection and ignition-switch replacement.

• Engine repair: Engine removal and reinstallation, crankcase disassembly, cylinder and exhaust-valve service, piston and reed-valve inspection, crankshaft shim selection, clutch repair, and transmission service.

• Fuel and lubrication: Fuel-cock service, carburetor teardown, needle-valve inspection, float-height adjustment, oil-pump cable adjustment, air bleeding, and delivery checks.

• Cooling system: Radiator and reservoir removal, cooling-system pressure tests, thermostat inspection, water-pump shaft and mechanical-seal service, and temperature-sensor testing.

• Electrical fault finding: Ignition, charging, and starter schematics; exhaust-valve actuator checks; terminal-resistance tables; generator, regulator/rectifier, starter-relay, meter, switch, and battery tests.

• Chassis service: Wheel bearings, tire mounting and balance checks, brake-caliper and master-cylinder overhaul, hydraulic bleeding, front-fork service, steering bearings, swingarm, and suspension-linkage work.

• Workshop references: Full wiring diagram, wire/cable/hose routing views, exploded assemblies, troubleshooting charts, special-tool listings, tightening-torque tables, capacities, adjustment data, and wear limits.

The internal overhaul and electrical test procedures suit readers with workshop experience, precision measuring equipment, and access to the specified pullers, installers, and test instruments.

Maintenance and Internal Engine Repair

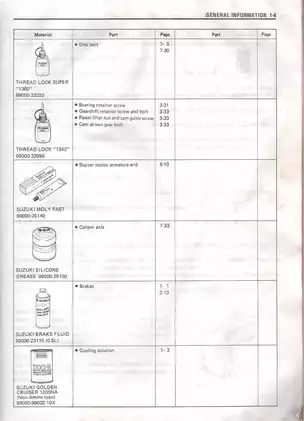

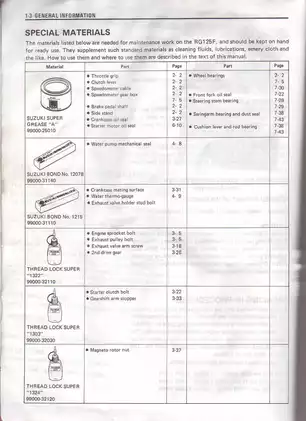

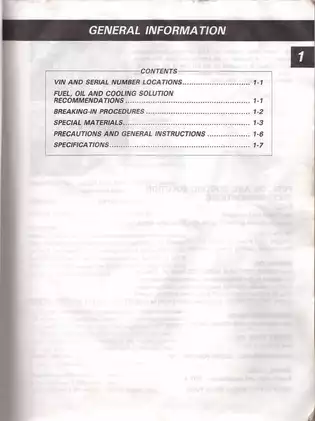

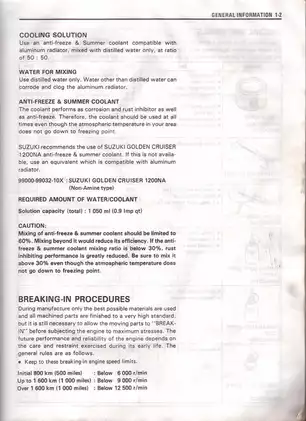

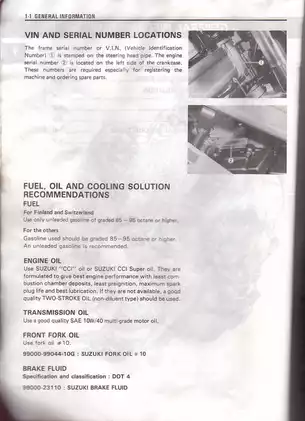

General Information covers VIN and engine-number identification, fluid recommendations, break-in guidance, Suzuki service materials, and workshop precautions.

Periodic maintenance addresses the battery, cylinder and exhaust fasteners, spark plug, air cleaner, transmission oil, cooling circuit, and carburetor and oil-pump controls. Clutch and drive-chain adjustment, brakes, tires, steering, suspension, and chassis fasteners are also covered.

Internal assembly: Step-by-step procedures extend from engine removal through teardown, inspection, measurement, and reassembly. Dedicated instructions cover crankshaft shim selection, gearshift-fork clearance, crankcase sealing, piston-ring orientation, and final cylinder/head assembly.

Bearings, oil seals, the starter clutch, shift cam and forks, balancer shaft, magneto, neutral switch, and oil pump receive component-specific attention. Photo sequences, exploded views, and transmission sectional drawings show shaft, gear, shim, washer, and circlip relationships.

The crankshaft installation caution explains how hammering can disturb crankshaft alignment. Transmission assembly notes address circlip replacement, expansion, seating, and orientation alongside washer positioning.

Market-Specific Carburetor and Oil-Pump Data

Service tables distinguish Mikuni TM30SS and TM32SS installations, with market-specific carburetor identification, jetting, jet needles, needle jets, pilot jets, air-screw settings, float height, and idle specifications. Ignition timing and exhaust-valve actuation data also carry E-code distinctions.

Those differences matter when diagnosing poor running, ordering carburetor parts, or setting up an imported motorcycle.

Needle-valve inspection connects wear or sticking with overflow and fuel-supply problems. The lubrication section provides an oil-pump delivery test using a CCI oil gauge, plus cable-adjustment and air-bleeding procedures.

Cooling-System Tests and Water-Pump Seals

The cooling-system diagram explains circulation through the radiator, thermostat, cylinder, and head. Separate checks address system leakage, radiator-cap pressure retention, thermostat operation, and the temperature-dependent resistance of the water thermo-gauge.

Water-pump reassembly notes distinguish oil-seal lip direction and marked seal-ring orientation; reversed assembly can compromise sealing.

Electrical Tests and Wiring References

The ignition schematic and CDI/actuator connector view work alongside terminal-resistance matrices for the ignition and exhaust-valve circuits. The manual notes that readings can differ when an ohmmeter other than the specified Suzuki pocket tester is used.

Charging diagnosis separates generator no-load performance, stator-coil checks, and regulator/rectifier testing. Starter-motor repair includes brush, commutator, armature, and oil-seal inspection.

Water-temperature meter, oil-level gauge, lamps, combination meter, switches, and battery service have their own references. The full wiring diagram is supported by dedicated wire, control-cable, fuel/oil, coolant, and brake-hose routing illustrations.

Brakes, Forks, Steering, and Rear Suspension

Brake procedures cover pad replacement, caliper and disc inspection, master-cylinder internals, and hydraulic bleeding. Wheel service adds axle and rim checks, bearing replacement, rear-sprocket inspection, and drive-chain service.

Front-fork instructions address seals, tube bushings, damper-rod removal, oil bleeding, oil-level setting, and reassembly. The damper rod itself is not serviceable internally.

Steering-stem bearing procedures include race replacement and adjustment checks. Rear-suspension work covers the swingarm pivot shaft, cushion linkage, needle bearings, shock inspection, and spring setting. The shock absorber unit is not intended for internal disassembly.

Support the motorcycle securely before engine, wheel, fork, brake, or swingarm work, and observe the manual's precautions for coolant, brake fluid, battery service, and rotating assemblies.

Special Tools and Troubleshooting Tables

The special-tool catalog identifies equipment called out in the repair chapters, including crankshaft installer 09910-32812, crankcase separator 09920-13120, front-fork oil-seal installer 09940-52850, front-fork oil-level gauge 09943-74111, and pocket tester 09900-25002.

Troubleshooting tables connect engine, clutch, transmission, carburetion, radiator, electrical, battery, brake, and chassis symptoms with possible causes and remedies. Component-specific torque charts and consolidated service data support the individual repair chapters.

Selected Piston-Clearance and Thermostat Test Data

Top-end inspection data distinguish a standard piston-to-cylinder clearance of 0.041–0.057 mm from the 0.120 mm service limit, giving separate reference points for assembly fit and wear assessment.

The thermostat bench-test section specifies a valve-opening temperature of 48.5–51.5°C. It also includes a separate valve-lift check, so cooling diagnosis covers both the start of opening and subsequent valve travel.
