Suzuki RG 125 Gamma Service & Repair Manual (1992)
170 Pages • ZIP Download: 8 Printable PDFs • 20.82 MB
Suzuki Models Covered & Key Technical Specifications
Model & Model Code: RG 125 Gamma (RG125F)
Sub-models / Variants: General Market (E-01), U.K. (E-02), France (E-04), Finland (E-15), Sweden (E-17), Switzerland (E-18), Italy (E-34)
Model Year: 1992
-
Engine: Two-stroke, water-cooled, reed valve, 124 cm³ displacement, 56.0 mm bore, 50.6 mm stroke
-
Transmission: 6-speed constant mesh, wet multi-plate clutch
-
Final Reduction: 3.133 (47/15) for Finland (E-15) and Switzerland (E-18); 2.937 (47/16) for other markets
-
Tires: Front 100/80-17 52S, Rear 120/80-17 61S
-
Electrical: 12V 14.4kC (4 Ah) battery, 15A fuse, PEI ignition system
-
Cooling System: Capacity 1050 ml, anti-freeze/summer coolant 50:50 mix

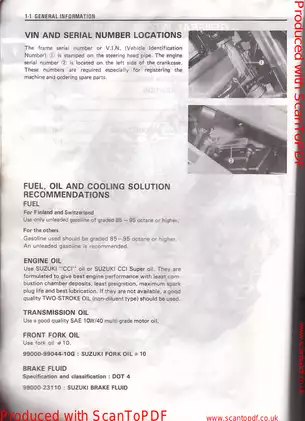

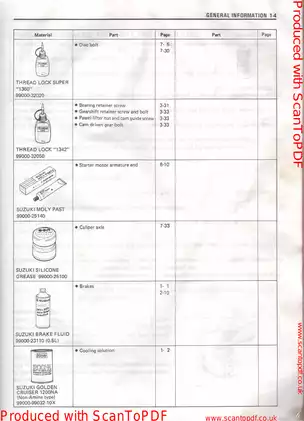

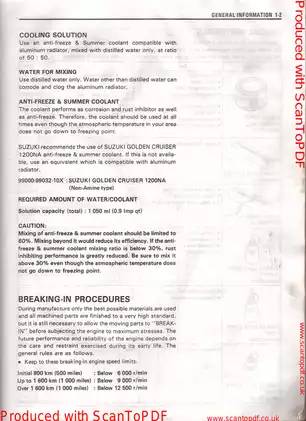

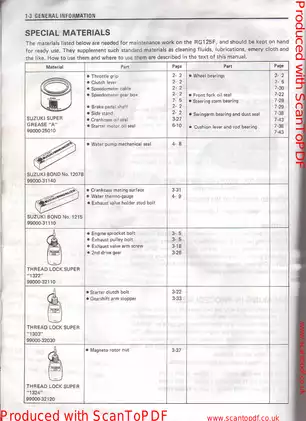

Suzuki Manual Features & Selected Content Preview
This Suzuki RG125F service manual covers maintenance, troubleshooting, and mechanical repair for the RG 125 Gamma, from routine servicing to engine teardown and chassis work.
PDF Chapters, Navigation, and Diagram Detail
Search and diagram readability: Manual text is not searchable, and the PDFs have no embedded bookmarks. Small labels in the Servicing Information wiring diagram require zooming; faint lines and reverse-side show-through reduce contrast.

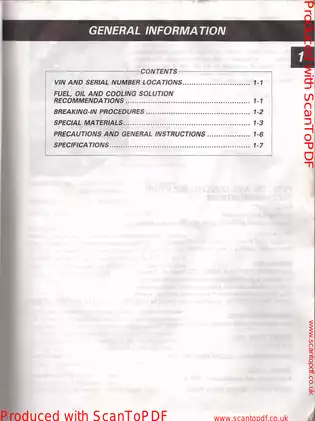

The ZIP contains 170 pages across eight printable chapter PDFs, including eight chapter contents pages. Page counts are General Information: 8; Periodic Maintenance and Tune-Up Procedures: 17; Engine: 40; Cooling System: 10; Fuel and Lubrication System: 6; Electrical System: 18; Chassis: 44; and Servicing Information: 27.
Engine Overhaul, Exhaust-Valve Service, and Chassis Repair
These selected service topics show the repair coverage. Additional subjects include the periodic maintenance schedule, drive-chain inspection, and tubeless-tire removal and mounting.
-
Engine overhaul: Step-by-step procedures cover engine removal and installation, piston and reed valve inspection, crankshaft shim selection, and crank balancer shaft and driven gear assembly.
-
Transmission and clutch: Countershaft and driveshaft disassembly, gearshift cam and fork servicing, starter clutch repair, and clutch-pack reassembly.
-
Exhaust valve: Mechanical disassembly, inspection, reassembly, and cable adjustment, supported by separate actuator and CDI/Actuator Control Unit electrical checks.
-
Carburetor and lubrication: Needle-valve inspection, float-height adjustment, and Suzuki CCI oil-pump control-cable adjustment, air bleeding, and discharge-rate testing.
-
Cooling system: Radiator leak and cap-pressure tests, thermostat bench testing, water-pump disassembly and reassembly, and water thermo-gauge inspection.
-
Suspension and steering: Front fork seals, bushings, oil bleeding, and oil-level adjustment, plus steering stem bearings, swingarm bearings, rear linkage, and shock spring settings.
-
Brake repair: Front and rear caliper and master-cylinder disassembly, piston and seal inspection, disc checks, reassembly, and brake-fluid circuit bleeding.
The teardown and test procedures are suited to mechanics and experienced DIY owners who can use precision measuring equipment, electrical testers, and the specified workshop tools.
Market Versions and Carburetor Identification
Mikuni TM30SS specifications apply to General Market (E-01), U.K. (E-02), France (E-04), Sweden (E-17), and Italy (E-34). Finland (E-15) and Switzerland (E-18) use TM32SS data. Carburetor identification numbers and market-specific jetting tables help match the reference data to the installed unit.
Ignition-timing and final-drive tables also distinguish market versions. Exhaust-valve operating-speed figures exclude the U.K., French, Swedish, and Swiss versions.
Assembly Drawings and Workshop References
Engine assembly: The engine chapter identifies components that can be serviced without removing the engine. A transmission cross-sectional view locates gears, washers, and circlips; a crank balancer shaft and driven gear exploded view identifies the parts of that assembly.
Cooling and routing diagrams: The cooling-system circulation diagram shows the radiator, reservoir, and water-pump circuit. Wire, Cable and Hose Routing drawings show harness clamps, exhaust-valve cables, oil lines, and brake-hose placement.
Inspection and service data: Reference tables cover piston and cylinder limits, crankshaft dimensions, transmission clearances, and clutch spring free lengths. Engine and chassis torque tables accompany fluid specifications, including separate transmission-oil change and overhaul quantities, coolant requirements, and DOT 4 brake fluid.
Special-tool references include crankcase separating tool 09920-13120 and CCI oil gauge 09900-21602. The crankshaft installation cautions explain how hammering the shaft into the crankcase can disturb its alignment.
Electrical Tests and Fault Diagnosis
Charging-output checks, AC-generator no-load tests, regulator/rectifier checks, starter-motor inspection, and instrument tests supplement the wiring diagram. The ignition-system schematic shows the connections between the shared CDI/actuator controller, ignition coil, and exhaust-valve actuator.
Control-unit resistance tables specify Suzuki pocket tester 09900-25002; readings from other meters can differ. The actuator instructions also warn that turning its pulley fastener without supporting the pulley can damage the internal gears.
Troubleshooting charts connect symptoms with possible causes and remedies for starting problems, poor high-speed running, clutch drag, gears jumping out, charging faults, and chassis complaints.
Suspension Repair Limits and Brake Safety
The fork damper rod and rear shock absorber are non-serviceable units. Their internal rebuilding is outside the repair coverage.
Always verify safety protocols and ensure you have the proper tools before beginning complex diagnostic or mechanical work, especially on the braking system.
A Preview of Cooling-System Test Specifications
The thermostat bench-test section specifies a valve-opening temperature of 48.5–51.5°C (119.3–124.7°F). This is the opening range, rather than the temperature for full valve travel.
For radiator-cap inspection, the specified valve-release pressure is 110 ± 15 kPa. The manual pairs this specification with a pressure-retention check.
