Yamaha TDM900 / TDM900A Service Manual Set 2002–2011 (P/N 5PS1-AE1)

1,165 Pages • ZIP Download: 5 Printable PDFs (English)

4.7starstarstarstarstar_half(3)
$19.00 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: TDM900, TDM900A

Sub-models / Variants: TDM900 (5PS1 EUR, 5PS2 OCE, 5PS4 EUR, 5PS5 OCE, 5PS6 EUR, 5PS7 OCE, 5PSC EUR, 5PSD AUS), TDM900A (2B01 EUR, 2B03 EUR)

Model Years: 2002–2011 (2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011)


  • Engine type: Liquid cooled 4-stroke, DOHC

  • Engine displacement: 897.0 cm³

  • Cylinder arrangement: Forward-inclined parallel 2-cylinder

  • Bore × stroke: 92.0 × 67.5 mm

  • Compression ratio: 10.40:1

  • Fuel system: Electronic fuel injection

  • Transmission type: Constant mesh 6-speed

  • Fuel tank capacity: 20.0 L

Yamaha Manual Features & Selected Content Preview

Publication Pages
Yamaha TDM900(P) 2002 Service Manual — P/N 5PS1-AE1; 5PS1 (EUR), 5PS2 (OCE) 475
Yamaha TDM900(R) 2003 Supplementary Service Manual — P/N 5PS1-AE2; 5PS4 (EUR), 5PS5 (OCE) 28
Yamaha TDM900(S) 2004 Supplementary Service Manual — P/N 5PS1-AE3; 5PS6 (EUR), 5PS7 (OCE) 41
Yamaha TDM900A(T) 2005 Supplementary Service Manual — P/N 5PS1-AE4; 2B01 (EUR), ABS 137
Yamaha TDM900(W)/TDM900A 2007 Service Manual — P/N 5PS-28197-E0; TDM900: 5PSC (EUR), 5PSD (AUS); TDM900A: 2B03 (EUR), ABS 484

The supplements update the earlier manuals and require them for unchanged service procedures; all referenced manual numbers are included here. The 2007 publication is a full service manual for both models. Matching the model code helps select the applicable procedures and wiring diagrams.

PDF Search, Bookmarks and Wiring Detail

Text search and navigation: Body text is searchable across all five PDFs, although some covers and diagram labels are outside text search. The 2002 manual has working chapter bookmarks. Supplement bookmarks provide limited navigation, while the 2007 bookmarks return to the cover. Small wiring labels require enlargement for comfortable reading.

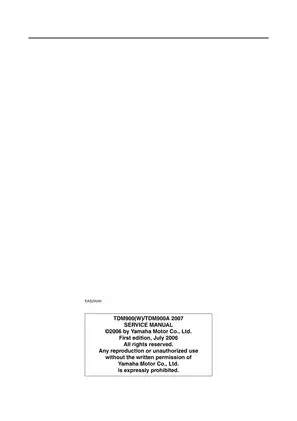

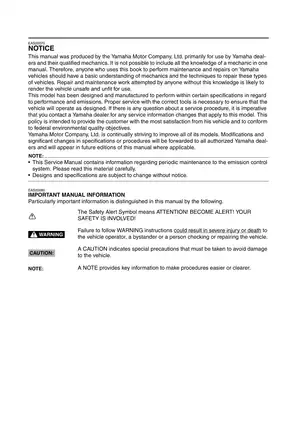

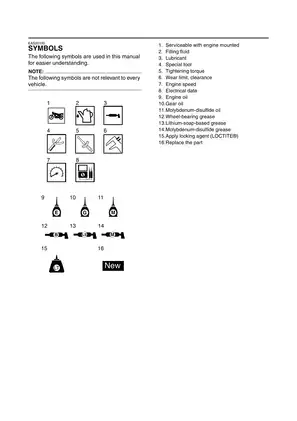

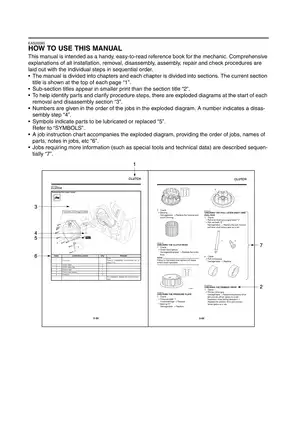

The ZIP download contains five printable English PDFs totaling 1,165 pages, including ten front and rear cover pages and 15 completely blank pages. The two color wiring-diagram pages in the 2007 PDF are also included in that total.


Engine Repair, Fuel Injection and ABS Service

The following is a selection of covered work, rather than a complete contents list. Other topics include exhaust-gas CO adjustment and headlight-beam adjustment.

  • Engine and transmission repair: Engine removal, camshaft and timing-chain work, cylinder-head and valve service, piston/cylinder inspection, crankshaft and balancer work, clutch repair, and transmission teardown.

  • Fuel-injection diagnosis: Throttle-body synchronization, fuel-pump and pressure-regulator testing, injector and throttle-position-sensor checks, ECU fail-safe tables, and meter-based sensor/actuator diagnosis.

  • Chassis service: Wheel and brake-disc inspection, master-cylinder and caliper repair, front-fork disassembly, steering-head service, rear-shock and linkage checks, swingarm work, drive-chain inspection, and static wheel balancing.

  • ABS procedures: Wheel-sensor and rotor inspection, hydraulic-unit removal and operation tests, ABS bleeding, present/past fault retrieval, code deletion, and final trial-run checks.

  • Electrical and immobilizer diagnosis: Ignition, starting, charging, lighting, signaling, cooling-fan and fuel-pump circuit tests, plus immobilizer key-code registration and troubleshooting.

  • Factory reference data: Engine/chassis torque tables, capacities, lubricant data, wear and clearance limits, electrical test values, and cable, harness and brake-hose routing.

Yamaha produced these manuals primarily for its dealers and qualified mechanics; anyone using them is expected to understand motorcycle repair fundamentals and have the correct service tools.

Internal Engine Repair and Assembly Checks

The engine sections include valve-pad selection, cam timing, piston-ring inspection limits, oil-pump service and crankcase repair. Assembly data covers the cylinder-head torque-plus-angle sequence, Plastigauge oil-clearance checks, and color-coded crankshaft-journal and big-end bearing selection.

Step-by-step procedures cover crankcase disassembly and transmission reassembly, with inspections of shaft runout, gear dogs, shift forks and the shift drum.

Fuel, Cooling and Circuit Diagnosis

Cooling-system coverage includes radiator and cap pressure tests, thermostat testing, and water-pump disassembly, seal replacement and reassembly. Fuel-system sections add tank and pump removal, throttle-body cleaning and air-induction checks.

The FI troubleshooting tables connect displayed fault codes with probable causes, sensor/actuator tests and reinstatement checks. This supports fault isolation between wiring, connectors and components before replacement decisions are made.

The fuel-tank section warns against resting the tank on the fuel-pump installation face, where improper handling can damage the mounting surface.

Supplement Changes and ABS Repair Limits

The 2003 supplement updates starting and lighting circuits. The 2004 supplement adds revised front-brake information, cable routing and immobilizer coverage, including self-diagnosis indications and a parts-replacement matrix showing when key registration is required.

The 2005 supplement adds the ABS-equipped model, including ABS ECU and fail-safe relay checks. ABS coverage concerns diagnosis, removal, replacement and operational testing; the ABS ECU, hydraulic unit, wheel sensors and ABS motor relay are not intended for internal disassembly.

The wheel-sensor sections flag damage risks from metal contact at the sensor electrode and debris inside the wheel hub. The front sensor rotor is not replaced separately: damage requires replacement of the front wheel assembly.

Safety notice: Brake and ABS repair requires the specified fluid, correct bleeding and operation checks, and secure support of the motorcycle. Follow the applicable Yamaha procedure and standard workshop safety practices before returning the machine to service.

Factory Drawings and Yamaha Service Tools

Reference drawings include lubrication-system charts, cooling-system diagrams, FI circuit diagrams, immobilizer system and circuit diagrams, the ABS block diagram and connector-location chart, and model-specific wiring diagrams. Exploded views and job charts connect component identification with the related factory procedures.

Identified tools include ABS test coupler adapter 90890-03149, pressure gauge 90890-03153 with fuel-pressure adapter 90890-03176, vacuum gauge 90890-03094, valve spring compressor 90890-04019 with attachment 90890-04108, and fork damper-rod holder 90890-01375.

Valve-Clearance and Clutch-Wear Examples

For the 2007 TDM900/TDM900A, the valve-clearance section specifies 0.15–0.20 mm intake and 0.23–0.28 mm exhaust, with the engine cold at room temperature. Valve-pad selection tables accompany the adjustment procedure.

Clutch inspection distinguishes the standard friction-plate thickness of 2.90–3.10 mm from the 2.80 mm wear limit. Separate checks address steel-plate warpage, spring length and assembled clutch width.

Customer Reviews

Read what our customers say about this Yamaha Motorcycle manual and share your own experience.

Checkout
Yamaha TDM900 / TDM900A Service Manual Set 2002–2011 (P/N 5PS1-AE1) $19.00
