Yamaha FZS1000 Fazer & FZ1 Service Manual Set, 2001–2011 (P/N LIT-11616-14-48)
2,678 Pages • ZIP Download: 9 Printable PDFs • 78.89 MB
Yamaha Models Covered & Key Technical Specifications
Models: FZS1000 Fazer, FZ1-N, FZ1-S, FZ1-SA
Sub-models / Variants: FZS1000N, FZS1000NC, FZS1000R, FZS10R, FZS10RC, FZS10SPR, FZS10SPRC, FZS10V, FZS10VC, FZ1-N(W), FZ1-S(W)
Models & Model Codes:
FZS1000 Fazer / FZS1000(N) — 5VL1 (A, B, D, DK, E, GB, GR, I, N, NL, S, SF, CH, P), 5LV2 (F), 5LV3 (D), 5LV4 (AUS)
FZS1000N / FZS1000NC — 5LV5 (U.S. except California), 5LV6 (Canada), 5LV7 (California)
FZS1000R — 5LVF (A, B, D, DK, E, GB, GR, I, N, NL, S, SF, CH, P), 5LVG (D), 5LVH (F), 5LVJ (AUS)
FZS10R / FZS10RC / FZS10SPR / FZS10SPRC — 5LVK (U.S. except California), 5LVL (California), 5LVS (U.S. except California), 5LVT (California)
FZ1-N(V) / FZ1-S(V) — 2D11 (EUR), 2D13 (AUS), 3C31 (EUR), 3C33 (AUS), 3C37 (EUR), 3C39 (AUS)
FZS10V / FZS10VC — 3C34 (U.S.), 3C35 (California)
FZ1-N(W) — 2D14 (EUR), 2D15 (FRA, BEL), 2D16 (AUS)
FZ1-S(W) — 3C3A (EUR), 3C3B (FRA, BEL), 3C3C (AUS)
FZ1-SA — 5D01 (EUR), 5D02 (FRA, BEL)
Model Years: 2001–2011 (2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011
-
Engine displacement: 998.0 cm3
-
Compression ratio: 11.4:1 (FZS1000, FZS10R/FZS10RC/FZS10SPR/FZS10SPRC); 11.50:1 (FZ1-N/FZ1-S/FZ1-SA, FZS10V/FZS10VC)
-
Rim size (front): 17M/C x MT3.50
-
System voltage: 12 V
-
Starter motor output: 0.80 kW
-
Wet vehicle weight (FZ1-N(W)): 214.0 kg (472 lb)

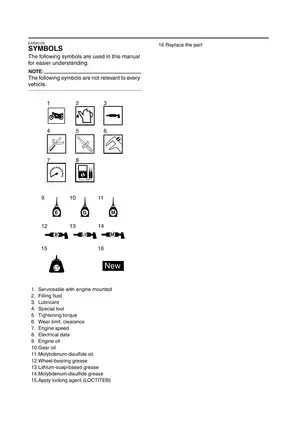

Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

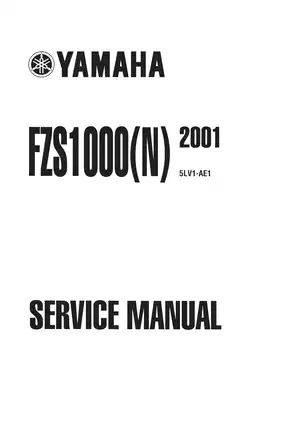

| 2001 FZS1000(N) service manual, Europe/Oceania — P/N 5LV1-AE1 | 403 |
| 2001 FZS1000N/FZS1000NC service manual, North America — P/N LIT-11616-14-48; manual code 5LV-28197-E0 | 394 × 2 identical files |
| 2003 FZS1000(R) supplementary service manual, Europe/Oceania — P/N 5LV1-AE2 | 38 |
| 2003 FZS10R/FZS10SPR/FZS10RC/FZS10SPRC supplementary service manual, U.S./California — P/N LIT-11616-16-33; manual code 5LV-28197-E1 | 25 |
| 2003 FZS1000(R) supplementary service manual, Spanish — P/N 5LV1-AS2 | 38 |

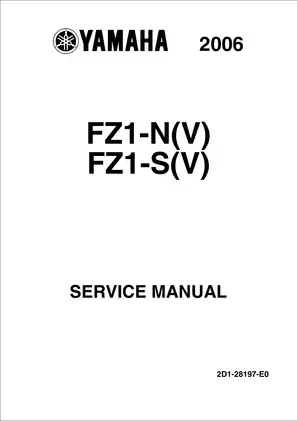

| 2006 FZ1-N(V)/FZ1-S(V) service manual, Europe/Australia — P/N 2D1-28197-E0 | 450 |
| 2006 FZS10V/FZS10VC service manual, U.S./California — P/N LIT-11616-19-79; manual code 3C3-28197-10 | 414 |
| 2007 FZ1-N(W)/FZ1-S(W)/FZ1-SA service manual, Europe/Australia — P/N 5D0-28197-E0 | 522 |
Use the 2003 supplements with their corresponding 2001 base manuals. The full workshop manuals follow Yamaha’s nine-chapter format, with separate publications for regional specifications, carbureted and fuel-injected models, and ABS-equipped configurations.
The Spanish supplement calls for the Spanish base manual 5LV1-AS1, which is not included. Separate 2008–2011 Yamaha manuals or addenda are not included in this download.
PDF Search, Bookmarks and Wiring Detail
Text search and diagram navigation: Service text is searchable throughout the set, although some covers and drawing labels are outside the searchable text. The European/Australian base manuals and the 2006 U.S. manual have chapter bookmarks; the two identical 2001 North American PDFs have none. Supplement navigation varies, with several European supplement bookmarks leading to the contents page. Small wiring labels require zooming.
The ZIP contains nine printable PDFs totaling 2,678 pages. The duplicated 394-page North American base manual leaves eight different PDFs totaling 2,284 pages. These totals include front matter, 17 front or rear cover pages, and 22 blank or watermark-only pages; eight files are in English and one supplement is in Spanish.
Engine Overhaul, Fuel Diagnosis and ABS Service
The following highlights are a selection of the included material, rather than a complete contents list. Other topics include air-induction-system checks and instrument functions.
-
Engine and drivetrain: Step-by-step procedures for engine removal, camshaft and valve service, crankcase disassembly, crankshaft and connecting-rod inspection, clutch repair, and transmission service.
-
Carbureted fuel systems: Carburetor removal, inspection and reassembly, synchronization, throttle-position-sensor adjustment, EXUP cable and servo checks, and fuel-pump diagnosis.
-
Fuel-injection diagnosis: Fuel-pressure testing, injector and throttle-body inspection, throttle-body synchronization, throttle and sub-throttle sensor adjustment, and sub-throttle servo checks.
-
Chassis and brakes: Wheel and brake service, hydraulic bleeding, fork disassembly, steering-head adjustment, rear-suspension inspection, swingarm service, and chain-drive procedures.
-
FZ1-SA ABS: Wheel-sensor and sensor-rotor maintenance, hydraulic-unit service, warning-light diagnosis, and malfunction-code troubleshooting.
-
Cooling and lubrication: Radiator and cap testing, thermostat inspection, water-pump disassembly and seal replacement, oil-pump inspection, and lubrication-system checks.
-
Electrical troubleshooting: Ignition, starting-interlock, charging, lighting and signaling circuit diagnosis, with component tests, wiring diagrams, and immobilizer procedures where fitted.

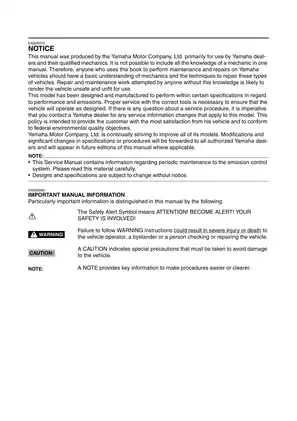

Yamaha prepared these manuals primarily for its dealers and qualified mechanics, assuming a basic understanding of mechanics and the techniques used to repair these vehicles.
From Carburetor Adjustments to ECU Fault Diagnosis

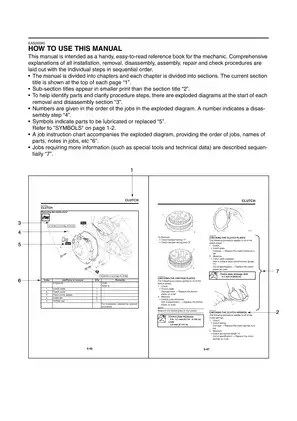

The maintenance chapters combine service schedules with valve-clearance adjustment, synchronization, compression checks, fluid changes, and chassis adjustments. Engine repair sections use exploded assembly views and job charts, followed by inspection, repair, reassembly, and final-check information.
Internal inspection extends to piston rings, bearing clearances, shift forks, and the shift drum. The 2003 supplements revise piston-clearance data, crankcase job diagrams, clutch-cable adjustment, throttle-position-sensor checks, and cable routing. The European supplement also updates lighting-system diagnosis and regional wiring diagrams.
The fuel-injection fault tables connect ECU codes with diagnostic-mode checks and component tests. This supports fault isolation between sensors, wiring, and related components before the corresponding repair procedure is selected. Applicable European/Australian editions also cover immobilizer troubleshooting and key-code registration; the 2007 book adds thermo-wax inspection and adjustment.
ABS Checks and Variant-Specific Routing
In the FZ1-SA material, the chassis chapter handles hydraulic-unit removal, installation, and operation tests. The electrical chapter covers stored and current malfunctions, code-based diagnosis, malfunction-code deletion, and post-repair verification, including final checks and a trial run.
Routing sheets distinguish naked, faired, and ABS layouts. They identify wheel-sensor leads, brake hoses, the ABS breather hose, immobilizer wiring, EXUP cables, and fuel-injection harness connections.
The FI fuel-connector cautions address tool damage, contamination at the sealing section, and double-lock engagement because these can affect leak prevention. ABS cautions cover dirt and impact damage to sensors and the hydraulic unit, along with front/rear brake-hose connections and required post-service checks.
Diagrams, Reference Tables and Yamaha Tools
Illustrations include the Engine Oil Lubrication Chart, Cooling System Diagrams, carburetor and throttle-body exploded views, FI circuit and self-diagnostic tables, ABS component and connector-location charts, and regional wiring diagrams.
Reference tables provide tightening torques, fluid capacities, pressure-test specifications, wear limits, clearances, and electrical test values. Special-tool listings include the vacuum gauge/synchronizer 90890-03094 / YU-44456, fork-seal driver 90890-01442 / YM-01442, and universal clutch holder 90890-04086 / YM-91042.
Secure the motorcycle on a stable stand and follow Yamaha’s battery-isolation, fuel-pressure, brake-fluid, and ABS precautions during service.
Examples of Valve-Clearance and Fuel-Pressure Data
For the 2007 FZ1-N(W), FZ1-S(W), and FZ1-SA, the valve-adjustment section specifies cold clearances at room temperature of 0.11–0.20 mm for the intake valves and 0.21–0.25 mm for the exhaust valves.
The same publication’s fuel-pressure test specifies 324 kPa (46.1 psi) with the engine running, alongside the pressure-gauge and adapter requirements.
