Yamaha GT80, DT80 & DT100 Factory Service Manual Set, 1977–1982 (P/N LIT-11616-03-05)

211 Pages • ZIP Download: Printable PDF • 21.80 MB

5.0starstarstarstarstar(1)
$19.30 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: GT80E, GTMXE, GT80G, DT80J, DT100D, DT100G, DT100J

Models & Model Codes:

GT80E — 2F4 (also engine code)

GTMXE — 367 (also engine code)

GT80G — 3J8 (also engine code)

DT80J — 3J8 (also engine serial prefix)

DT100D — 1T9 (also engine code)

DT100G — 3A3 (also engine code)

DT100J — 3A3 (also engine serial prefix)

Sub-models / Variants: GT80E, GTMXE, Enduro 80, Enduro 100

Trade Names: Autolube

Model Years: 1977–1982 (1977, 1978, 1979, 1980, 1981, 1982)

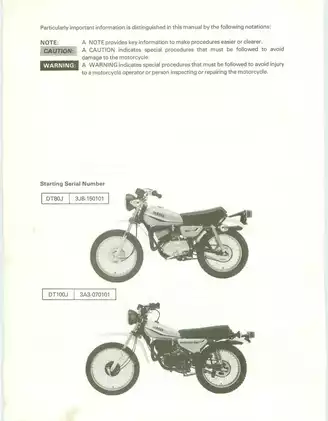

Serial Numbers: Frame and engine starting numbers: DT80J (frame 3J8-150101, engine 3J8-070101), DT100J 3A3-070101, GT80G 3J8-000101, GT80E 2F4-000101, GTMXE 367-400101, DT100D 1T9-000101, DT100G 3A3-000101


  • Engine displacement: 72 cc (GT80E, GTMXE, DT80J), 73 cc (GT80G), 97 cc (DT100 variants)

  • Engine type: Air cooled 2-stroke, gasoline, torque induction

  • Transmission: Constant-mesh, 4-speed (GT80/DT80 series), 5-speed (DT100 series)

  • Brake system: Front and rear drum brakes

  • Ignition system: Contact-breaker flywheel magneto (GT80E, GTMXE, DT100D). C.D.I. Magneto (GT80G, DT80J, DT100G, DT100J)

  • Spark plug: NGK B7HS (GT80E, GTMXE, GT80G, DT80J), B7ES (DT100G, DT100J), B8ES (DT100D)

  • Battery capacity: 6V 4AH (GT80E, GT80G, DT80J, DT100D, DT100G, DT100J)

Yamaha Manual Features & Selected Content Preview

Publication Pages
DT80J/DT100J Supplementary Service Manual (P/N LIT-11616-03-05) 31
GT80G Supplementary Service Manual (P/N LIT-11616-01-68) 22
GT80E/GTMXE Service Manual (P/N LIT-11616-00-75) 70
DT100G Supplementary Service Manual (P/N LIT-11616-01-67) 22
DT100D Service Manual (P/N LIT-11616-00-36) 65

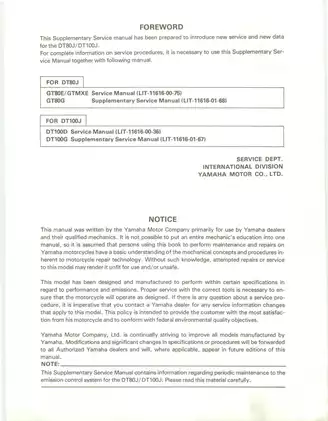

For DT80J service, Yamaha pairs the J supplement with the GT80E/GTMXE base manual and the GT80G supplement. For DT100J service, it pairs the same J supplement with the DT100D base manual and the DT100G supplement.

The J supplement's 80-series coverage is specific to the DT80J. The model codes and frame and engine starting numbers distinguish the covered versions.

PDF Navigation and Wiring Detail

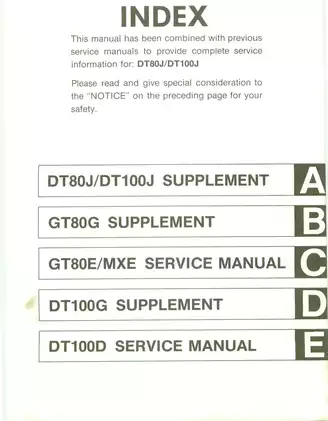

Finding sections and reading diagrams. The PDF has no text search or embedded bookmarks. Use the combined index and the A–E section tabs to locate each publication. Small wire codes and connector labels are easiest to read at higher zoom, especially on the lighter DT100D circuit sheet.

The ZIP contains one printable English-language PDF. Its 211 pages include the five publications with their covers and the one-page combined index.


Engine Overhaul, Chassis Service, and Ignition Tests

These are selected workshop topics. The books also cover fuel petcock screen cleaning and battery storage.

  • Engine overhaul: Engine removal and remounting, top-end teardown, piston and crankshaft inspection, crankcase separation, and bearing and oil seal service.
  • Clutch and transmission: Clutch and primary drive inspection, transmission shafts, shift cam and forks, kickstarter service, and reassembly adjustments.
  • Fuel, lubrication, and tune-up: Carburetor inspection and float adjustment, reed valve checks, air cleaner service, Autolube pump adjustment and bleeding, and scheduled maintenance.
  • Chassis service: Wheel bearings, rims and spokes, drum brake inspection, chain and sprocket service, front fork disassembly and seal replacement, steering head, and rear suspension.
  • Electrical testing: Breaker-point and CDI ignition timing, coil and condenser checks, charging output, rectifier and lighting tests, and J-model starting interlock diagnosis.
  • Workshop references: Exploded assembly views, cable routing drawings, wiring diagrams, tightening torques, fluid capacities, wear limits, and electrical test specifications.

Yamaha wrote these publications primarily for its dealers and qualified mechanics and assumes a working knowledge of motorcycle service and repair.

Crankcase, Clutch, and Primary Drive

Overhaul tools. Yamaha lists flywheel holder 90890-01235, flywheel puller 90890-01189, clutch holding tool 90890-01022, and crankcase separating tool 90890-01135, along with dial gauges, electrical testers, and fork seal tools. The exploded views show how the clutch, transmission, wheel and brake assemblies, front fork, and steering head fit together.

Reassembly details. The base manuals warn that forcing the crankcase halves apart or striking their mating surfaces can damage the joint, and they call out shift-fork position and orientation. The DT100G supplement identifies which end of clutch push rod No. 2 faces the push lever. The DT100D manual explains how to use the markings on the primary gears to select a replacement gear that brings backlash within specification.

Maintenance and Electrical Fault Finding

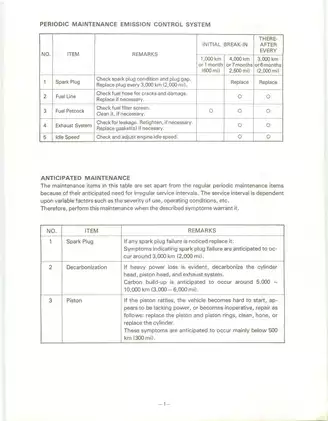

Maintenance schedules. The supplements give break-in and recurring service intervals, including emissions-related checks. They also describe how to judge when carbon buildup warrants cleaning the cylinder head, piston crown, and exhaust.

No-start diagnosis. The DT80J/DT100J fault chart helps isolate a fault in the ignition control unit from a problem with the neutral or sidestand switch. Separate wiring sheets cover the DT80J and DT100J, the GT80E circuit in the GT80E/GTMXE base manual, and the DT100G and DT100D circuits. Cable routing drawings include separate GTMXE views.

Fuel, ignition, moving parts, brakes, and batteries present shop hazards. Wear appropriate protective equipment, support the motorcycle securely, isolate electrical power where required, and follow shop ventilation and fire precautions.

Carburetor and Reed Valve Specs at a Glance

For the DT100G, Yamaha specifies a carburetor float height of 21.0 ± 2.5 mm (0.83 ± 0.1 in), measured with the carburetor inverted, the float tang just touching the needle, and the bowl gasket removed.

For the GT80E and GTMXE, the reed valve inspection gives a bending limit of 0.3 mm (0.012 in) for deciding whether a reed needs replacement.
