1979–1987 Yamaha QT50J / MA50 Yamahopper Service Manual (P/N LIT-11616-QT-50)

• 259 PDF pages total — a 92-page Yamaha compiled service publication LIT-11616-QT-50, a 120-page bilingual English/French QT50/MA50 service manual, and a 47-page QT50J owner's manual LIT-11626-02-97; a separate full-system wiring-diagram JPG is also supplied.
• Coverage is tied to factory identifiers: QT50J I.B.M. model code 5U9 with frame and engine starting number 5U9-000101; the base QT50/MA50 table lists I.B.M. 3L8 (4F0), engine model 3L5, and frame/engine starting number 3L5-700101.
• Covers engine removal, crankcase and crankshaft teardown, cylinder and piston inspection, clutch and kick-start service, transmission reassembly, shaft-drive work, and final engine installation.
• Details Mikuni VM12SC carburetor inspection and repair, reed-valve checks, air-cleaner service, Yamaha Autolube adjustment and bleeding, oil-pump diagnosis, and engine/transmission lubrication data.
• Explains the QT50J START/RUN engine-speed-control circuit, C.D.I. ignition operation and advance, magneto charge- and pulser-coil testing, charging and rectifier checks, and A.C./D.C. lighting and signal fault isolation.
• Includes front and rear wheel service, drum-brake inspection, wheel-bearing replacement, front-fork and steering-head work, cable routing, exploded assembly views, and model- or market-specific wiring diagrams.

Document Coverage and Publication Structure

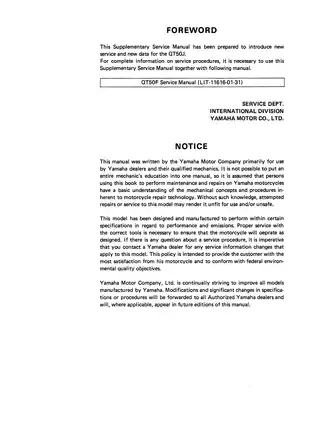

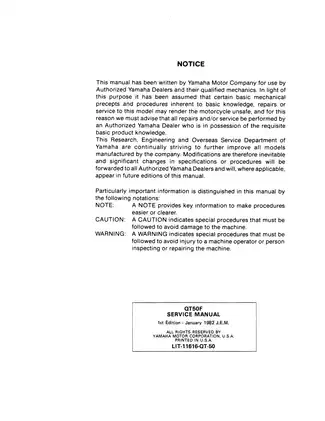

The 92-page PDF is arranged as a two-page compilation cover and notice, a 26-page QT50J supplement, and the 64-page QT50F base service manual. The supplement carries LIT-11616-02-97 and expressly directs the technician to use QT50F Service Manual LIT-11616-01-31, which is included in the same file. The compiled publication is identified as a first edition dated January 1982.

The separate bilingual QT50/MA50 service manual is a first edition dated September 1979. It substantially overlaps the earlier base repair material, but presents the procedures side by side in English and French. It also includes separate cable-routing and wiring pages labeled for machines outside Australia and New Zealand. The QT50J owner's manual is a first edition dated May 1981; it adds control operation, pre-operation checks, riding information, periodic maintenance, consumer and warranty material, specifications, and its own wiring diagram. The stated 259-page total is therefore the complete file count, not 259 pages of entirely unique workshop content.

Match the machine by the QT50/MA50 or QT50J designation and the listed 3L5, 3L8, and 5U9 identifiers. The set is organized by Yamaha model codes and starting numbers rather than by a single blanket model-year range.

Engine, Carburetion, and Power Train

The engine chapters follow the air-cooled 49cc two-stroke, reed-valve power unit through removal, disassembly, inspection, repair, reassembly, adjustment, and installation. Coverage reaches the cylinder head, cylinder, piston and rings, crankshaft, crankcase bearings and seals, wet automatic centrifugal clutch, kick starter, primary drive, transmission, middle and final drive, and rear-arm/shaft-drive assemblies.

Fuel-system coverage is strictly carbureted. The manuals document the Mikuni VM12SC carburetor, float and jet inspection, reed-valve service, air-cleaner maintenance, fuel-petcock cleaning, and Yamaha Autolube pump adjustment, bleeding, output checks, and troubleshooting. There is no fuel-injection section. Specification tables provide component torque data, fluid capacities, piston and cylinder inspection limits, ring clearances, crankshaft runout data, clutch wear limits, carburetor settings, and lubrication specifications without reducing the repair coverage to a list of isolated numbers.

The special-tool section identifies the Yamaha flywheel puller 90890-01189, crankcase separation tool 90890-01135, crank installer pot and bolt 90890-01274/90890-01275, flywheel holding tool 90890-01235, and electro tester 90890-03021.

Electrical, Chassis, and Diagnostic Material

The QT50J supplement's key model-specific system is the START/RUN engine-speed control. It maps the main switch, engine-speed-control unit, C.D.I., pulser and charge coils, ignition coil, regulator, rectifier, battery, and oil-level circuit. The operating description explains the START/RUN control logic and is followed by connection checks and model-specific test data.

The base electrical chapter adds ignition-coil and spark-gap testing, charging-output diagnosis, silicon-rectifier checks, battery service, and separate A.C. and D.C. lighting and signal troubleshooting. Chassis procedures cover both wheels and drum brakes, the shaft drive, front forks, steering-head bearings, control cables, throttle components, and cable junction maintenance.

Named visual references include the Basic Circuit Diagram, Parts Location, Method of Ignition Advance chart, Charging Circuit Test layout, Cable Routing drawings, and Wiring Diagram Except for Australia and New Zealand. Exploded views cover the carburetor, clutch, kick-starter, and transmission groups. Additional assembly drawings support crankcase, shaft-drive, wheel, brake, fork, and steering repair. The separate JPG places the complete QT50 wiring system on one sheet for harness tracing.

Repair Notes and Safety

The manual flags magneto-rotor removal as damage-sensitive: hammering can damage the rotor, and the specified puller is identified in the tool list. It also identifies the middle-driven-pinion screw as a left-hand thread, an easy fastener to damage if treated as a conventional thread.

These procedures involve gasoline, rotating components, brakes, and battery circuits. Confirm the model identifiers, follow the Yamaha cable-routing and polarity information, secure the machine, and observe the manual's cautions before testing or repair.
