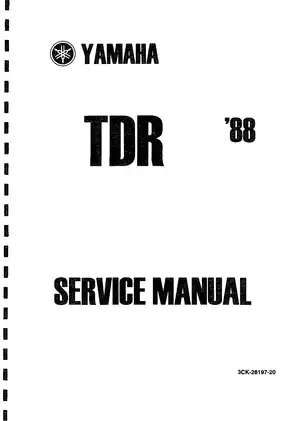

Yamaha TDR250 & TDR240 Service Manual, 1988 (P/N 3CK-28197-20)

Yamaha’s factory service manual (P/N 3CK-28197-20) covers the 1988 TDR250 (3CK) for markets except France and the French-market TDR240 (3CL). It provides model-specific specifications and step-by-step procedures for maintenance, diagnosis, and repair.

PDF Access, Wiring Detail, and Page Count

Search, navigation, and diagram detail: PDF text search and embedded bookmarks are unavailable. Small wiring labels require zooming; the YPVS circuit page has a speckled background that makes some fine details harder to read. The final wiring diagram is sideways, and some chassis pages appear outside their printed-page order.

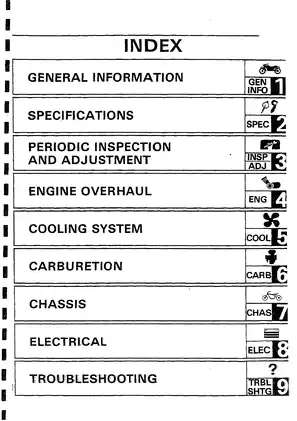

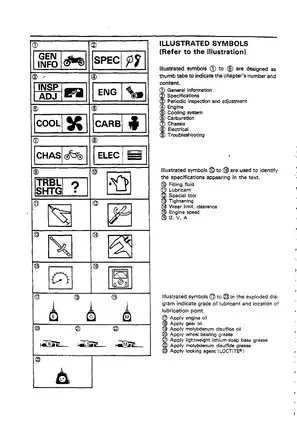

The ZIP download contains one printable English 338-page PDF, including two covers, 11 introductory/index/contents pages, 10 blank or header-only pages, and six memo pages.

Two-Stroke Powertrain, Chassis, and Electrical Service

The selected coverage below highlights major workshop procedures. Additional topics include battery and circuit-breaker inspection and headlight beam adjustment.

• Engine and transmission: In-frame service, engine removal, crankcase splitting, internal inspection, clutch repair, transmission and shifter service, reassembly, and remounting.

• Carburetion and intake: Carburetor removal, disassembly, inspection, assembly, and installation, plus synchronization, fuel-level adjustment, and reed-valve service.

• Autolube and YPVS: Oil-injection setup and bleeding, mechanical power-valve service, cable adjustment, and control-system troubleshooting.

• Cooling system: Water-pump repair, radiator and cap testing, thermostat inspection, coolant replacement, and leak checks.

• Chassis and brakes: Wheel and bearing service, hydraulic brake repair, front-fork overhaul, steering-head service, rear suspension, and chain and sprocket replacement.

• Electrical diagnosis: TDR wiring and system circuit diagrams, component tests, and fault-isolation charts for ignition, charging, lighting, signals, temperature indication, and YPVS.

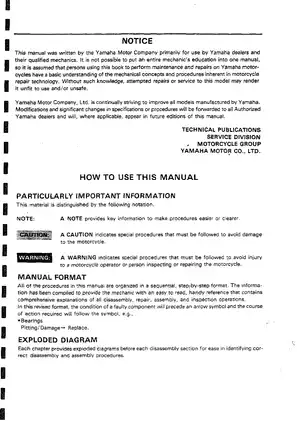

Yamaha wrote this manual primarily for dealers and qualified mechanics, assuming an existing understanding of mechanical concepts and motorcycle repair procedures.

Engine Teardown and Internal Inspection

In-frame work: The engine chapter identifies assemblies serviceable without engine removal, including the cylinder head, cylinders, pistons and rings, clutch, primary drive, kick and shift mechanisms, CDI magneto, oil pumps, and YPVS power valves.

Full teardown coverage continues through shift-cam and shift-fork removal, crankshaft inspection, assembly, and engine remounting. Final checks address cables, oil, coolant, clutch, chain, and YPVS adjustment.

Inspection data covers cylinder and piston wear, ring clearance, crankshaft runout and connecting-rod play, clutch wear and warpage, gearbox-shaft runout, gear engagement, and pump clearances and output. Fluid capacities, approved lubricants, fastener torques, and tightening sequences accompany the procedures.

The transmission exploded view identifies a replacement oil-seal and circlip arrangement that avoids crankcase splitting for that specific seal.

Carburetor Setup, Autolube, and Cooling

Model differences: The carburetor tables distinguish the two builds by identification mark, main jet, jet-needle setting, and power jet. Keeping these distinctions alongside the model-specific cylinder and piston data helps prevent parts and setup specifications from being mixed during a rebuild.

The Mikuni carburetor section includes a section view, cleaning and inspection criteria, float-height measurement, and idle adjustment. Reed-valve coverage adds stopper inspection and assembly orientation. Autolube instructions address cable alignment, minimum pump stroke, and bleeding the pump and delivery lines.

Water-pump service covers the impeller shaft and seals. Separate radiator-cap and cooling-system pressure tests support leak diagnosis, while thermostat testing addresses opening behavior.

Tools identified for this work include fuel-level gauge 90890-01312 and cooling-system tester 90890-01325 with adapter 90890-01352.

Wheels, Brakes, Steering, and Suspension

Wheel and hub procedures include bearing replacement and static balancing. Brake service extends to caliper pistons and seals, master-cylinder components, hydraulic bleeding, and operation checks.

Front-fork coverage addresses seals, guide bushes, damper components, oil level, and adjustment. Steering bearings and handlebars, swingarm bearings and linkage, and final-drive chain and sprockets have dedicated service sections.

The gas-charged rear shock is covered for safe handling, removal, inspection, and installation. Yamaha specifically prohibits opening its pressurized cylinder assembly; this section does not provide an internal shock rebuild.

During front-fork disassembly, the manual warns that bottoming the inner tube can damage the oil-lock piece. It also warns that spinning cleaned bearings dry with compressed air damages their surfaces.

Fork-seal driver 90890-01367 and adapter 90890-01372 are identified for fork assembly. Cooling-system work must account for hot pressurized coolant, and brake-system or nitrogen-charged shock work requires the workshop precautions stated in the manual.

Electrical Tests and Symptom Diagnosis

Electrical diagnosis uses switch-continuity charts, resistance and voltage checks, a dynamic spark test, and bulb and socket checks. The YPVS charts distinguish mechanical power-valve problems from servomotor, wiring, and control-unit faults.

The final symptom charts cover hard starting, poor idle or high-speed performance, gear-shift and clutch faults, kickstarter trouble, weak braking, fork leakage, unstable handling, lighting and signal faults, YPVS problems, and overheating or over-cooling.

Illustrations include the lubrication diagram, coolant-flow chart, cable-routing views, carburetor section view, front-fork exploded assembly, and TDR wiring diagram.

Numbered tools include clutch holder 90890-04086, flywheel puller 90890-01189, dynamic spark tester 90890-03144, and pocket tester 90890-03112.

Selected Piston-Clearance and Fuel-Level Specifications

The piston inspection section specifies piston-to-cylinder clearance of 0.050–0.055 mm for the TDR250 and 0.045–0.050 mm for the TDR240. These separate ranges accompany the model-specific cylinder and piston measurements used during top-end inspection.

For the warmed-engine carburetor fuel-level check, the specified level is 1.5–2.5 mm below the carburetor body edge. The manual distinguishes this running fuel-level measurement from the separate float-height check during carburetor assembly.
