Yamaha WR450FX 2008 Owner's Service Manual (P/N LIT-11626-21-57)

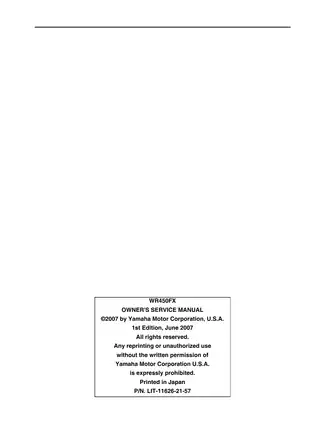

Yamaha’s 2008 WR450FX Owner’s Service Manual, first edition June 2007, P/N LIT-11626-21-57, covers model code 5TJJ. It combines operating guidance and routine maintenance with engine, chassis, and electrical repair procedures.

Text Search, Section Bookmarks, and Diagram Detail

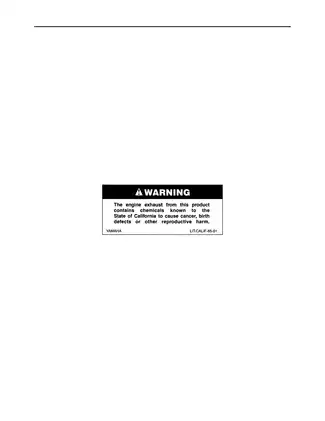

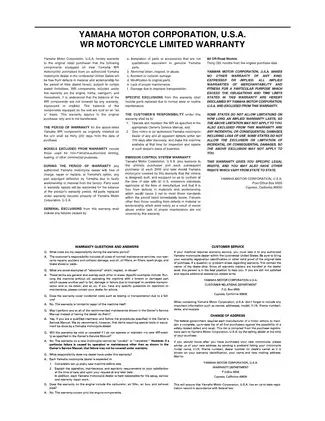

Search and navigation: The main chapter text is searchable, and embedded bookmarks link to sections. Some diagram labels and the preliminary warning and warranty pages are outside the text layer. Small wiring labels are readable when enlarged.

The ZIP contains one printable, 310-page PDF in English: 294 chapter pages, 14 preliminary pages including the front cover, one blank closing page, and the back cover.

Engine Teardown, Chassis Service, and Electrical Diagnosis

These selected content highlights show the main repair areas rather than a complete table of contents. Other topics include multi-function display setup and USA spark-arrester cleaning.

• Top-end repair: Camshaft and timing-chain service, cylinder-head removal, valve and spring work, and cylinder and piston inspection.

• Lower end and drivetrain: Engine removal, crankcase separation, crankshaft installation, clutch repair, and transmission, shift-cam, and shift-fork service.

• Carburetor and air induction: Carburetor removal and disassembly, float and accelerator-pump checks, throttle-position-sensor adjustment, and air-induction testing.

• Cooling system: Radiator removal, cap and system pressure checks, and water-pump shaft, bearing, and seal service.

• Wheels and brakes: Wheel-bearing replacement, brake-disc inspection, caliper and master-cylinder repair, brake-hose installation, and hydraulic bleeding.

• Suspension and steering: Front-fork overhaul, steering-bearing service, swingarm-linkage inspection, and rear-shock spring and bearing work.

• Electrical troubleshooting: Overall wiring diagram, ignition, starting, charging, sensor and lighting fault charts, speedometer diagnosis, and starter-motor repair.

Owner guidance covers basic upkeep; the engine, chassis, and electrical repair sections are written for mechanics with Yamaha servicing knowledge. Yamaha recommends dealer service for the front fork.

Valvetrain, Crankcase, and Transmission Work

The engine chapters cover the single-cylinder, five-valve head, dry-sump lubrication system, and wet multi-disc clutch. Exploded job charts accompany step-by-step procedures for work such as valve-guide replacement and crankshaft installation.

Valve-guide and seat inspection, spring and lifter checks, pad-selection tables, and piston-ring measurements support top-end evaluation. Timing-chain tensioner and decompression-system checks are also covered.

Lower-end coverage adds balancer and oil-pump inspection, AC magneto and starter-clutch service, kick/shift shaft work, and transmission gear inspection.

Camshaft installation notes explain the TDC and cam punch-mark relationships and warn that crankshaft movement during installation can cause damage or incorrect timing. Crankcase precautions address even separation and damage from striking mating surfaces or hammering the crankshaft.

The YU-A9642 / 90890-04152 crankcase separating tool and dedicated crankshaft installer are identified alongside the relevant procedures. Reference tables include engine and chassis tightening torques, the staged cylinder-head bolt angle-tightening procedure, clearances, runout limits, clutch wear limits, fluid capacities, and lubrication requirements.

FCR-MX39 Fuel System and Cooling Tests

The Keihin FCR-MX39 chapter distinguishes needle-valve, jet-needle, and throttle-valve checks from float-height adjustment. It also covers cold and hot starter plungers, the accelerator-pump diaphragm and timing, and the air-cut valve. Separate electrical procedures address the carburetor-mounted throttle-position sensor.

Cooling coverage connects radiator and hose inspection with cap and system pressure testing. The tool references include the YU-24460-01 / 90890-01325 radiator cap tester; water-pump procedures show impeller-shaft, bearing, and seal installation.

Brake, Fork, and Linkage Service

Brake drawings show piston seals, dust seals, master-cylinder kits, and hose orientation, with disc and pad wear limits and final leak checks. Front-fork instructions extend through damper-rod and seal work, oil-level setup, and installation, using the YM-A0948 / 90890-01502 fork seal driver.

Fork handling notes require complete air release and contamination control. Steering-stem bearings, the swingarm, relay arm, and connecting rod have separate inspection and assembly coverage.

Rear-shock scope is limited: Yamaha directs the technician not to disassemble the nitrogen-charged cylinder or reservoir, so this is not an internal shock-rebuild manual.

Use the complete factory procedure for brake, suspension, fuel, and internal-engine work rather than treating a content preview as repair instructions.

Electrical Fault Tracing and Chassis Tuning

Fault charts and tester-connection views help distinguish wiring, switch, relay, coil, and sensor faults before a CDI unit or rectifier/regulator is replaced. The overall wiring diagram includes USA/non-USA notes; electrical references include the ignition no-spark inspection chart, starting circuit cut-off diagram, throttle-position-sensor checks, and MF-battery charging charts.

Electrical specifications include resistance, voltage, and output checks. The tool list supplies U.S./Canada numbers and 90890-series equivalents, including the YM-34487 dynamic spark tester / 90890-06754 ignition checker.

Maintenance schedules distinguish emissions-related service, general maintenance, and competition use. Tuning covers final-drive sprocket selection, fork oil-level and spring changes, front and rear damping, rear-shock preload, and rider sag.

Spring specifications and suspension-setting charts relate component choices and handling symptoms to adjustment areas; engine lubrication diagrams and cable-routing views support reassembly.

A Preview of Valve-Clearance and Ignition Test Data

Cold valve-clearance specifications are 0.10–0.15 mm for the intake valves and 0.20–0.25 mm for the exhaust valves. The adjustment section pairs these ranges with pad-selection tables and camshaft timing references.

For ignition diagnosis, pickup-coil resistance is specified as 248–372 Ω at 20°C (68°F). The electrical chapter shows the corresponding tester connections and fault-isolation chart.
