1985 Yamaha XC125N/NC Riva Service & Repair Manual (P/N LIT-11616-04-16)

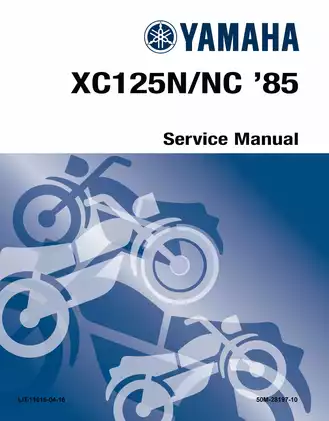

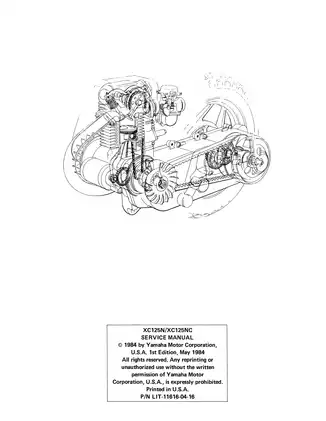

• 178-page PDF of Yamaha’s factory service manual for the 1985 Yamaha Riva 125 XC125N/XC125NC, first edition, May 1984, P/N LIT-11616-04-16; the cover carries document code 50M-28197-10.
• Coverage is tied to model codes 50M and California-only 50N, with starting VINs JYA50M00FA000101 and JYA50N00FA000101, plus starting engine serials 50M-000101 and 50N-000101.
• Engine chapters cover removal, complete disassembly, inspection and repair, reassembly, adjustment, and mounting of the cylinder head, valve train, piston and cylinder, crankshaft, balancer, oil pump, starter drives, and CDI magneto.
• Drivetrain and carburetion sections detail the automatic V-belt transmission, primary and secondary sheaves, centrifugal clutch, Y22V/TEIKEI carburetor, float and fuel-level adjustment, and wax-type auto-choke diagnosis.
• Chassis procedures address front and rear wheel removal, drum-brake service, wheel-bearing replacement, bottom-link front suspension, shock absorbers, and steering-head removal, inspection, bearing service, adjustment, and assembly.
• Electrical diagnosis includes circuit diagrams and fault-isolation charts for the starting, charging, ignition, lighting, signal, fuel-meter, switch, and auto-choke systems, together with component test specifications.

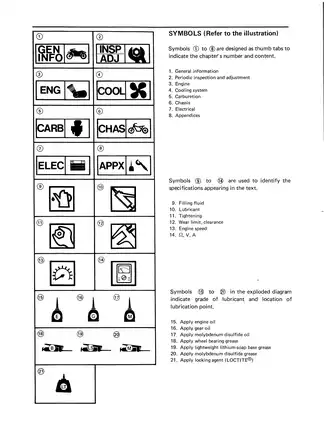

• Factory reference material includes special-tool numbers, maintenance intervals, component torque tables, capacities, wear limits, electrical test data, lubrication diagrams, exploded assembly views, and cable-routing drawings.

Exact 1985 Model Coverage

This is the Yamaha dealer-level workshop reference for the air-cooled, 4-stroke, 124cc SOHC single used in these 1985 scooters. Yamaha states that it was written primarily for dealers and qualified mechanics and assumes a basic understanding of motorcycle repair. It is also suited to experienced owners who already have that background and the specified workshop and test equipment; it is not an entry-level maintenance guide.

The California configuration is documented where its hardware differs. California-only canister hoses are identified during routine inspection, carburetor and engine work, and the final cable-routing section includes a dedicated XC125NC fuel-tank breather and valve layout. The serial and engine-number data help distinguish this version from the standard 50M model before parts or procedures are selected.

Engine and Drivetrain Repair

Body-access instructions cover the side and front covers, footrest board, leg shields, and handlebar covers before mechanical work begins. Periodic service procedures include valve-clearance adjustment, ignition-timing and compression checks, engine and final-gear oil service, filter and V-belt inspection, brake adjustment, battery care, and headlight service.

The engine-overhaul chapter follows the job from removal through teardown, inspection, repair, reassembly, adjustment, and mounting. Cylinder-head work includes valve-seat cutting and lapping, valve-guide replacement and reaming, valve-spring checks, rocker-arm inspection, and camshaft and cam-chain service. The lower-engine coverage adds cylinder and piston measurements, piston-ring checks, oil-pump inspection, crankshaft and connecting-rod checks, transmission gears and bearings, and balancer alignment.

A useful scope detail is easy to miss: the primary and secondary sheaves, carburetor, CDI magneto, and starter motor can be serviced without removing the engine. The drive-system section covers clutch-spring disassembly, sheave and torque-cam inspection, clutch-shoe and V-belt wear checks, directional belt installation, specified lubrication points, seal placement, and final assembly.

Carburetion, Electrical, and Chassis Detail

The carburetion chapter explains the slow- and main-metering circuits with a section view, then shows how the wax-and-thermostat auto choke and cold-starter nozzle system behave from cold start through warm operation. Carburetor removal, disassembly, passage and jet inspection, float-height setting, live fuel-level checking, and reinstallation are included.

Electrical coverage combines a full circuit diagram with dedicated starting, charging, ignition, lighting, signal, and auto-choke circuit views. Troubleshooting charts trace no-crank, no-charge, weak-spark, lighting, flasher, and warm-engine auto-choke faults. Component procedures cover starter-motor repair, relay and switch continuity, charging-voltage and charging-coil resistance checks, and rectifier/regulator testing. Separate checks address the ignition coil, pickup coil, horn, brake light, and fuel sender.

Exploded views cover the crankshaft and crankcase, primary and secondary sheaves with V-belt, cylinder head, carburetor, steering head, and starter motor.

Special Tools, Specifications, and Repair Cautions

Among the listed tools are the flywheel magneto puller (YM-01189), primary-sheave holder (YU-01701), and valve spring compressor (YM-04019). Electrical diagnosis calls for the Pocket Tester (YU-03112) and Electro Tester (YU-03021); valve-guide tools, steering ring-nut wrenches, and coil testers are also identified by part number.

Supporting data covers engine, carburetor, chassis, and electrical specifications, with component-specific torque tables, inspection limits, clearances, fluid capacities, and test values. Fitting a steering-head ball race out of square can damage the head pipe. In the charging system, a high-voltage insulation meter can damage the regulator, while shorted or reversed battery connections can damage the silicon rectifier. Proper maintenance requires foundational mechanical knowledge and the right tools to prevent equipment damage or personal injury.
