Yamaha XJ1100J Maxim 1982 Service Manual (P/N LIT-11616-02-78)
191 Pages • ZIP Download: Printable PDF • 11.15 MB
Yamaha Models Covered & Key Technical Specifications
Model & Model Code: XJ1100J Maxim (10M), 5-speed constant-mesh transmission
Model Year: 1982

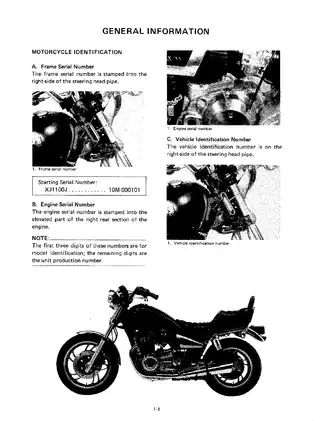

Serial Numbers: Frame and engine starting number 10M-000101
-
Engine oil capacity (with filter): 3.5 L
-
Crankcase M8 bolt torque: 24 Nm
-
Valve spring free length limit: Replace if more than 2 mm shorter than specified
-
Piston ring end gap: Top and second rings 0.2–0.4 mm (1.0 mm limit), oil control rails 0.2–0.9 mm (1.5 mm limit)
-
Rear brake pad thickness wear limit: 1.2 mm
-
Engine idle speed: 1,100 r/min
-
Spark plug gap: 0.7–0.8 mm
Yamaha Manual Features & Selected Content Preview
This Yamaha factory service manual (P/N LIT-11616-02-78) covers the 1982 XJ1100J Maxim, model code 10M, with frame and engine serial numbers starting at 10M-000101.
PDF Bookmarks and Wiring Diagram Readability
Search and navigation: Chapter and section bookmarks are available. The PDF has no built-in text search. Rotate and zoom the full wiring diagram to read the smaller wire codes. Some labels in the monitor and lighting diagrams remain hard to read when enlarged.
The ZIP contains one printable PDF with 191 pages, including the 34-page appendix.
Engine Overhaul, Unified Brakes, and Electrical Diagnosis
These selected topics give an overview of the service coverage. The manual also covers air-filter cleaning and headlight aiming.
-
Scheduled maintenance: Emissions and lubrication schedules, valve-shim selection, compression and ignition-timing checks, and engine and shaft-drive oil service.
-
Engine and gearbox: Step-by-step procedures for engine removal, crankcase disassembly and reassembly, clutch and transmission repair, and shift-mechanism inspection.
-
CV carburetion: Carburetor rack disassembly, float and fuel-level checks, and YICS synchronization with a shutoff tool and vacuum gauges.
-
Unified brakes: Pad replacement, front and rear caliper and master-cylinder service, and bleeding procedures for the linked disc brakes.
-
Chassis and shaft drive: Front fork, steering-head, rear shock, swingarm, and wheel service, with driveshaft and universal-joint inspection.
-
Electrical troubleshooting: Full wiring diagram, system schematics, and fault charts for the starter interlock, T.C.I. ignition, charging system, LCD monitor, lighting, and signals.
The manual is suited to mechanics familiar with motorcycle service and shop equipment such as the hydraulic press specified for primary-shaft damper disassembly.
Engine Maintenance and Internal Repair
The cylinder head, cylinder, and pistons can be removed with the engine in the frame. That distinction helps determine whether a top-end repair calls for engine removal.
The overhaul procedures cover valve guides and seats, camshafts and cam-chain timing, piston and ring inspection, and crankshaft and bearing checks. They also cover the oil pump and strainer, primary-shaft damper, starter clutch, generator and pickup-coil installation, and final assembly checks. Inspection data includes wear limits, clearances, runout, lubrication points, and tightening sequences.
The manual warns that uneven cam-cap tightening can damage the cylinder head, caps, and camshaft. Turning a camshaft the wrong way can bend a valve.
Periodic service also includes clutch adjustment, fork oil changes, suspension air-pressure settings by load, steering-head adjustment, battery service, spark plug and fuse checks, and generator-brush replacement. The ignition timing procedure verifies the factory setting with a timing light.
Carburetor and Fuel System
The manual explains how the CV rack’s two-position starter-jet system works and covers diaphragm and vacuum-piston inspection, jets and passages, float valves, and fuel petcock diaphragm checks. YICS synchronization and final idle-speed adjustment are covered separately from the factory-set idle mixture, which is left undisturbed during service.
Unified Brakes, Suspension, and Shaft Drive
The rear pedal operates the rear and left front discs, while the hand lever operates the right front disc. The brake chapter explains proportioning-valve operation and specifies replacement of a faulty valve as an assembly.
Fork service includes disassembly and reassembly. Forcing the fork cap with the damping adjuster rod misaligned can damage the rod and fork assembly. Rear shock coverage includes removal, leak checks, and paired replacement.

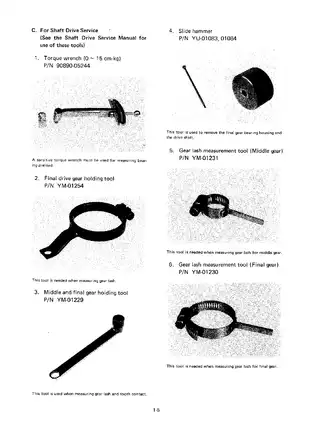

Middle gear and final drive coverage includes external inspection and gear-lash measurement. Internal overhaul and adjustment are covered in the separate Yamaha Shaft Drive Service Manual. Tubeless tire and wheel service is referred to the separate Tubeless Tire and Wheel Manual.
Wiring, Charging, and Monitor Tests
The electrical chapter includes schematics for the Electric Starting, Ignition, Charging, Computerized Monitor, Lighting, and Signal systems. Component-location drawings and relay, switch, continuity, and resistance tests help trace faults through the starter motor and its neutral, clutch, and sidestand interlocks.
Ignition and charging diagnostics cover the pickup coils, vacuum-advance pressure sensor, A.C. generator, and regulator/rectifier. The monitor section includes LCD removal and cleaning, plus checks for the fuel sender and oil, brake-fluid, and battery sensors. Separate tests cover the tachometer, headlight and taillight monitoring, reserve lighting, and self-canceling signals.
Special Tools and Workshop References

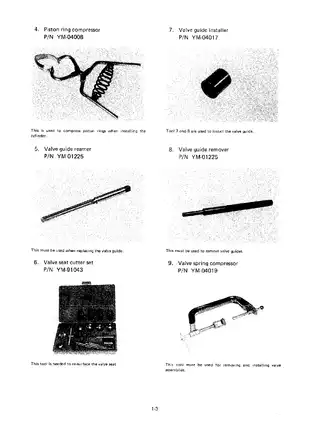

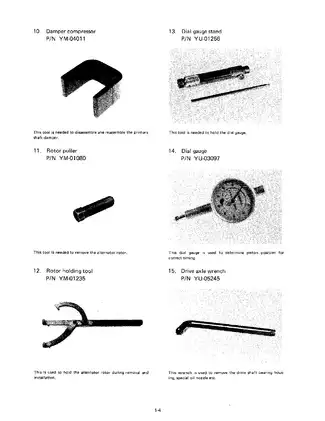

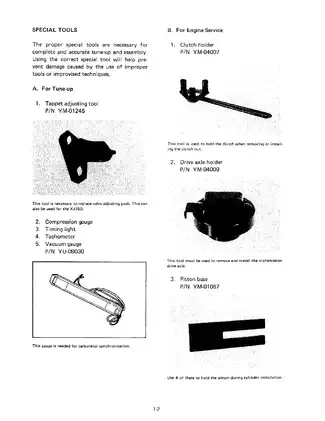

Tool references include the tappet adjusting tool (YM-01245), clutch holder (YM-04007), drive axle holder (YM-04009), rotor puller (YM-01080), vacuum gauge (YU-08030), and Yamaha pocket tester (YU-03112). The appendix includes engine and chassis torque tables, fluid and electrical specifications, conversion tables, a lubrication chart, exploded views, and cable-routing drawings.
Securely support the motorcycle during repair and follow the manual’s cautions for hydraulic pressure, loaded springs, and electrical work.
Sample Valve Clearance and Carburetor Fuel-Level Specs
The shim selection charts use cold valve clearances of 0.11–0.15 mm on the intake side and 0.21–0.25 mm on the exhaust side.
The CV carburetor fuel-level check specifies 3 ± 1 mm below the mixing chamber body edge, measured with the carburetors upright and level after a brief engine run.
