2000 Yamaha XVS125 Dragstar Service & Repair Manual (P/N 5JX1-AE1)

• Yamaha's first-edition January 2000 XVS125 Service Manual, covering model codes 5JX1 and 5JX2; cover publication code 5JX1-AE1; 321-page PDF.
• Covers engine removal and installation, front and rear cylinder-head work, camshaft and rocker-arm service, valve and valve-spring repair, piston and cylinder inspection, crankcase separation, crankshaft checks, and timing-chain installation.
• Details clutch, oil-pump, shift-shaft, generator, starter-clutch, and five-speed transmission disassembly, inspection, reassembly, and installation.
• Provides single-carburetor and fuel-pump repair, fuel-level setting, throttle-position-sensor adjustment, carburetor-heater diagnosis, starter-motor service, charging and stator testing, and engine-warning-light self-diagnosis.
• Includes front and rear wheel service, hydraulic front brake and drum rear brake repair, brake bleeding, front-fork overhaul, steering-head service, swingarm and rear-shock removal, drive-chain checks, and wheel balancing.
• Supplies general and component-specific torque data, maintenance schedules, lubrication points, wear limits, clearances, fluid specifications, electrical test values, circuit diagrams, cable-routing drawings, exploded views, and the full XVS125 2000 wiring diagram.

Document Overview

This PDF reproduces Yamaha's January 2000 factory service manual for the 2000 XVS125. It is not a generic multi-year repair guide: the specification chapter identifies the covered machines by 5JX1/5JX2 model code, and the electrical chapter gives the 5JX2 its own speed-sensor self-diagnosis path. The manual also shows where to find the frame-mounted model-code label, which is the practical reference to check before ordering parts or choosing a repair procedure.

The eight service chapters move from identification and special tools through specifications, scheduled maintenance, engine repair, carburetor and fuel-pump work, chassis service, electrical diagnosis, and symptom-based troubleshooting. Routine coverage includes valve-clearance inspection, ignition-timing and compression checks, engine-oil service, clutch and throttle-cable adjustment, air-filter and fuel-hose inspection, brake checks, drive-chain care, steering-head adjustment, spoke and tire checks, battery charging, fuse inspection, and headlight adjustment. The maintenance table separates initial service, recurring mileage-based work, and annual checks.

Engine coverage follows the air-cooled SOHC V-twin through bench repair rather than tune-up work alone. The manual documents complete engine removal, separate front and rear cylinder-head procedures, camshaft and rocker-arm service, valve-guide and valve-seat inspection, valve-spring checks, piston and ring inspection, generator and starter-clutch service, clutch repair, oil-pump inspection, crankcase separation, crankshaft and connecting-rod checks, and internal transmission work. The five-speed gearbox section covers the transmission shafts, shift forks, and shift drum through removal, inspection, and reinstallation, with the related wear limits and tightening data.

The fuel chapter is built around the single Mikuni BDS26 carburetor and its fuel pump. It covers carburetor removal, disassembly, inspection, assembly, installation, fuel-level measurement and adjustment, and throttle-position-sensor testing. Because this model uses one carburetor, the factory procedures focus on fuel level and TPS setup rather than multi-carburetor synchronization.

Repair, Diagnostic, and Reference Depth

Chassis repair includes front-wheel and brake-disc inspection, rear-wheel and drum-brake service, wheel-bearing and drive-hub checks, sprocket replacement, static wheel balancing, front brake pad replacement, master-cylinder and caliper overhaul, hydraulic brake bleeding, front-fork disassembly and reassembly, handlebar and steering-head work, rear-shock removal, swingarm inspection, and drive-chain removal and installation. This is also where the manual supplies fork-oil data, brake component limits, wheel and tire specifications, and chassis fastener torques.

Electrical diagnosis is arranged by circuit rather than as a single specification list. Separate sections cover switch continuity, bulbs and sockets, ignition, electric starting, starter-motor repair, charging, lighting, signaling, the carburetor-heater circuit, and self-diagnosis. The test material includes battery and fuse checks, ignition-coil and pickup-coil specifications, starter brush and commutator limits, charging-voltage diagnosis, stator-coil testing, rectifier/regulator fault isolation, and engine-warning-light condition codes for the TPS and the 5JX2 speed sensor.

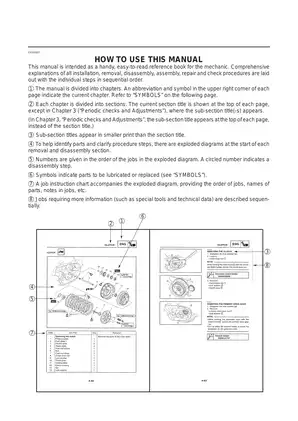

The illustrations support real workshop work. Notable examples include the engine-oil flow diagrams, cable-routing plates, transmission exploded views, front-fork exploded assembly, charging-system circuit diagram, and the full-page XVS125 2000 wiring diagram with component legend and wire-color key. Exploded drawings are paired with job charts that identify removal order, part names, replacement items, lubricants, special tools, and tightening points; they are service illustrations rather than a substitute parts catalog.

Yamaha tool references are included where ordinary hand tools are not enough. Representative examples are the tappet adjusting tool 90890-01311, fuel-level gauge 90890-01312, flywheel puller 90890-01362, front-fork seal-driver weight and adapter 90890-01367/90890-01369, valve-spring compressor 90890-04019, and pocket tester 90890-03112.

The manual also flags repair traps that matter on this V-twin. Front and rear cylinder timing references are not identical, and the timing chain must be controlled during cylinder-head removal; incorrect indexing can turn a top-end repair into a valve-timing fault. In the brake and fork sections, Yamaha warns that unsuitable or contaminated brake fluid can damage rubber seals, while scratches on the fork inner tube can compromise a new oil seal. Engine removal, hydraulic brake work, fuel-system repair, and live electrical testing should be carried out with the motorcycle securely supported and the relevant fuel and electrical circuits made safe.
