Yamaha YBR125 2005 Service & Repair Manual Set (P/N 3D9-F8197-E0)

This manual set brings together separate service publications for the YBR125ED and JYM variants. Use the publication matching the vehicle’s configuration; component specifications and adjustment data are specific to each edition.

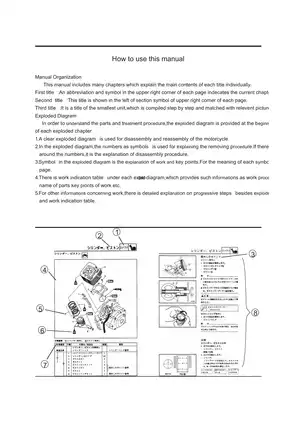

PDF Navigation and Diagram Readability

Search and wiring references: The YBR125ED PDF has searchable text and chapter and wiring-diagram bookmarks; its external return links point to files outside this ZIP. The JYM PDF is partially searchable, with image-based sections and no bookmarks. Small YBR125ED wiring labels are clear when enlarged. Some JYM circuit labels remain indistinct even at higher magnification.

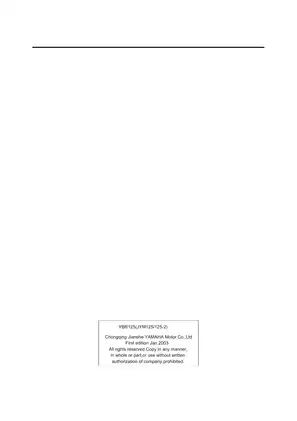

The ZIP contains two printable PDFs totaling 548 pages, including the original front matter in both publications, the YBR125ED rear cover and its two appended wiring-diagram sheets.

Engine, Chassis and Electrical Repair Coverage

Selected procedures below illustrate the service coverage. Lubrication Diagrams map the engine oil circuit, while Cable Routing drawings show hose, control-cable and wiring placement.

• Engine disassembly and repair: cylinder-head and valve work, piston and ring inspection, crankcase separation, and crankshaft and balancer removal and installation.

• Clutch and transmission service: friction-plate inspection, clutch pushrod adjustment, shift-fork and shift-drum checks, and internal gearshaft assembly.

• Mikuni VM22SH carburetor: removal, teardown, needle-valve inspection, reassembly and fuel-level adjustment.

• Chassis repair: front-fork rebuilding, steering-bearing inspection and wheel service. The YBR125ED volume includes Front Brake Master Cylinder and Front Brake Caliper exploded views, overhaul procedures and hydraulic bleeding instructions.

• Electrical fault tracing: ignition, electric starting, charging, lighting and signaling, with system circuit diagrams, connector checks and diagnostic charts.

These publications were written for Yamaha dealers and service-station mechanics with existing motorcycle repair knowledge.

Model Identification and Equipment

The YBR125ED manual identifies model code 3D91 and DC C.D.I. ignition. The JYM publication lists model code 5VL and engine code JYM154FMI. Both cover wet-sump lubrication, electric and kick starting, and a wet multi-plate clutch.

The JYM material addresses drum- and disc-front-brake configurations, spoked and cast wheels, and cable routing for different fairing arrangements. The YBR125ED configuration uses a front disc brake and rear drum brake.

Workshop Procedures and Diagnostic Coverage

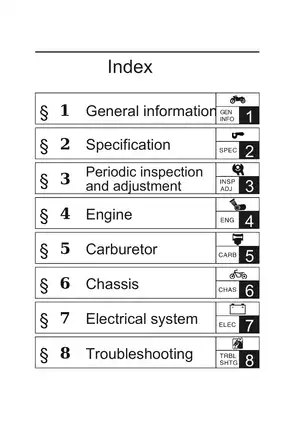

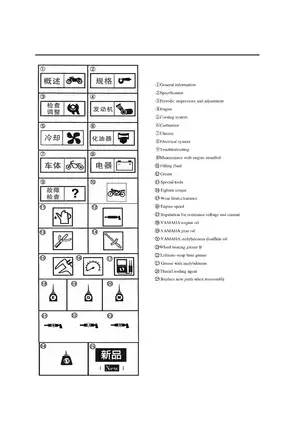

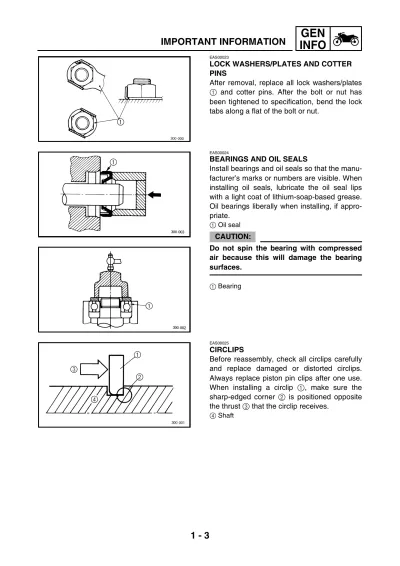

Each manual organizes its technical content into eight chapters. Periodic service includes intake and exhaust valve-clearance adjustment, compression testing and engine oil-pressure checks. The YBR125ED compression-test procedure relates the response to an oil-assisted retest to possible piston-ring, piston, valve or cylinder-head-gasket faults, helping direct subsequent inspection.

Internal engine work includes valve-seat lapping and oil-pump inspection, along with oil-strainer and rotary-filter service. YBR125ED reassembly procedures explain cam timing, balancer-gear alignment and transmission operation checks.

The YBR125ED volume covers exhaust-gas CO checks and coasting-enricher inspection. Its Air Induction System Diagrams accompany air cut-off valve, hose and pipe checks. A dedicated Carburetor Heating System circuit diagram supports heater-resistance testing and thermo-switch continuity checks through heating and cooling cycles.

Starter-motor repair includes commutator inspection, armature resistance and insulation testing, and brush wear checks. Troubleshooting addresses starting problems, compression loss and intake and exhaust faults. The 2005 index extends to difficult shifting, jumping out of gear, clutch slip and drag, overheating, poor braking and unstable handling.

Specifications, Special Tools and Repair Cautions

The specification sections supply engine and chassis torque tables, lubricant and fluid-capacity data, and wear limits. Electrical tables cover A.C. magneto output, coil resistance, battery specifications and headlight and signal-bulb ratings.

Special-tool references include crankcase separator 90890-01135, universal clutch holder 90890-04086 and fuel-level gauge 90890-01312. The YBR125ED tool list also gives U.S. and Canadian references, including YM-91042 for the clutch holder.

Repair cautions identify steering-head damage from incorrectly installed bearing races and brake-caliper piston-seal swelling caused by cleaning solvents. Before undertaking any mechanical work, verify proper motorcycle stabilization; battery charging requires adequate workspace ventilation.

Selected Valve-Clearance and Fuel-Level Specifications

For YBR125ED valve adjustment, the manual specifies cold clearances of 0.08–0.12 mm at the intake and 0.10–0.14 mm at the exhaust. These values accompany the valve inspection and adjustment procedures.

For the YBR125ED carburetor, the fuel-level specification is 6.0–7.0 mm below the float chamber mating surface, with the vehicle upright on a level surface. The fuel-level gauge measurement is tied to this reference surface.
