Yamaha YL-1 Factory Service Manual (1966–1972)

82 Pages • ZIP Download: Printable PDF • 23.64 MB

5.0starstarstarstarstar(1)
$17.60 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: YL-1 (engine: Yamaha L-1)

Sub-models / Variants: Export models (Singapore & other international markets)

Model Years: 1966–1972 (1966, 1967, 1968, 1969, 1970, 1971, 1972)


  • Engine: 2-stroke parallel-twin, 97 cc

  • Max Output: 9.5 bhp @ 8,500 rpm

  • Max Torque: 6.0 ft. lbs. @ 8,000 rpm

  • Bore x Stroke: 38 x 43 mm

  • Compression Ratio: 7.1:1

  • Transmission: 4-speed constant-mesh

  • Clutch: Wet, multiple-disc

  • Ignition Timing: BTDC 21° (1.8 mm)

  • Fuel Tank Capacity: 1.93 gal. (7.3 L)

  • Oil Tank Capacity: 1.16 qts. (1.1 L)

  • Front Fork Oil: 4.4 fluid ounces (130 cc) per side

Yamaha Manual Features & Selected Content Preview

Yamaha’s factory service manual covers the 1966–1972 YL-1. A separate electrical section covers the Yamaha 100 Twin Jet YL-1 export models for Singapore and other markets outside the United States and Canada.

PDF Pages and Wiring Diagram Detail

Search and diagram labels: The PDF has no text search or embedded bookmarks. Small labels on the wiring diagrams are best read at higher zoom. Some lettering on the color wiring diagram is faint.

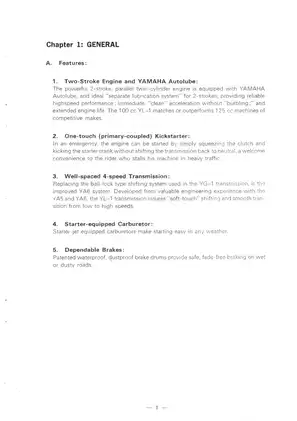

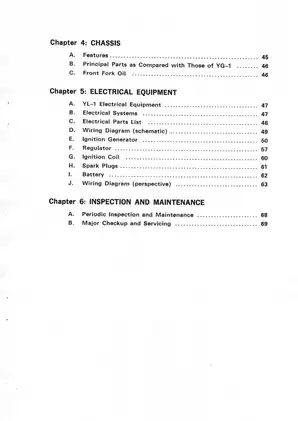

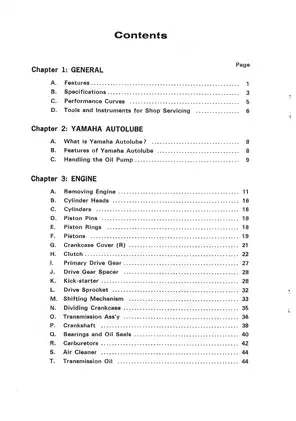

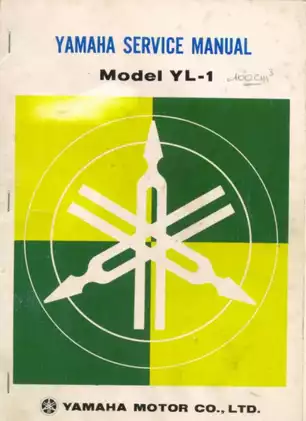

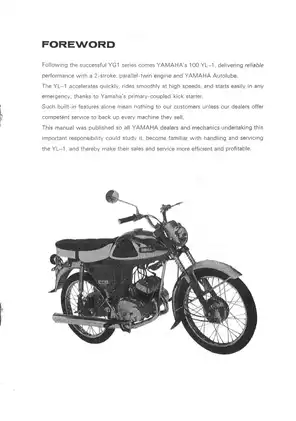

The ZIP contains one printable English-language PDF with 82 pages. That total includes 70 pages of main service material, six pages of export electrical coverage, the front and back covers, the foreword, the two-page table of contents, and one blank page.


Engine Repair, Autolube, and Electrical Testing

These are selected workshop topics. The manual also includes engine performance curves and guidance on reading spark plug condition.

  • Engine and transmission: Step-by-step engine removal, cylinder and piston service, crankcase splitting, transmission removal and reinstallation, and bearing and oil-seal replacement.

  • Clutch and kick starter: Wet-clutch inspection, primary-drive service, shift-mechanism checks, and troubleshooting for a slipping or failed primary-coupled kick starter.

  • Autolube and carburetors: Pump bleeding after removal or interrupted oil supply, twin-carburetor synchronization, pump-cable setting, and minimum plunger-stroke inspection.

  • Ignition and charging: Generator output tests, yoke and field-circuit checks, brush and commutator inspection, condenser testing, and ignition timing adjustment for each cylinder.

  • Export electrical system: A dedicated wiring diagram, alternator specifications, and individual silicon-rectifier element tests for the Hitachi AC-generator setup.

  • Chassis and maintenance: Periodic inspection schedules, brake and drive-chain service, and front-fork oil specifications. Yamaha refers mechanics to the YG1 Service Manual for chassis disassembly.

Yamaha wrote this manual for its dealers and mechanics responsible for servicing the YL-1.

Engine and Drivetrain Inspection

Yamaha gives cylinder reboring and honing limits, piston-pin and ring fit checks, and crankshaft checks for connecting-rod play and runout. Assembly drawings show the clutch layout, kick starter, shift mechanism, disassembled transmission, crankshaft assembly dimensions, and installation positions for bearings and oil seals.

Misplacing the clutch thrust bearing or its washers can let the clutch boss rub against the primary driven gear and interfere with clutch operation. Reversing the primary-drive spacer can damage the crankshaft oil-seal lip.

The shop tool list identifies the YA6 clutch holding tool, crankcase dividing tool, crankshaft installing tool, flywheel magneto holding tool, exhaust ring-nut wrench, and Hitachi armature puller.

Autolube Pump and Twin Carburetors

The pump setting is tied to the movement of both throttle valves, so the synchronization section helps you check the carburetor and pump-cable settings together after carburetor service. Yamaha covers shim correction, delivery-line inspection, and leak checks. It specifies replacement if the precision pump assembly itself leaks.

The carburetor section shows how to check the float and float valve when fuel overflows. It also covers carburetor cleaning and dry-paper air-cleaner service.

Standard and Export Wiring

The main chapter covers the 12V battery-ignition system, with regulator tests under load and no load, cutout relay checks, and ignition-coil spark tests. Schematic and perspective wiring diagrams show the lighting, switches, and harness, with a wire-color key for tracing circuits.

The export setup uses a 6V Hitachi AC generator, a bridge-type silicon rectifier, and its own ignition coils and lighting. Identifying the charging setup lets you choose the correct wiring diagram and test procedure. An open battery circuit while the engine is running can damage the export rectifier, including when a fuse blows or a lead comes loose. Reversed battery polarity can also damage it.

Before working on the wiring, support the motorcycle securely, stop the engine, and isolate the battery.

Chassis Differences and Periodic Service

The chassis chapter describes the reinforced frame, suspension, brakes, fuel tank, and seat. The parts comparison identifies the YGS-1 front fender and the stiffer YL-1 fork springs.

The major-service section covers clutch adjustment, transmission oil, carbon removal, fork oil, fasteners, battery care, and periodic Autolube checks. Factory reference data includes model dimensions, gear ratios, carburetor settings, fluid capacities, wear limits, and electrical test values.

Sample Carburetor, Autolube, and Dynamo Specs

For carburetor synchronization, Yamaha specifies 1–2 mm of free play at each B throttle cable. The Autolube pump’s minimum plunger stroke has a 0.15 mm inspection limit with the throttle closed.

For irregular charging voltage on the ignition-dynamo setup, the generator table gives a field-winding resistance of 5.2 Ω at 20°C.
