2005 Yamaha YZ250(V) Owner's Service Manual PDF (P/N 1P8-28199-31)

This is Yamaha’s Owner’s Service Manual P/N 1P8-28199-31 for the YZ250(V), 1st Edition, May 2005. Coverage is identified by market and model code: YZ250V / 1P85 for the USA and Canada; YZ250 / 1P86 for Europe; YZ250V / 1P88 for Australia and New Zealand; and YZ250 / 1P88 for South Africa.

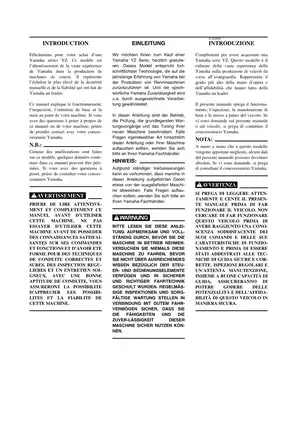

The download contains one 596-page PDF with English, French, German, and Italian text.

• Top-end and induction work: PWK38S carburetor removal, disassembly, inspection, reassembly, and setting; reed-valve service; and cylinder-head, cylinder, piston, piston-ring, and power-valve procedures.

• Bottom-end and transmission repair: Engine removal, crankcase separation, crankshaft inspection and installation, clutch and primary-drive service, kick and shift mechanisms, and the constant-mesh five-speed transmission with its shift cam and forks.

• Cooling and exhaust service: Radiator removal and pressure testing, coolant-system inspection, water-pump disassembly and reassembly, exhaust-pipe service, muffler inspection, and silencer-fiber replacement.

• Chassis repair: Wheel and bearing work, hydraulic brake caliper and master-cylinder service, system bleeding, front-fork disassembly and assembly, steering-head service, swingarm and linkage work, plus rear-shock removal and spring setup.

• Electrical fault finding: Wiring diagram, ignition-system fault isolation, spark-gap and coil testing, source- and pickup-coil checks, solenoid-valve diagnosis, and throttle position sensor (TPS) resistance checks, alignment, output-voltage adjustment, and input-voltage inspection.

• Specification and tuning support: Component torque tables, capacities, wear and runout limits, clearances, electrical test values, market-specific carburetor data, gearing choices, and front- and rear-suspension setup charts.

It is suited to experienced owners and mechanics familiar with two-stroke engine service and equipped with the specified pullers, holding tools, testers, and suspension tools.

Routine Service and Engine Repair

The regular inspection section covers the race-use maintenance schedule and pre-operation checks. Engine service includes radiator-cap testing, clutch and throttle adjustment, air-filter cleaning, transmission-oil service, pilot-air and idle-speed settings, spark-plug inspection, and ignition-timing verification.

Chassis checks cover brake pads and fluid, the chain and sprockets, spokes and wheels, and steering-head adjustment. Yamaha specifies this machine for single-rider competition on closed courses, not public-road use.

Internal repair coverage includes YPVS governor disassembly and inspection, plus CDI magneto removal and installation. The piston-and-cylinder matching chart identifies size grades A–D and piston color marks, helping select a matching piston before top-end reassembly.

Fork Service and Rear-Shock Limits

Suspension information goes beyond external clicker settings. The fork chapter covers removal, internal disassembly, seal and bushing inspection, damper bleeding, oil-level setup, and final installation. Yamaha recommends dealer service for the front fork.

The rear-shock chapter covers removal, spring and bearing work, inspection, and installation, but not internal disassembly of the nitrogen-charged cylinder or reservoir. Yamaha reserves shock-disposal depressurization for dealers.

Market-Specific Data and Illustrated References

Regional tables distinguish carburetor calibration, cylinder-head specifications, chassis geometry, and suspension data. The neutral-switch circuit and its routing apply outside the USA and Canada, another reason to match the model code and model label before selecting parts or repair data.

References include the Electrical Components and Wiring Diagram, the multi-page Cable Routing Diagram and brake-hose routing view, and the Ignition System inspection chart.

Tuning references include the Relationship with Throttle Opening carburetor chart, Examples of Carburetor Setting Depending on Symptom, and the front- and rear-Suspension Setting charts. Exploded assembly views and work-order tables open each major removal and disassembly section.

Special Tools and Component-Specific Cautions

The tool list gives both North American and international numbers. Engine tools include the crankcase separator YU-1135-A / 90890-01135, flywheel puller YM-1189 / 90890-01189, and crankshaft installation tools YU-90050 and YU-90063 / 90890-01274, -01275, and -01278.

Fork cap tools YM-01500 and YM-01501 / 90890-01500 and -01501 and Yamaha pocket tester YU-3112-C / 90890-03112 are also listed.

The YPVS push-rod instructions warn of power-valve damage if the supplied set pin is omitted. Fork repair notes cover trapped-air precautions before base-valve removal and the risk of losing the damper rod inside the assembly when its locknut is removed.

Factory warnings also address hot coolant, brake-fluid handling, fork contamination, and the high-pressure nitrogen rear shock.

File Format and Readability

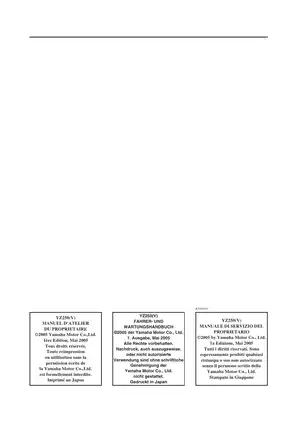

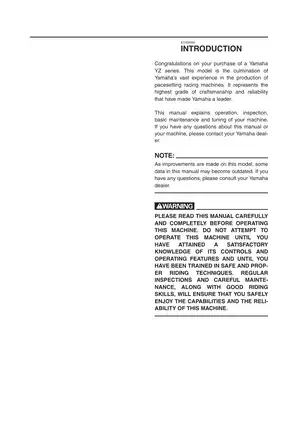

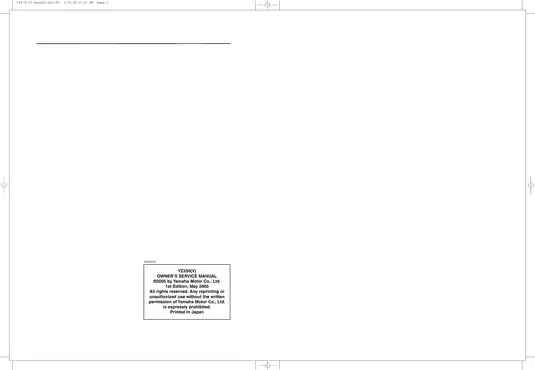

The page total includes 25 front-cover and introductory pages, two memo pages, one blank page, and the back cover. These pages are already included in the total; no separate supplement is supplied.

Text search: Body text and tables are searchable. Labels inside the embedded wiring-diagram image are not searchable.

Navigation: Embedded PDF bookmarks are organized by language and section. Chapter-level entries lead to the contents pages; subsection entries link to the relevant procedures.

Wiring diagram: Small connector labels and wire-color codes are clearly readable when enlarged.
