Yamaha YZ250J 1982 Owner’s Manual: Tuning & Service (P/N LIT-11626-03-15)

115 Pages • ZIP Download: Printable PDF • 46.14 MB

4.6starstarstarstarstar_half(5)
$19.10 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Model & Model Code: YZ250J (5X5; engine model: 5X5; transmission: constant-mesh 5-speed, return shift)

Model Year: 1982

Serial Numbers: 5X5-000101 (frame and engine starting number)


  • Transmission oil capacity (periodic oil change): 850 cm³ (0.89 US qt)

  • Cooling system capacity: 1.0 L (1.057 US qt)

  • Fuel tank capacity: 9.0 L (2.4 US gal)

  • Spark plug torque: 25 Nm (18 ft·lb)

  • Front wheel axle torque: 60 Nm

  • Front fork oil level: 150 mm

  • Fork oil viscosity: 7.5 wt

Yamaha Manual Features & Selected Content Preview

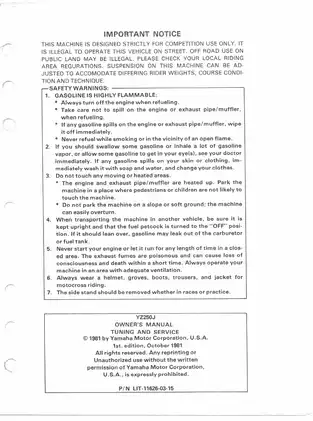

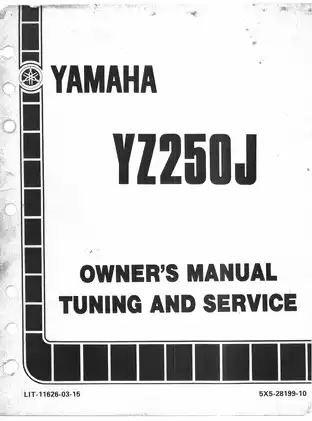

Yamaha’s YZ250J Owner’s Manual: Tuning and Service covers the 1982 competition model, identified as 5X5. This first edition, dated October 1981, carries P/N LIT-11626-03-15 and cover code 5X5-28199-10. It combines operating guidance and routine maintenance with suspension tuning and internal engine repair. Yamaha describes the machine as competition-only, without highway-approved lighting.

Printable PDF, Chapter Bookmarks, and Diagram Detail

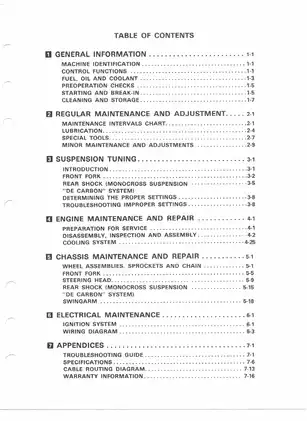

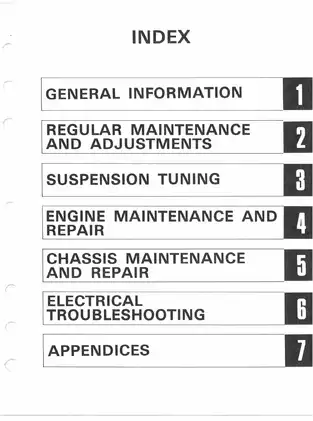

Search, navigation, and drawings: PDF text search is not available. Seven embedded bookmarks provide access to the main chapters. Small wiring and cable-routing labels are readable when enlarged; zooming is needed for the smallest details.

Supplied as a 115-page printable PDF in one ZIP archive. The total includes five cover and preliminary pages, seven chapter divider pages, and the appendices with warranty information.


Engine Repair, Monocross Tuning, and CDI Diagnosis

These selected topics outline the repair and tuning coverage. Other sections include cleaning and storage guidance.

  • Engine and transmission work: Step-by-step procedures for engine removal, top-end disassembly, clutch service, kick-starter and shifter repair, crankcase splitting, crankshaft installation, and transmission inspection and reassembly.

  • Fuel, induction, and exhaust: Carburetor inspection and track-condition tuning, float-height and jetting checks, reed-valve inspection, power-valve alignment and operation, and muffler carbon and crack inspection.

  • Cooling-system procedures: Coolant draining and refilling, radiator-cap valve checks, radiator-core inspection, system pressure testing, hose and leak diagnosis, and water-pump disassembly and reassembly.

  • Suspension and chassis repair: Front-fork oil service and internal repair, fork and Monocross tuning, wheel and drum-brake work, chain and sprocket inspection, steering-head service, and swingarm and linkage checks.

  • Troubleshooting and electrical tests: Symptom charts for starting, high-speed running, overheating, coolant loss, clutch, shifting, brakes, steering, and wheel runout, plus CDI ignition tests.

  • Drawings and reference data: Carburetor exploded view, transmission layout, front-fork assembly, Monocross shock and linkage views, CDI wiring diagram, and cable-routing drawings, with component specifications and torque tables.

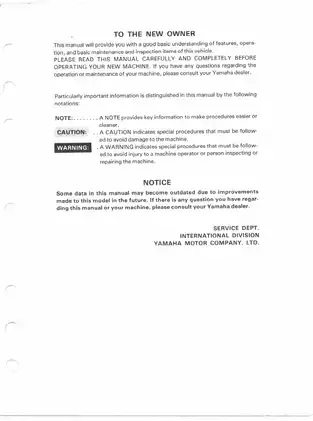

Yamaha addresses the book to the new owner, but its engine-teardown, fork, and electrical repair procedures are best suited to experienced owners or mechanics with the specified pullers, holders, gauges, and measuring equipment.

Engine and Drivetrain Inspection

Cylinder checks cover taper, out-of-round, and ring seating. Clutch inspection distinguishes friction-plate wear, plate warpage, and spring deterioration.

Crankshaft and connecting-rod measurements accompany checks of transmission shafts, gear dogs, shift forks, and shift-cam parts. Bearing and oil-seal installation, crankcase sealing, and final shaft-movement requirements support reassembly. Crankshaft repairs are referred to a Yamaha dealer.

Yamaha warns that hammering a sticking piston pin can damage the connecting rod, piston, and bearing. The power-valve section also warns that leaving the temporary locating pin installed prevents correct valve operation and reduces high-speed power.

Carburetor and Ignition Fault Diagnosis

The carburetor guidance connects rich or lean running symptoms and spark-plug condition with throttle opening. It explains the roles of the air screw, jet-needle clip position, and main jet when evaluating running problems.

The ignition test sequence helps narrow weak- or no-spark faults through checks of the plug, connectors, stop switch, ignition coil, magneto coils, and CDI unit. Illustrated tester connections and resistance specifications support fault isolation before components are selected for replacement.

Cooling Tests and Steering-Head Seals

Coolant-loss diagnosis includes steering-head leakage, with pipe-joint O-ring inspection covered in the steering chapter. Water-pump assembly notes address oil-seal protection and engagement of the pump and governor drive components.

The cooling chapter cautions against opening or draining a hot, pressurized system.

Suspension Setup and Rear-Shock Limits

The suspension chapter relates rider weight, ability, and track conditions to spring selection, fork oil weight and level, fork-clamp position, rear spring preload, and compression and rebound damping.

Front-to-rear balance checks and symptom tables address pushing or knifing in turns, high-speed searching, rear-wheel skitter, poor drive traction, and jump-landing behavior. During fork repair, Yamaha warns that incorrect handling of the damping cylinder can damage its cylinder and valve.

The nitrogen-charged Monocross “De Carbon” rear shock is covered for tuning, removal, installation, and dealer-only disposal, not internal shock overhaul. Yamaha warns against opening the cylinder or reservoir and directs pressure changes to a dealer with the required equipment. Wheel and swingarm bearing replacements are also referred to a dealer.

Factory Tools and Maintenance References

Timing and steering tools: Yamaha lists the ignition-timing dial gauge, stand, and extension as 90890-03097-00, 90890-01195-00, and 90890-03098-00. The steering-nut wrench is 90890-01268-00.

Fork and clutch tools: The fork-cylinder holder and adapter are 90890-01326-00 and 90890-01327-00; the clutch holding tool is TLM-90910-42-00.

Crankshaft and rotor tools: The crankcase separator is 90890-01135-00. Crankshaft installation uses tool 90890-01274-00, spacer 90890-01016-00, and bolt/adapter 90890-01275-00 and 90890-01278-00. The magneto rotor puller is listed as 2K7-8555-00.

Separate schedules cover preoperation checks, new-machine and replacement-part break-in, race-based maintenance intervals, and lubrication points. Reference tables consolidate fluid capacities, wear limits, carburetor settings, cooling-system tests, suspension settings, brake limits, electrical resistance values, engine and chassis torques, and metric-to-inch conversions.

A Preview of Piston and Clutch Inspection Data

The piston section specifies nominal piston-to-cylinder clearance of 0.060–0.065 mm. Its cutaway-piston measurement method explains how the measured skirt dimension is corrected before clearance is assessed.

For clutch inspection, friction plates are listed at 3.0 mm new thickness with a 2.7 mm wear limit. These figures accompany component inspection guidance for evaluating clutch wear.
