Yamaha XJ650 Turbo Seca & XJ750 Manual Collection, 1980–1985 (P/N 4K0-28197-80)

The Yamaha supplements build on their matching base manuals; the Turbo volume already combines its supplement with the XJ650G manual. The two standard XJ650 files reproduce the same base publication, while Haynes provides a separate photographic repair guide.

Coverage limits: Haynes expressly excludes XJ650 Turbo models; Turbo-specific work is covered in the Yamaha XJ650LJ volume. The supplied Haynes file skips printed pages 258–259, including the beginning of its chapter on the 1983 US models.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: PDF text search is unavailable in all ten files. Embedded bookmarks are present in the 352-page XJ650 copy and the XJ650J, XJ650RJ and Police supplements; the Police outline includes an inactive circuit-diagram bookmark. Small wiring labels require zooming, and some details in the bookmarked base copy and standalone Maxim G file remain faint.

The ZIP contains 10 printable PDFs totaling 1,744 pages, including original covers, eight memo pages and two additional nontechnical pages in the Turbo volume. The standard XJ650 manuals and their two European supplements present English, French and German; the remaining files are in English.

Engine Overhaul, Shaft Drive and Variant-Specific Systems

The following selected coverage highlights outline the main workshop areas rather than reproduce the full contents; further topics include fuel-petcock inspection and headlight adjustment.

• Engine and transmission: Engine removal, cylinder-head and crankcase disassembly, internal inspection, clutch repair, transmission service, engine assembly and remounting.

• Maintenance and carburetion: Maintenance and lubrication charts, valve-shim selection, cam-chain service, ignition timing, compression testing and carburetor synchronization, including YICS procedures.

• Brakes and suspension: Wheel-bearing replacement, front-brake caliper and master-cylinder repair, front-fork overhaul, steering-head rebuild, swingarm service and rear-shock inspection.

• Shaft drive: Final-drive troubleshooting, gear-lash measurement and adjustment, gear-unit disassembly and reassembly, and drive-shaft and joint inspection.

• Electrical diagnosis: Starting, charging, ignition, lighting and signal-system diagrams and tests, with variant-specific starter interlocks, sidestand relays and diode-block checks.

• Turbo systems: Turbocharger inspection and replacement, wastegate testing, pressurized carburetion, fuel-pump circuitry, scavenging lubrication and boost-sensor inspection.

• Police equipment: Country-specific wiring, digital police-meter adjustment, siren and microphone circuits, patrol switches, warning lights and computerized-monitor-system checks.

Yamaha’s factory volumes were written for dealers and qualified mechanics; the Haynes guide also addresses owners performing routine maintenance and home mechanics equipped for more involved repair work.

Engine, Carburetion and Repair Planning

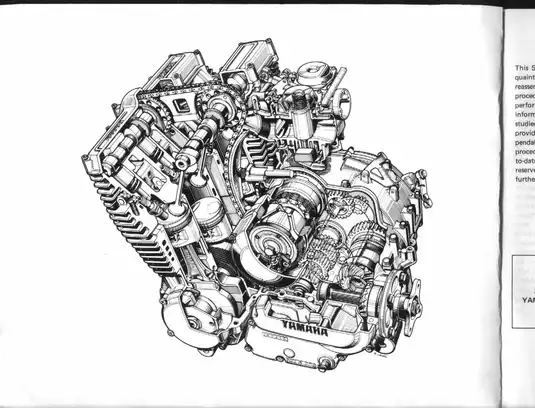

Overhaul depth: Internal inspection extends through valves, guides, seats, springs and lifters; camshafts, cam chain and sprockets; cylinders, pistons, rings and pins. Lower-engine coverage includes the crankshaft, oil pump, clutch, transmission, starter drives, crankcases, strainer cover, bearings, oil seals and middle gear.

Engine-removal preparation covers the fuel tank, battery and air-cleaner cases, brake pedal and exhaust, wiring and cables, oil cooler and horns, and drive-shaft joint. The cylinder head, cylinder and pistons can be removed without taking the complete engine out of the frame, which matters when planning a top-end repair.

Carburetor differences: Standard-model coverage includes Hitachi HSC32 section views, specifications, disassembly, inspection, adjustment and crankcase-ventilation service. The supplements add YICS synchronization and automatic cam-chain-tensioner information; the Turbo uses pressure-sealed Mikuni BS30 carburetors.

Yamaha cautions against separating the standard carburetor bank during normal cleaning: its support screws are secured with locking compound, and separation can leave the carburetors misaligned.

Chassis and Final-Drive Repair

The chassis procedures distinguish the front disc-brake assemblies from the rear drum brake and cover wheels, axles, tires and tubes. Step-by-step instructions address fork disassembly and reassembly, steering bearings and brake hydraulic components; applicable supplements add air-assisted suspension adjustments.

Final-drive instructions identify the drive-pinion bearing retainer’s left-hand thread, helping prevent thread damage during disassembly. Replacement rules distinguish the pinion bearings and races that cannot be reused after removal from an undamaged roller bearing that may be reused.

Turbo and Police-Specific Service

Turbo scope: The XJ650LJ volume explains the surge tank, reed and relief valves, pressure regulator, check valve, electric fuel pump and oil-scavenge system. It includes fairing-removal access information, exhaust-system removal and installation, actuator/wastegate inspection, pressure-sensor testing and emergency shutoff and fuel-pump relay checks.

The turbocharger is treated as a replacement assembly: Yamaha prohibits disassembling the unit itself and specifies complete replacement if it fails.

Police systems: The Police supplement separates equipment configurations by country and switch type. Its digital police-meter adjustment information and equipment-specific circuits support work on sirens, microphones, rotary warning lights and patrol-light controls.

Electrical Tests, Illustrations and Special Tools

The electrical chapters separate starter-motor, A.C. generator and voltage-regulator diagnosis from ignition, lighting, signal and battery checks. Later-model supplements explain how the neutral, clutch and sidestand circuits interact, providing context for tracing a no-start condition.

Reference drawings include the carburetor section view, XJ650 circuit diagram, clutch and transmission exploded views, middle gear/damper illustration, final gear/drive-shaft assembly and front-brake master-cylinder/caliper views. Appendices supply component-specific torque tables, lubrication diagrams, cable routing, wear limits and electrical test specifications.

Tool references include tappet adjusting tool 90890-01245, final-gear lash measurement tool 90890-01230 and YICS shutoff tool 90890-04068. Front-fork cylinder holder 90890-01300 and pocket tester 90890-03104 are also identified with their applications.

Brake, wheel, steering, and shaft-drive work directly affects roadworthiness. Follow the model-specific procedures, replacement rules, torque data, and final checks in this manual before returning the motorcycle to service.

Clutch Wear and Turbo Sensor Specification Examples

The 4K0 base manual’s clutch inspection table gives friction-plate thickness as 3.0 mm standard and 2.8 mm at the wear limit, with maximum clutch-plate warp of 0.05 mm.

For the XJ650LJ, the pressure-sensor inspection section specifies approximately 2.0 V DC output with the sensor’s pressure intake open to the atmosphere. The accompanying circuit and output graph relate this value to the sensor inspection.
