Cessna Skywagon 180H, 180J, A185E, A185F & AGcarryall Series (1969-1976) - Thorough Airplane Service Manual

Cessna Skywagon 180/185 & AGcarryall Service Manual - 1969-1976

This professional Service Manual provides the technical foundation for the maintenance, repair, and inspection of Cessna Skywagon and AGcarryall series aircraft. Operational uptime is secured through the application of precision factory benchmarks, including the critical requirement to spray rudder trim wheel threads with Electrofilm Lubri-Bond "A" to prevent binding. This documentation ensures that all semimonocoque airframe repairs and Continental engine services adhere to original equipment manufacturer (OEM) standards.

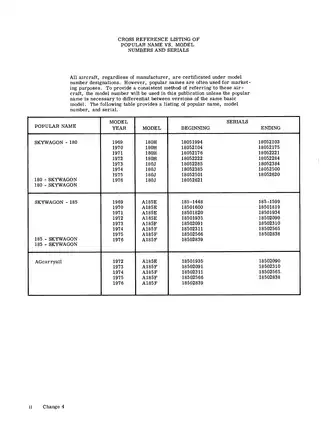

Technical Applicability & Model Configurations: Model Year 1969–1976

Cessna 180 Skywagon Series (Continental O-470 Engines)

• 180H Generation (1969–1972): Serials 18051994 through 18052284.
• 180J Generation (1973–1976): Serials 18052285 through 18052620, and 18052621 and on.

Cessna 185 Skywagon Series (Continental IO-520 Engines)

• A185E Generation (1969–1972): Serials 185-1448 through 18502090.
• A185F Generation (1973–1976): Serials 18502091 through 18502838, and 18502839 and on.

Cessna AGcarryall Specialized Agricultural Variant

• A185E Configuration (1972): Serials 18501935 through 18502090.
• A185F Configuration (1973–1976): Serials 18502091 through 18502839 and on.

Strategic Operational Advantages

• Maintenance Precision: Integration of recommended nut torque values for steel nuts on oil-free cadmium plated threads ensures structural integrity during component installation.
• System Reliability: Specific procedures for cleaning and inspecting carburetor drain plugs prevent thread sealant contamination in the float chamber.
• Component Longevity: Detailed lubrication schedules for Oilite bearings, needle bearings, and pivot points minimize frictional wear across all control surfaces.
• Safety Compliance: Step-by-step instructions for 50, 100, and 200-hour inspections facilitate adherence to Federal Aviation Regulations for both private and commercial operations.

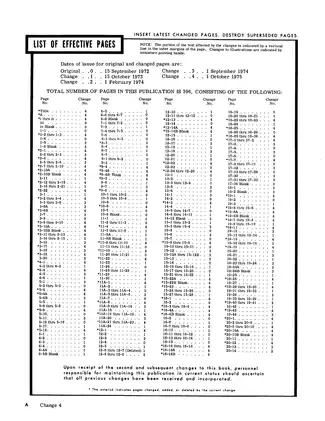

Technical Document Metadata

• Print Number: D2000C4-13
• Total Page Count: 396 Pages
• Document Edition: Original Issue Sept 1972 (Includes Change 4, Oct 1975)

Technical Depth & Factory Benchmarks

System calibration relies on exact travel limits and tension settings. Aileron system rigging requires a carry-thru cable tension of 40 lbs (±10 lbs), while wing flap systems must maintain a tension of 30 lbs (±10 lbs) at average ambient temperatures. Control surface travels are defined by specific degree tolerances, such as aileron travel set at 20° Up and 14° Down (±2°). Engine benchmarks include a compression check and magneto timing to maintain the 1500-hour recommended time between overhauls (TBO) for the Continental O-470 and IO-520 series powerplants.

Visual Navigation Aids & System Architecture

The manual utilizes high-resolution technical illustrations to guide complex mechanical procedures:

• Structural Station Diagrams: Detailed fuselage and wing reference stations for precise equipment location.
• Control System Schematics: Comprehensive routing for aileron, flap, elevator, and rudder cable systems.
• Landing Gear Details: Explosive views of main gear spring struts, tailwheel steering mechanisms, and castering axle assemblies.
• Electrical Interconnects: Extensive wiring diagrams (Section 19) for troubleshooting avionics and power distribution.

Table of Contents: Primary Technical Sections

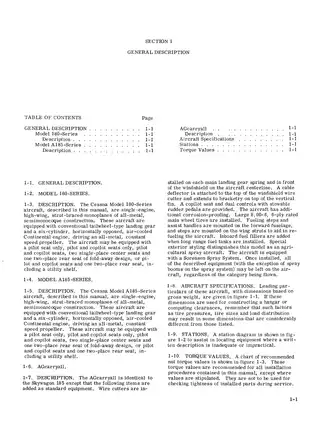

• Section 1: General Description & Leading Particulars
• Section 2: Ground Handling, Servicing, Lubrication, & Inspection
• Section 3: Fuselage, Seats, & Upholstery
• Section 4: Wings and Empennage Architecture
• Section 5: Landing Gear and Hydraulic Brake Systems
• Section 6: Aileron Control System Rigging
• Section 7: Wing Flap Control System Mechanics
• Section 8-10: Elevator, Rudder, and Stabilizer Trim Systems
• Section 11/11A: Engine Maintenance (O-470 & IO-520)
• Section 12: Fuel System Servicing & Drains
• Section 13-16: Propellers, Utility Systems, Instruments, & Electrical
• Section 17-20: Structural Repair, Painting, Wiring, & Dispersal Systems

Operational Limits & Fluid Specifications

Maintenance personnel must adhere to the following fluid and torque requirements:

• Fuel Requirements: Minimum 80/87 Aviation grade for O-470 series; 100/130 Aviation Grade for IO-520 series.
• Engine Lubrication: Ashless dispersant oil conforming to Continental MHS-24; SAE 50 for temperatures above 40°F and SAE 30 for temperatures below 40°F.
• Hydraulic Systems: Spec No. MIL-H-5606 fluid for brake master cylinders and castering axle units.
• Critical Torques: Main gear wheel thru-bolts require 150 lb-in (Cleveland) or 90-100 lb-in (McCauley) depending on the rim manufacturer.

Does this manual cover the specific serial ranges for the 1973 through 1976 Cessna 180J models? Yes, this documentation specifically applies to the 180J series starting at serial 18052285 and continues through 18052620, as well as serials 18052621 and on. It also encompasses the A185F Skywagon and AGcarryall models within the 1969 to 1976 year range, ensuring that specific airframe and powerplant configurations for these production years are fully documented.

What are the precise torque requirements for the main landing gear wheel assembly? The manual specifies that for Cleveland wheel assemblies, the thru-bolts must be torqued to 150 lb-in. If the aircraft is equipped with McCauley wheel assemblies, the required torque setting is lower, ranging between 90 and 100 lb-in. Adhering to these specific factory benchmarks is critical for maintaining the structural integrity of the landing gear during high-stress ground operations.

Can I find detailed schematics for the aircraft's electrical and avionics systems? This service manual includes a dedicated Section 19 specifically for Electrical Systems, featuring comprehensive wiring diagrams and interconnect schematics. These visual aids cover the power distribution, lighting, and avionics circuits, allowing technicians to trace wires and identify connector pin-outs for effective troubleshooting and repair of the 28-volt electrical architecture.

Is it possible to find specific rigging procedures for the aileron control system in this manual? Section 6 provides exact technical instructions for rigging the aileron controls, including the requirement for a carry-thru cable tension of 40 lbs (plus or minus 10 lbs). The manual also defines the specific travel limits for the ailerons, which must be set to 20 degrees up and 14 degrees down, ensuring the aircraft maintains balanced flight characteristics and manufacturer-specified roll rates.

What technical utility does this digital service manual provide for urgent field repairs? The digital format provides instant utility by allowing maintenance crews to immediately access the 396-page document and search for specific keywords like "fuel strainer" or "brake bleeding." Technicians can print high-resolution copies of essential pages, such as the lubrication charts in Section 2 or the structural repair diagrams in Section 17, ensuring that oily hands or field conditions do not damage the master reference while performing critical maintenance.
