1968–1977 Cessna 177, 177A & 177B Cardinal and Cardinal II Aircraft Service & Repair Manual (D841C6-13)

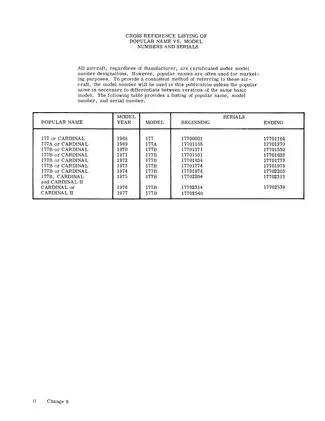

Cessna’s 1968–1977 177 and Cardinal Series Service Manual covers the fixed-gear 177, 177A, and 177B, including Cardinal II configurations. The title page carries cover code D841C6-13 and Change 6, dated July 1, 1976. The file also contains later exterior painting revisions.

• Inspections and servicing: Ground handling, scheduled and progressive care inspection charts, lubrication, vacuum filter replacement, storage preparation, and wheel bearing cleaning and repacking.

• Landing gear and brakes: Standard and heavy-duty nose gear service, shimmy dampener overhaul, Cleveland and McCauley wheel procedures, brake master cylinder repair, and system bleeding.

• Flight controls: Aileron, wing flap, stabilator, stabilator trim, rudder, and rudder trim troubleshooting, component replacement, cable adjustment, and rigging procedures.

• Engine and propeller installation: Engine removal and installation, ignition timing, engine control rigging, fixed-pitch and constant-speed propeller installation, and governor adjustment.

• Fuel system: Vent checks, integral fuel bay leak classification, sealing and testing, selector and shut-off valve service, and auxiliary pump disassembly.

• Instruments and electrical systems: Pitot-static leakage tests, vacuum system diagnosis, fuel quantity transmitter calibration, charging system troubleshooting, lighting circuits, and wiring diagrams.

• Airframe repair: Windshield and window work, door and seat installation, wing and empennage removal, structural repair drawings, control surface balancing, and painting procedures.

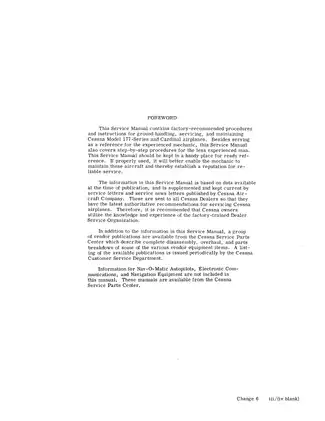

Written for mechanics, the manual combines reference information for experienced personnel with step-by-step procedures for those with less experience.

Aircraft Inspections and Flight Control Rigging

The inspection material separates routine checks, annual inspections, progressive care, and special inspection items. Lubrication charts identify service points, lubricant specifications, and intervals. Ground handling coverage includes towing, hoisting, jacking, leveling, and storage.

The jacking cautions explain how tubular gear flex can move a main wheel inward and tilt an individual strut jack, destabilizing the aircraft.

Control system differences: Flap maintenance and rigging distinguish original actuators, service-kit modifications, and later installations. These distinctions help mechanics select procedures that match the installed hardware rather than relying on model appearance alone.

The Aileron-Rudder Interconnect System drawing and Flap System Schematic support adjustment work. Stabilator trim coverage includes actuator inspection and free-play checks. The manual also explains how rudder, rudder trim, and nosewheel steering adjustments affect one another, and identifies the SE-716 inclinometer for checking control surface travel.

Nose Gear, Wheels, and Hydraulic Brakes

The landing gear section provides separate wheel disassembly and reassembly information for Cleveland and McCauley assemblies, with wheel alignment views and component-specific fastener torque data.

Nose gear coverage extends through shock strut inspection, seal replacement, torque links, steering adjustment, and shimmy dampener repair. Brake troubleshooting distinguishes dragging brakes from loss of braking, with master cylinder inspection, Lock-O-Seal adjustment, lining replacement, and pressure bleeding procedures.

Engine Installation, Fuel Bays, and Propeller Controls

Engine troubleshooting addresses starting problems, rough running, oil pressure, and oil temperature. Installation work includes mounts, cooling baffles, flexible hose testing, the full-flow oil filter, and oil cooler. Ignition information distinguishes sealed Slick magnetos from Bendix S-1200 and D-2000 units.

Overhaul scope: Engine removal, installation, and installed-system service are covered. Internal engine overhaul and carburetor overhaul are referred to the respective manufacturers’ publications.

The fuel section separates the original vent arrangement from the later cross-vented installation. The Fuel System Schematic, leak classification illustrations, and fuel bay sealing drawings support diagnosis and repair of the integral wing tanks.

Propeller coverage distinguishes fixed-pitch and constant-speed installations, with governor troubleshooting, control rigging, and high-RPM stop adjustment. Cabin heating, defrosting, and ventilation sections address ducting, valves, controls, and exhaust-related faults.

Instrument Diagnosis and Electrical Fault Tracing

Instrument coverage focuses on system troubleshooting and corrective maintenance, including vacuum relief valve adjustment and fuel quantity transmitter calibration. Internal instrument repairs are assigned to instrument specialists.

Electrical coverage includes split-bus operation, battery and external power circuits, alternator regulation, over-voltage protection, lighting, and electrical load analysis. Section 20 provides circuit drawings such as the Battery Circuit, with wire codes, equipment tables, and serial-specific details.

Nav-O-Matic autopilot, electronic communications, and navigation equipment manuals are separate publications. The included wing leveler material covers its own control system and rigging.

Fuselage, Structural Repair, and Paint Revisions

Fuselage procedures address temporary acrylic window repairs, windshield replacement, cabin upholstery, seat installation, and door adjustment. For bonded cabin doors beginning with Serial 17701634, the manual warns that reforming the flange can cause material separation.

Structural coverage includes skin patches, stringers, ribs, spars, firewall repairs, reference station drawings, and Control Surface Balancing illustrations. Factory approval requirements remain identified for restricted structural repair areas.

The exterior painting section contains Change 7 material and Temporary Change 1 dated November 4, 1977. It distinguishes earlier finishes from the modified urethane system beginning with Serial 17702673.

Aircraft maintenance requires strict adherence to the applicable factory tolerances and safety procedures.

Examples of Brake Inspection Limits

Two examples from the brake chapter show a small selection of the inspection data provided. For the Cleveland wheel brake assembly illustrated in Figure 5-4, the manual specifies a minimum brake disc thickness of 0.190 inch.

The associated lining inspection gives 3/32 inch as the replacement threshold. These limits accompany the brake inspection and lining replacement material.

Printable PDF, Navigation, and Page Breakdown

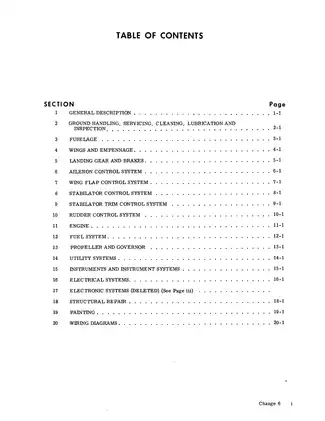

Text search and wiring detail: PDF text search and embedded bookmarks are not available. The printed contents and section numbering provide reference points, while small wiring labels and connector details require zooming.

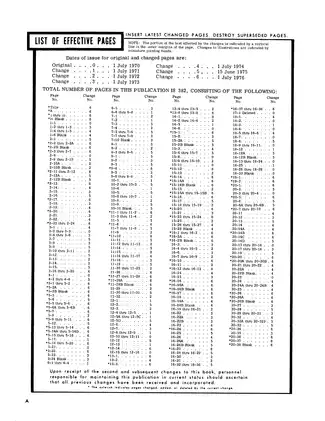

The download contains one printable 388-page PDF: six front matter pages and 382 pages of manual sections. The total already includes 24 marked blank pages and the six-page exterior painting section with its later revision material.
