1971–1975 Cessna 177RG Cardinal RG Aircraft Service Manual (P/N D991-13)

Cessna service manual D991-13 covers the 1971–1975 Cessna 177RG and Reims/Cessna F177RG Cardinal RG series, including the Cardinal RG II. It incorporates Changes 1, 2, and 3 and carries cover identifier D991-3-13-RPC-200-7/79.

Supplied as a 414-page PDF in English.

• Landing gear hydraulics: Retraction troubleshooting, power-pack disassembly and functional testing, main and nose gear actuator repair, emergency hand-pump service, and rigging by serial range.

• Wheels and brakes: Cleveland and McCauley wheel service, wheel alignment, shimmy dampener servicing, brake master-cylinder repair, and brake bleeding.

• Flight controls: Aileron, wing flap, stabilator, stabilator trim, rudder, and rudder trim troubleshooting, component removal and installation, and rigging.

• Engine and propeller: Engine removal and installation, fuel-injection service, magneto timing, starting-system diagnosis, and propeller/governor removal and control adjustment.

• Fuel and airframe: Integral fuel-bay leak testing and resealing, fuel-selector service, structural repair criteria, wing repair, and control-surface balancing.

• Electrical and instruments: Alternator and voltage-regulator diagnosis, pitot-static leak tests, vacuum-system troubleshooting, fuel-quantity transmitter calibration, and system wiring diagrams.

Written for aircraft mechanics, this manual provides reference material for experienced mechanics and step-by-step procedures for those with less experience.

Landing Gear Configurations and Repair

Power-pack testing changes at 177RG0433 and F177RG0093, alongside the later pedestal-mounted gear selector and lock-valve arrangement. The Hydraulic System drawings and Power Pack Functional Test Schematics distinguish these configurations, helping mechanics select the correct test setup before investigating a retraction fault.

Test-equipment lists specify pressure gauges, flow-measuring equipment, and restrictor assemblies. Separate rigging sections cover successive main-gear configurations, while Main Wheel Alignment drawings show the shim arrangements.

Engine, Fuel and Propeller Systems

Engine data distinguish the Lycoming IO-360-A1B6 and IO-360-A1B6D, with separate procedures for Bendix S-1200 and D-2000 magnetos. Bendix RSA-5AD1 injection coverage addresses the servo regulator, flow divider, and air-bleed nozzles.

The fuel section separates the earlier single-reservoir, ON-OFF valve layout from the twin-reservoir system with a four-position selector, beginning at 177RG0283 and F177RG0063. Fuel-bay testing cautions explain how excessive test pressure can damage the integral tanks.

Overhaul scope: Complete engine, accessory, propeller, and governor overhaul is referred to separate manufacturer publications. This manual covers their aircraft installation, troubleshooting, and service procedures.

Airframe, Flight Controls and Routine Maintenance

Ground-handling procedures cover towing, hoisting, jacking, leveling, and storage, including temporary and indefinite preservation. Jacking Details and Reference Stations drawings support the handling and component-location information. Lubrication and inspection charts set out scheduled checks for the engine, fuel system, landing gear, and flight controls.

The fuselage, wing, and empennage sections cover component removal, inspection, and repair, including cabin doors. Structural repair drawings address skins, stringers, ribs, and spars, with control-surface balancing fixtures and stated limits on repairs requiring factory approval.

The cabin-door instructions explain how forming the edges of bonded doors can separate the bonded material.

Electrical, Instrument and Utility Systems

Electrical troubleshooting extends to split-bus power, battery contactors, exterior and panel lighting, and the stall/gear warning unit. Gear Warning System wiring drawings include connector references, wire tables, and configuration changes.

Instrument-system work includes vacuum-relief adjustment and optional wing-leveler rigging; wing-leveler troubleshooting is referred to the manufacturer's separate publication. Utility-system coverage addresses cabin heating, defrosting, and ventilation.

Coverage limits: Internal instrument repair, Nav-O-Matic autopilots, electronic communications, and navigation equipment are outside this manual's scope.

Specification and Reference Data

Wheel torque tables distinguish Cleveland wheels and McCauley aluminum- and steel-flange wheels. Steel-nut torque charts provide standard and alternate fine-thread values and coarse-thread values.

Other reference data cover control-surface travel, engine-oil grades by temperature, fluid capacities, inspection limits, system tolerances, and hydraulic and electrical test specifications.

Check procedures against current Cessna service information and applicable aviation requirements before landing-gear, flight-control, or structural work.

File Format and Readability

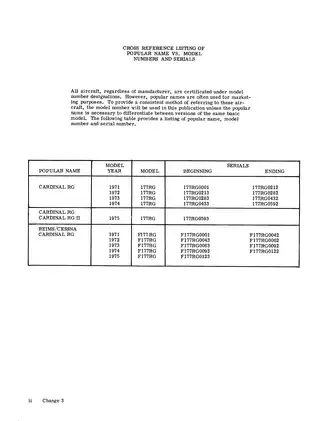

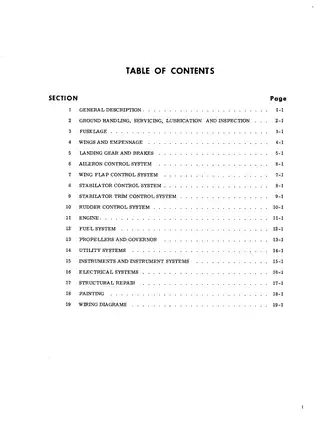

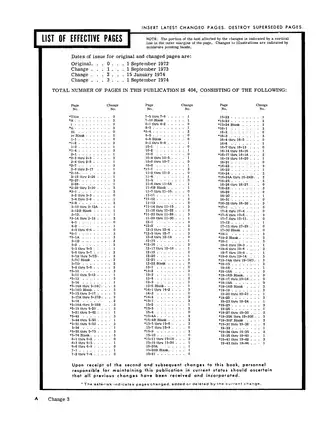

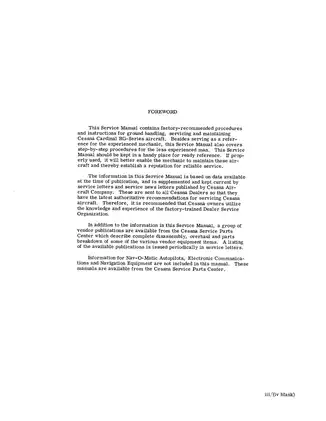

The total includes five front-matter pages—the cover, effective-page list, contents, model/serial cross-reference, and foreword—and 18 blank placeholder pages. Revision pages are incorporated within the manual.

Text search and navigation: The PDF has no embedded searchable text or bookmarks.

Wiring readability: Small wire codes and terminal labels require zooming. Some markings in the gear-warning drawings remain partly degraded.
