2005 Yamaha YFM700RV Raptor 700 ATV Service & Repair Manual (P/N LIT-11616-19-13)

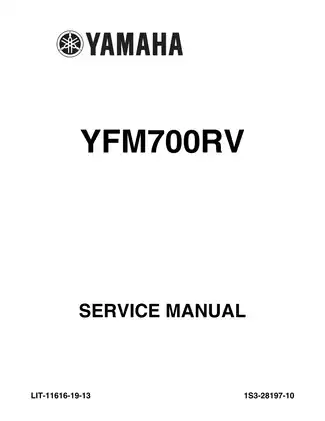

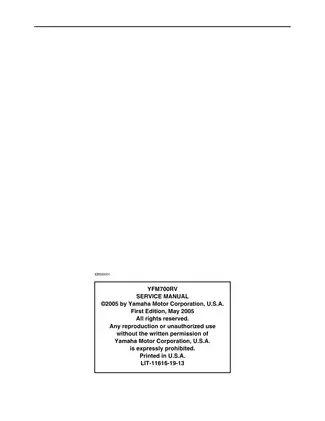

This Yamaha service manual covers the 2005 YFM700RV Raptor 700 ATV, with maintenance, diagnosis, and internal engine repair procedures. It is the First Edition, May 2005, publication LIT-11616-19-13, with the additional reference 1S3-28197-10 printed on the cover.

• Engine and lubrication: Engine removal, cylinder-head and valve service, piston inspection, crankshaft work, oil-pump checks, and crankcase separation.

• Clutch and transmission: Wet-clutch disassembly and inspection, gearshaft assembly, shift-fork and shift-drum checks, and transmission installation.

• Fuel injection: ECU self-diagnostics, sensor and actuator tests, fuel-pressure checks, throttle-body inspection, and throttle position sensor adjustment.

• Cooling system: Radiator-cap pressure testing, thermostat checks, coolant replacement, and water-pump disassembly and reassembly.

• Brakes and chassis: Hydraulic brake bleeding, master-cylinder and caliper repair, parking-brake service, steering-knuckle removal, rear-axle inspection, and suspension adjustments.

• Electrical troubleshooting: Ignition, starting-interlock, charging, lighting, signaling, and cooling-fan circuit checks, supported by wiring diagrams and factory test specifications.

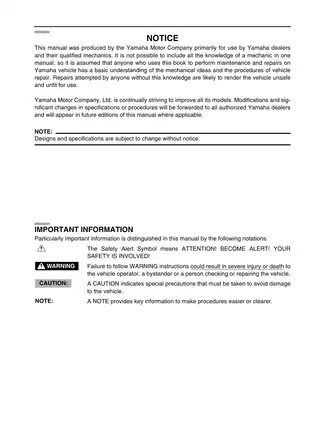

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a basic understanding of vehicle repair. Its diagnostic and assembly procedures also call for the specified test equipment and special tools.

Engine, Clutch, and Transmission Repair

The engine chapter goes beyond routine maintenance into camshaft and rocker-arm inspection, valve-guide and seat work, piston and ring measurements, and crankshaft installation. Component-specific torque tables and wear limits support the inspection and assembly procedures.

Clutch coverage distinguishes the friction plates, steel plates, springs, housing, and release components. Transmission sections show the main, drive, and counter axle assemblies, shift-fork identification, drum inspection, and shift-operation checks before crankcase closure.

ECU Fault Isolation and Fuel-System Testing

The ECU self-diagnostic function table identifies fault codes, symptoms, and whether starting or driving remains possible. Separate sensor and actuator operation tables support fault isolation. The troubleshooting chart also addresses abnormal engine operation without an illuminated engine trouble warning light.

The procedures use the Yamaha FI diagnostic tool YU-03182 / 90890-03182. Fuel-pump pressure testing and TPS resistance and output-voltage checks provide separate ways to investigate fuel-supply and sensor faults before selecting a replacement component.

Cooling-System Inspection and Water-Pump Service

Radiator checks cover cap pressure, hoses, and fan condition. The thermostat section includes opening-temperature testing and installation orientation, while water-pump procedures distinguish the housing, impeller, bearing, oil seal, and mechanical seal.

The water-pump assembly instructions warn against oil or grease on the seal face, where contamination can compromise sealing.

Brake Service, Steering, and Suspension

Rear-caliper assembly illustrations identify piston and parking-brake shaft alignment, alongside the explanation of the self-adjusting parking-brake mechanism. The caliper inspection section warns that solvent cleaning can swell and distort internal brake seals.

Steering and suspension work extends to tie-rods, ball joints, front arms, swingarm bearings, and relay-arm linkage. Front spring preload and rear preload, rebound, and compression adjustments are documented.

The nitrogen-charged rear shock and gas cylinder must not be opened or modified. Always verify your shop setup and review factory safety precautions before working on fuel lines, brakes, or pressurized suspension components.

Electrical Tests and Assembly References

Electrical fault-finding includes A.C. magneto and rectifier/regulator testing, starter-motor inspection, and starting circuit cut-off operation. The Fuel Injection System and Electric Starting System circuit diagrams show the relevant circuits and connector arrangements.

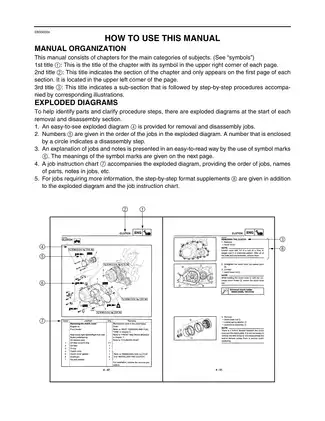

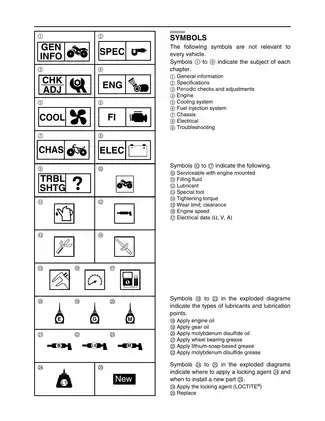

Coolant Flow Diagrams, Oil Flow Diagrams, and Cable Routing illustrations support reassembly. Exploded views are paired with job instruction charts identifying parts and the work associated with each assembly.

Examples of Adjustment, Capacity, and Fastener Data

The following examples represent a small selection of the manual’s service specifications.

Intake valve clearance is specified at 0.09–0.13 mm with the engine cold, at room temperature. The cooling specifications list a coolant reservoir capacity of 0.25 L up to the maximum level mark.

The primary drive gear nut specification is 110 Nm, with molybdenum disulfide grease specified for the crankshaft and nut threads. The assembly instructions distinguish this nut from the adjacent balancer gear fasteners.

Searchable PDF, Bookmarks, and Page Count

Text search and diagram detail: The PDF includes searchable text and 80 embedded bookmarks for chapters, major sections, and the wiring diagram. Small wiring and connector labels require zooming for comfortable reading.

Supplied as one printable English PDF with 402 pages, including 16 pages of original front matter, the two-page wiring diagram and legend, and the rear cover.
