Yamaha YFM45FXV Wolverine 450 2005–2006 ATV Service Manual Set (P/N LIT-11616-19-42)
484 Pages • Printable PDF • 21.05 MB • Download
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: YFM45FXV Wolverine 450 (3C21 — USA, 3C22 — CDN, 3C23 — Europe)
Model Years: 2005–2006
-
Engine: Liquid-cooled 4-stroke, SOHC, forward-inclined single cylinder
-
Displacement: 421 cm³
-
Transmission: V-belt automatic with shaft drive
-
Compression Pressure: 1,270 kPa (181 psi) at 700 r/min
-
Spark Plug Gap: 0.6–0.7 mm
-
Intake Valve Clearance: 0.06–0.10 mm
-
Tire Pressure (off-road): 37–43 kPa (5.3–6.1 psi)
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

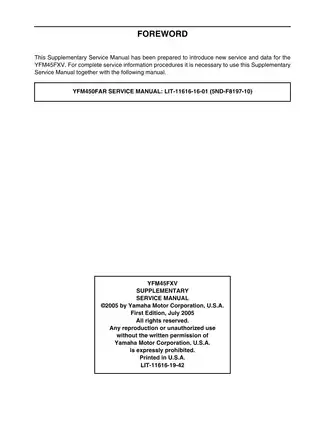

| YFM45FXV Supplementary Service Manual — Wolverine 450 ATV; model codes 3C21 (USA), 3C22 (CDN), and 3C23 (Europe). P/N LIT-11616-19-42 / 3C2-F8197-10. First Edition, July 2005. | 111 |
| YFM450FAR Service Manual — included base manual; model codes 5ND1 and 5ND5. P/N LIT-11616-16-01 / 5ND-F8197-10. First Edition, March 2002. | 373 |
Yamaha specifies using the supplement with the included base manual for complete service procedures. Together, they support planned maintenance and deeper repair work while keeping model-specific changes separate from the underlying Yamaha procedures.
For YFM45FXV repairs, follow the supplement’s transmission, differential, and electrical data where it differs from the YFM450FAR baseline. The base manual’s high/low-range and differential-lock sections describe the YFM450FAR configuration.
Search, Bookmarks, and Wiring Detail
Navigation and small labels: Searchable text and embedded PDF bookmarks cover both publications. Small wire-color codes and connector labels require zooming in dense circuit diagrams.
Both publications are supplied in one printable, English-language 484-page PDF, including four cover pages and one blank page. Preliminary pages and the wiring sheets are already included in the publication totals above.
Engine, Shaft-Drive, and Electrical Service
The following selected service topics show the repair coverage; additional subjects include spark-arrester cleaning and headlight-beam adjustment.
-
Engine repair: Step-by-step engine removal and installation, cylinder-head and timing-chain service, plus camshaft, valve, piston, crankshaft, and oil-pump inspection.
-
Automatic transmission: Primary and secondary sheave disassembly, clutch repair, transmission inspection, and middle-drive and middle-driven-shaft service.
-
Shaft drive: Front constant-velocity joint and differential service, gear-lash measurement and adjustment, rear-axle removal, and final-drive repair.
-
Brakes and chassis: Pad replacement, master-cylinder and caliper service, hydraulic bleeding, steering-knuckle and ball-joint work, wheel hubs, front arms, shocks, and swingarm.
-
Carburetion: Carburetor removal, disassembly, cleaning, and inspection, with float-height, fuel-level, starter-cable, and idle-speed adjustments.
-
Cooling system: Radiator removal and cap-pressure checks, thermostat testing, water-pump teardown, seal replacement, and coolant service.
-
Electrical diagnosis: Circuit diagrams and troubleshooting for ignition, starting, charging, lighting, signaling, cooling-fan operation, and the On-Command 2WD/4WD gear motor.

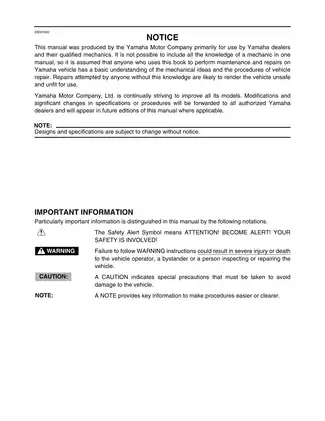

Yamaha wrote these manuals primarily for its dealers and qualified mechanics, assuming a basic understanding of vehicle repair.
Internal Engine and Sheave Work

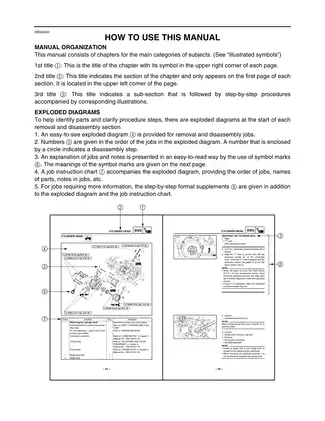

Removal and disassembly sections use exploded views, job instruction charts, torque callouts, lubricant symbols, and replacement-part markings. Additional step-by-step pages explain work requiring more detail.
Internal inspection includes cylinder-bore and piston-skirt measurements, crankshaft runout, and oil-pump rotor clearances. The A.C. magneto cover installation notes identify an oil seal that can be damaged during fitting.
Tool references include the YM-01404 / 90890-01404 flywheel puller and YU-01135-A / 90890-01135 crankcase separating tool. Secondary-sheave work uses the YM-04134 / 90890-04134 sheave spring compressor.
Differential and Final-Drive Setup
Shim-selection charts, gear-positioning calculations, preload checks, and thrust-clearance measurements support shaft-drive repair. The supplement specifies the YM-01475 / 90890-01475 gear-lash measurement tool.
The factory-assembled differential gear unit must not be opened internally because disassembly can cause malfunction; forcing the temporary lash-check holding bolt can also damage the ring gear.
Brake Controls and Chassis Adjustments
The supplement connects rear-brake lever and pedal adjustment with select-lever control-cable and shift-rod checks. Chassis references include brake-disc inspection, steering-stem fastening, wheel-bearing checks, and suspension adjustment.
Support the ATV securely on a level surface before wheel, brake, steering, or suspension repair, and follow the manual’s brake-fluid and battery-disconnection cautions.
Carburetor Inspection
The carburetor pages distinguish checks for jets, the needle valve, diaphragms, and piston-valve movement. Float-height and fuel-level measurement procedures accompany the assembly instructions, while the supplement supplies the model-specific carburetor settings.
Cooling and Lubrication References
The supplement updates radiator and coolant-reservoir specifications; the base manual provides thermostat and water-pump repair procedures. Coolant Flow Diagrams and Oil Flow Diagrams show the circulation paths.
Fluid tables distinguish routine engine-oil changes, filter replacement, and total capacity, with separate cooling-system and differential-oil quantities.
Circuit-Based Fault Finding
The Electric Starting System Circuit Diagram and 2WD/4WD Selecting System Circuit Diagram are accompanied by Cable Routing and the YFM45FXV 2006 Wiring Diagram.
The supplement identifies the Mitsubishi F4T46472 magneto and F8T40377 CDI unit, with associated electrical test data. Lighting and 2WD/4WD troubleshooting reference the YU-03112-C / 90890-03112 pocket tester for continuity and circuit checks.
Maintenance Planning
Periodic service charts use month, mileage, and hour intervals for emission-control checks and general maintenance. They cover coolant replacement, differential-oil changes, and air-filter service, with shorter air-filter intervals in wet or dusty conditions.
Transmission Ratio and Differential-Lash Preview
For the YFM45FXV, the transmission table lists a 2.55–0.75:1 automatic ratio range, a 1.652 sub-transmission ratio, and a 1.706 reverse ratio.
The supplement’s differential service section specifies 0.10–0.50 mm gear lash, supported by measurement illustrations and shim-selection guidance.
