Yamaha YBR125ED 2005 Service Manual (P/N 3D9-F8197-E0)

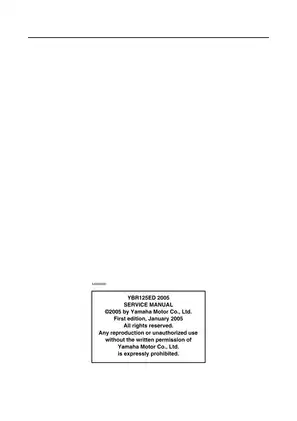

Yamaha’s factory service manual for the 2005 YBR125ED (model code 3D91), P/N 3D9-F8197-E0, covers maintenance, diagnosis, and repair. This is the first edition, published in January 2005.

Searchable Text, Chapter Bookmarks, and Wiring Detail

Search and diagram access: Text search is available in the service chapters, with bookmarks for those chapters and the appended wiring diagrams. Small wiring labels are legible when enlarged; the separate “RETURN” bookmark links to an external file.

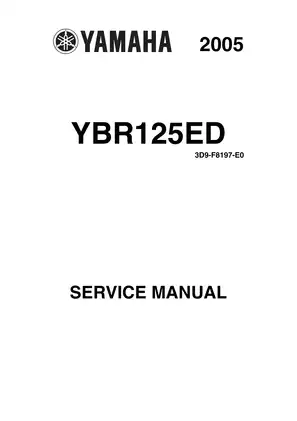

One printable, English-language PDF contains 330 pages: the 328-page service publication, including its original cover, front matter, and rear cover, plus two appended wiring-diagram pages in black-and-white and color. Both appended pages are included in the total.

Engine Overhaul, Chassis Repairs, and Electrical Testing

This selection of service topics highlights the main workshop areas; further procedures include air-filter cleaning and rear shock spring-preload adjustment.

• Routine maintenance: Valve-clearance adjustment, compression testing, engine-oil changes, ignition-timing checks, clutch and throttle cable adjustments, brake bleeding, and headlight aiming.

• Engine repair: Engine removal and installation, cylinder-head disassembly, valve and piston inspection, crankcase separation, and crankshaft and balancer installation.

• Clutch and transmission: Clutch disassembly and inspection, shift-shaft and stopper-lever checks, kickstarter service, and transmission gear, shift-drum, and shift-fork inspection.

• Carburetor and air induction: Mikuni VM22SH removal and disassembly, float-height and fuel-level adjustment, fuel-cock inspection, and air-induction-system checks.

• Brakes and chassis: Wheel-bearing replacement, front disc and rear drum brake service, master-cylinder and caliper overhaul, fork rebuilding, and steering-head and swingarm repair.

• Electrical diagnosis: DC C.D.I. ignition tests, electric-starting and charging-system diagnosis, lighting and signaling checks, carburetor-heater testing, and wiring diagrams.

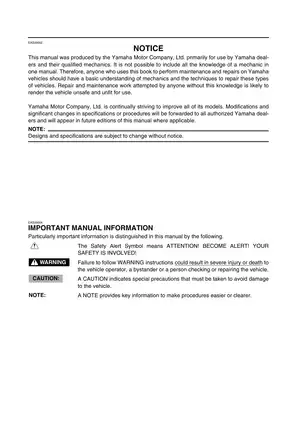

Written primarily for Yamaha dealers and qualified mechanics, the manual assumes a basic understanding of mechanics and motorcycle repair techniques.

Maintenance Intervals and Repair Planning

The schedule starts with the 1,000 km service, follows a 6,000 km interval pattern through 24,000 km, and includes annual checks. From 30,000 km, the cycle repeats from the 6,000 km interval.

The DID428V2 O-ring chain has a 1,000 km service interval, with additional attention after washing or riding in rain. Steering-head and swingarm lubrication intervals appear alongside replacement schedules for brake fluid, master-cylinder/caliper internals, and hoses.

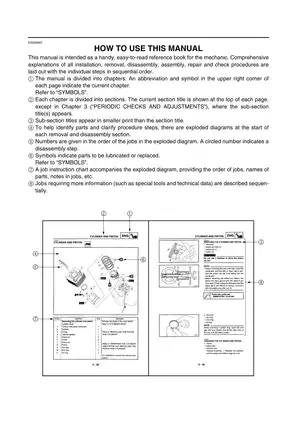

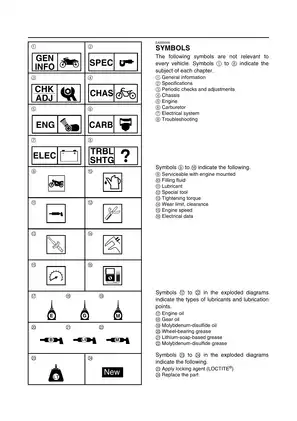

Exploded views and job charts identify replacement items, lubrication points, tightening torques, and special-tool requirements, so a mechanic can plan parts and tooling before disassembly.

Valve Train, Lubrication, and Internal Engine Work

Cylinder-head procedures extend to rocker arms and camshaft, valves and valve springs, valve guides and seats, and camshaft timing. Cylinder and piston checks include ring clearances and piston-pin inspection.

Oil-pump repair covers rotor-clearance checks, the oil strainer, and rotary filter. Starting-drive work includes the starter clutch and A.C. magneto rotor; transmission procedures detail main- and drive-axle assembly and gear-engagement checks.

Tool references include crankcase separator 90890-01135 / YU-01135-B and flywheel puller 90890-01362 / YU-33270-B. Component torque tables include the A.C. magneto rotor nut, while Lubrication Diagrams trace the engine’s oil distribution.

Carburetor Components and Emissions Controls

Step-by-step carburetor procedures include needle-valve and valve-seat inspection, jet checks, and coasting-enricher diaphragm inspection. Idle-speed and exhaust-gas adjustment procedures distinguish operation with the air-induction system on or off.

Air Induction System Diagrams explain the secondary-air layout, with checks for the air cut-off valve, hoses, and pipes.

Brake, Fork, and Final-Drive Service

Wheel sections cover front and rear wheel removal, rear sprocket replacement, and brake-shoe-plate assembly. Chassis inspection data covers chain slack and 15-link wear limits, brake-disc thickness and deflection, pad wear, and rear-drum diameter.

Step-by-step front-fork procedures include oil- and dust-seal replacement, damper-rod inspection, and oil-level setting with 10W fork oil.

Rear shock coverage addresses removal, inspection, and installation of the assemblies. Swingarm service includes bushing-to-spacer clearance and shim adjustment; steering-head procedures cover bearings and races.

Fork seal driver attachment 90890-01400 and steering nut wrench 90890-01403 / YU-33975 are identified. Brake sections specify DOT 3 or 4 fluid and warn that solvents can swell piston seals; wheel-bearing instructions address damage from force applied to the inner race or balls.

O-ring-chain cautions explain how high-pressure cleaning, steam, gasoline or benzine-type solvents, and coarse brushes can damage seals or force contamination inside.

Circuit Diagnosis and Symptom-Based Troubleshooting

The electrical chapter covers the starting circuit cut-off system and starter-motor disassembly, inspection, and reassembly. Tests address spark gap, ignition- and pickup-coil resistance, switch continuity, charging voltage, A.C. magneto output, regulated voltage, and carburetor-heater resistance.

System-specific fault trees help distinguish component faults from wiring problems before replacement parts are selected. Pocket tester 90890-03112 / YU-03112-C and ignition checker 90890-06754 / YM-34487 are referenced for the tests.

Ignition- and charging-system Circuit Diagrams, Cable Routing drawings, and the YBR125ED 2005 Wiring Diagram provide component identification and wire-color codes.

Battery charging and fuse testing are covered for the 12 V system. Safety notes address sulfuric-acid electrolyte and explosive hydrogen gas.

Chapter 8 links symptoms to the relevant repair sections: starting failures, incorrect idle, poor medium/high-speed performance, difficult shifting or jumping out of gear, clutch slip/drag, overheating, poor braking, front-fork faults, unstable handling, and lighting/signaling problems. It is a basic troubleshooting guide rather than an exhaustive list of causes.

Examples of Valve Clearances and Oil Quantities

The valve-clearance section specifies cold settings of 0.08–0.12 mm for the intake and 0.10–0.14 mm for the exhaust, alongside the adjustment procedures.

For the wet-sump lubrication system, the engine-oil specifications distinguish 1.00 L for a periodic oil change from 1.20 L total capacity.
