Ford Escape Hybrid 2005–2008 Repair & Owner’s Manual Set

The Owner’s Guides explain vehicle operation and routine care. The service sections add component repair and fault isolation, supported by wiring diagrams, connector information, and electrical component locations.

Section-specific coverage: Workshop headings identify 2005, 2006, or 2007 applications. Several files also include conventional Escape/Mariner configurations; match the year, engine, and Hybrid or Except Hybrid designation before selecting a procedure.

PDF Search, Bookmarks and Included Pages

Search and navigation: Twenty PDFs contain searchable text. In 2007 wiring.pdf, text search is largely limited to headings and figure captions; the other 35 PDFs do not provide text search. Embedded bookmarks are present in both Owner’s Guides. Small wiring labels require zooming.

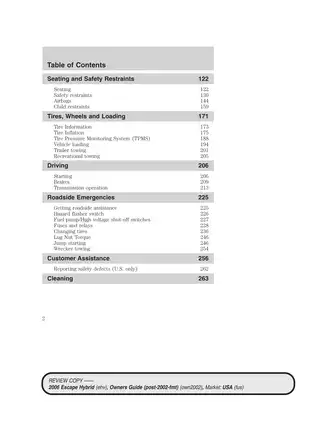

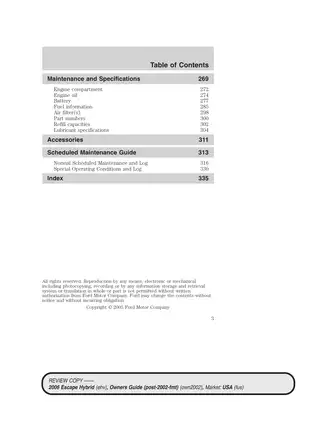

The ZIP download contains 56 printable PDFs totaling 4,382 pages, including 185 pages containing only document headers. Contents pages, indexes, reference lists, and other internal continuation pages are already included in the individual page counts above.

Hybrid Diagnosis, Engine Repair and Electrical Systems

The following highlights are a selection of the included content. Further sections cover subjects such as door-lock diagnosis and roof-opening-panel adjustment.

• Hybrid fault isolation: PCM/TCM self-tests, DTC descriptions, no-code symptom charts, PID recording, and pinpoint tests for engine, motor, generator, and control-circuit faults.

• High-voltage systems: Battery depowering, traction-battery and cable replacement, cooling-fan diagnosis, isolation-fault testing, and DC/DC converter checks.

• Engine repair: Step-by-step procedures for engine removal, disassembly and assembly, cylinder-head work, timing components, valve-clearance checks, and lubrication-system service.

• eCVT and cooling: Transaxle removal and installation, differential seals, selector-cable adjustment, fluid service, and motor electronics cooling-system testing and filling.

• Brakes and chassis: Hybrid rear brake-pad, caliper, and disc procedures, suspension and wheel-bearing replacement, steering-gear service, and intelligent 4WD fault diagnosis.

• Electrical and restraints: System wiring diagrams, component-location views, fuse and relay identification, instrument-cluster tests, and supplemental-restraint-system diagnosis.

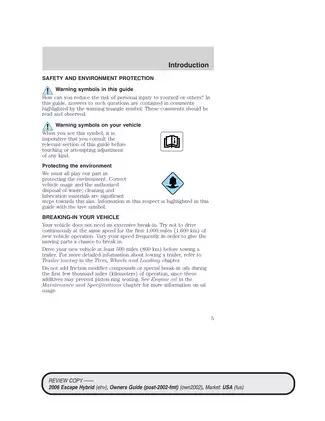

• Owner operation and maintenance: Hybrid displays, navigation, safety systems, roadside procedures, fluid specifications, filter replacement, and normal and special-use maintenance schedules.

The repair sections suit technicians with scan-tool and hybrid-service experience, while the Owner’s Guides provide operating and routine-care information for drivers and owners.

Hybrid Fault Isolation and Battery Service

The diagnostic material connects symptoms and trouble codes with specific circuit tests rather than stopping at code definitions. It covers concerns such as an immobilized vehicle, high-voltage interlock faults, motor or generator shutdown, and intermittent signal problems.

The Diagnostic Methods section explains freeze-frame information, PCM/TCM self-tests, stored PID playback, keep-alive-memory reset, and module-programming functions. It specifies WDS/VCM or equivalent diagnostic capability; a basic code reader does not provide every function described.

Battery diagnosis distinguishes cooling-fan, contactor, low-charge, and isolation faults. The 2005 battery section also separates jump-start-switch circuits for vehicles built before and after 12/2004, with different connector and pin assignments.

High-voltage service is reserved for trained technicians using the specified depowering procedures and protective equipment. The battery files include buffer-zone guidance, insulating-glove inspection, and battery-system depowering.

Engine, Transaxle and Cooling Repairs

The engine section extends through internal disassembly and assembly, including cylinder-head components, camshafts, timing chains, pistons, and the oil pump. Timing procedures identify special tools such as camshaft alignment plate 303-465.

For owner maintenance, Ford calls for replacing the oil-filter-cap O-ring and the drain-plug O-ring when disturbed. Reusing these seals can cause oil leakage and severe engine damage.

The eCVT material addresses unit replacement and external service, with separate sections for selector controls and motor electronics cooling. The Owner’s Guides specify MERCON ATF and warn against blue MERCON CVT fluid; incorrect fluid, additives, or serious overfilling can damage internal transaxle components.

Engine and motor electronics cooling are treated separately. Related procedures cover leak diagnosis, electric cooling fans, coolant-pump circuits, draining, filling, and bleeding. Fuel and emissions sections add injector, fuel-tank, EGR, PCV, and EVAP service, including leak testing and repair-verification information.

Chassis Repairs and Circuit Tracing

The rear-brake section identifies Hybrid procedures for pads, calipers, and discs. The Owner’s Guides explain Pad Service Mode and reserve brake-system bleeding for an authorized dealer.

Suspension coverage includes struts, springs, hubs, and wheel bearings. Steering information distinguishes conventional hydraulic components from the Hybrid steering gear, while the 4WD section provides indicator, control-module, and coupling-circuit diagnosis.

Hybrid wiring examples include the Engine Performance Circuit, Computer Data Lines Circuit, Anti-lock Brakes Circuit, Electronic Power Steering Circuit, and Power Distribution Circuit. Component-location views and fuse-panel legends help relate those circuits to the vehicle.

Cabin service sections cover climate-control components, audio/navigation diagnosis, seat systems, locks, wipers, and restraint-system components.

Hybrid Displays, Roadside Information and Owner Care

The Energy Flow Screen identifies the engine, generator, battery, motor, and power paths. The Fuel Economy Screen shows instantaneous and average economy with a rolling one-minute graph; vehicles without navigation use related message-center displays.

The guides explain the Ready lamp, Assist/Charge gauge, warning lights and chimes, and messages such as Stop Safely Now, High Motor Temperature, Regen Disabled, and temporary 4WD protection modes. Descriptions of battery-fan sounds, regenerative-brake noises, and generator whine help owners distinguish normal hybrid behavior from a warning condition.

Navigation coverage includes destination entry, route preferences, detours, map scaling, voice guidance, navigation-CD handling, and GPS limitations. Safety information addresses the Personal Safety System, passenger sensing, BeltMinder, child restraints, LATCH, TPMS, and optional side airbags and Safety Canopy.

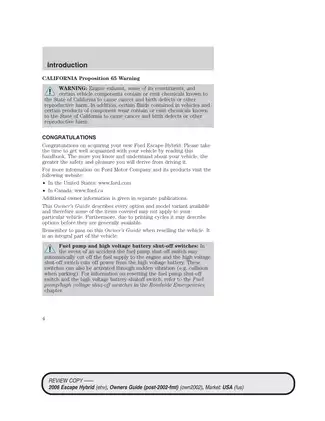

Roadside sections distinguish low-voltage and high-voltage battery jump-starting and cover collision shutoff switches, flat-tire service, fuse and relay panels, and approved wrecker towing. Owner-care sections include engine-air and battery-cooling filters, Motorcraft part references, fluid specifications, and maintenance schedules.

Engine Oil-Pressure and Piston-Clearance Examples

The 2007 engine section lists hot oil pressure at 2,000 rpm as 29–39 psi (200–268 kPa). Its piston-to-bore clearance specification is 0.025–0.045 mm, alongside bore dimensions and piston-size information for internal engine inspection.
