2013 Kia Optima Hybrid G 2.4 HEV Service & Repair Manual

This 1,713-page PDF covers the 2013 Kia Optima Hybrid (TF HEV), G 2.4 HEV configuration. It identifies the Theta-II 2.4-liter gasoline engine and A6MF2H six-speed hybrid automatic transaxle, then extends beyond the hybrid drivetrain into engine, chassis, body, electrical, HVAC, and restraint systems. Because many operations assume GDS/GDS Pro access, high-voltage PPE, insulation-testing equipment, and special service tools, this manual is suited to trained hybrid technicians and experienced, properly equipped repairers rather than first-time DIY work.

• Hybrid control and high-voltage battery: Documents high-voltage shutdown and verification, battery-pack and Power Relay Assembly service, battery current and temperature sensors, cooling-fan work, HPCU/HCU functions, the Low Voltage DC/DC Converter, and power-cable removal and installation.
• Hybrid motor system: Explains the drive motor and Hybrid Starter Generator (HSG), Motor Control Unit service, resolver and motor-temperature sensor data, resolver calibration, and GDS-assisted bleeding of the separate electric-pump cooling circuit.
• A6MF2H transaxle: Takes the technician through transaxle removal and installation, fluid level and replacement work, valve-body service, the ATF warmer, mechanical and electric oil pumps, Oil Pump Unit control, speed and temperature sensors, shift solenoids, the inhibitor switch, and TCM learning.
• Theta-II engine repair: Provides revised timing-chain procedures, cylinder-head removal, disassembly, inspection, reassembly, and installation, plus cylinder-block teardown, balance-shaft and oil-pump work, cooling-system service, and intake and exhaust repair.
• Brakes, steering, suspension, and restraints: Covers Active Hydraulic Boost and ESC diagnosis, brake bleeding and pressure-sensor calibration, EPS Absolute Steering Position calibration, alignment and TPMS service, SRSCM variant coding, and passenger Weight Classification System reset and accuracy checks.
• Body, electrical, and HVAC systems: Extends into body dimensions and panel repair, glass and panoramic-roof service, smart-key teaching, BCM and start-button systems, lighting and instrumentation, VESS, audio/AVN, and the high-voltage electric A/C compressor.

Hybrid Drivetrain Diagnosis and Setup

The transaxle section explains why the Electric Oil Pump supports hydraulic pressure when the gasoline engine and mechanical pump are not operating, how the Oil Pump Unit is commanded through the TCM, and how backup hard wiring supports control if CAN communication fails. Symptom charts connect delayed engagement, vibration, fixed-gear operation, limp-home behavior, and poor acceleration with the relevant clutches, valve body, pumps, speed sensors, harnesses, and control circuits. TCM learning is specified after transaxle or TCM replacement or software upgrading, while stored codes are handled through GDS rather than by disconnecting the battery.

Hybrid-system troubleshooting tracks battery voltage, current, temperature, state of charge, insulation, relays, cooling, and CAN inputs. Separate procedures address the safety plug, main and pre-charge relays, pre-charge resistor, battery sensors, cooling fan, HPCU, LDC, MCU, motor assembly, and power cables.

Diagrams, Tools, and Specification Coverage

Named visual references include the TCM input/control/output diagram, EOP and OPU control circuits, HCU circuit diagram, high-voltage battery fault-detection flow and circuit schematic, ESC schematic, and hybrid motor cooling-system schematic. Component-location views, connector pin assignments, hydraulic flow diagrams, troubleshooting charts, and assembly illustrations support both electrical diagnosis and mechanical repair.

Special-tool tables identify the 09200-38001 engine support fixture, 09452-3D100 transaxle oil-seal installer used with handle 09231-H1100, 09240-2G000 timing-chain tensioner ratchet holder, and 09580-3D100 brake air-bleeding tool. Reference sections supply component-specific torque tables, fluid specifications and capacities, service clearances, inspection and wear limits, electrical values, wheel-alignment data, and body dimensions.

Scope and Hybrid-Specific Cautions

The PDF covers A6MF2H removal, external hydraulic components, controls, operating theory, and diagnostic data, but it does not provide a complete internal transaxle teardown and rebuild chapter. Several code-specific fault paths also refer the technician to a separate DTC Guide.

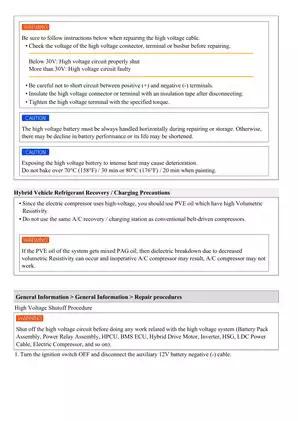

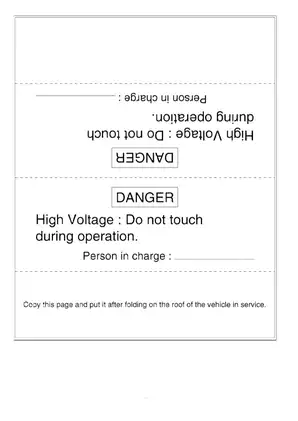

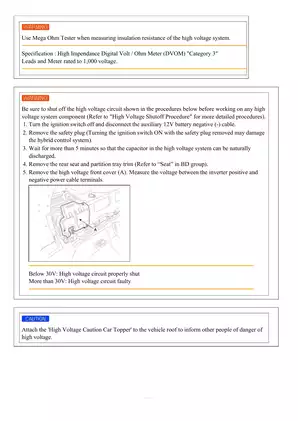

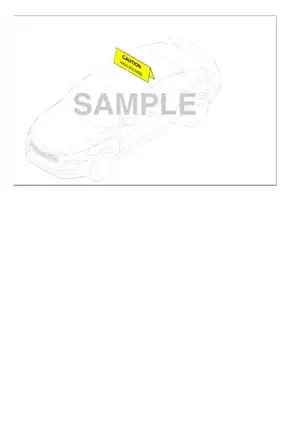

The manual flags two costly hybrid repair traps: the high-voltage battery must remain horizontal during handling and storage to prevent performance or service-life damage, and the electric A/C system requires PVE oil and dedicated recovery/charging equipment because PAG contamination can cause dielectric breakdown and compressor failure. High-voltage repair must follow the manual’s isolation, discharge-verification, PPE, and insulated-tool requirements before any covered component is serviced.
